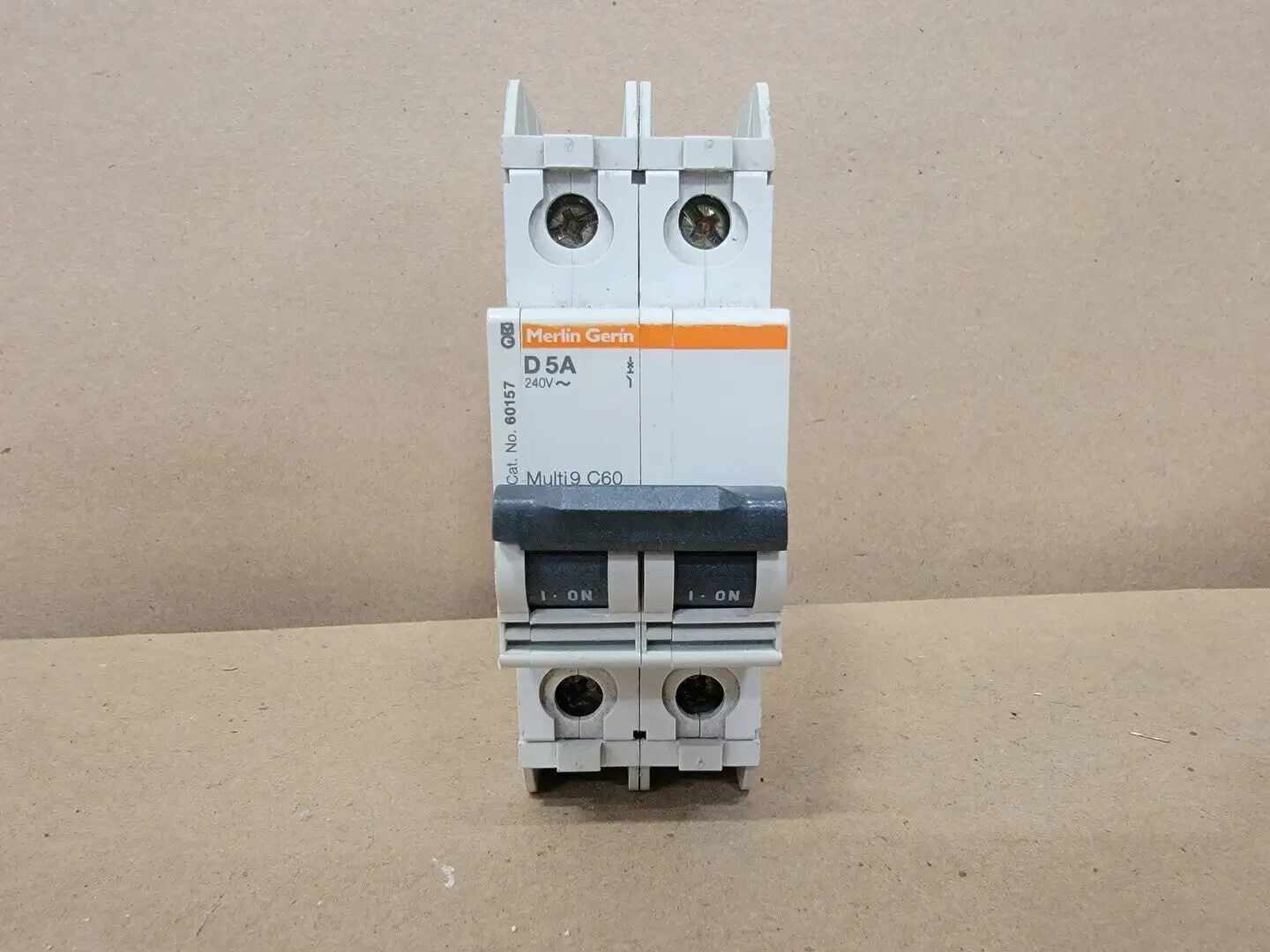

USED MERLIN GERIN MULTI 9 C60 D5A 2P

Amps: 5 amps
# of Poles: 2
Voltage: 240 volts
Phase: Single-phase
Curve Type: D Curve (for high inrush current applications)
Interrupting Capacity:
120V AC: 10 kA (1-pole)
240V AC: 5 kA (1-pole), 10 kA (2-3 pole)
240V AC AIR: 10 kA (1-pole), 20 kA (2-pole)
415V AC: 10 kA (2-3 pole)
Frequency: 50/60 Hz
Wire Size Range: #14 to #4 AWG (2 to 25 mm^2)
Terminal Lug Torque: 22 lb-in (2.5 Nm)
Temperature Rating: 75 degrees Celsius
