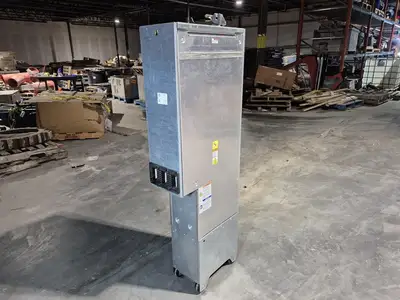

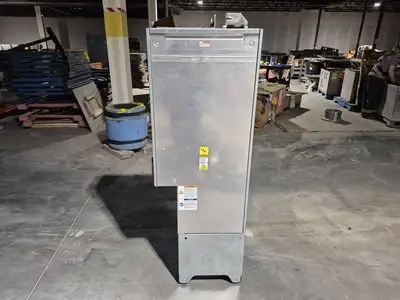

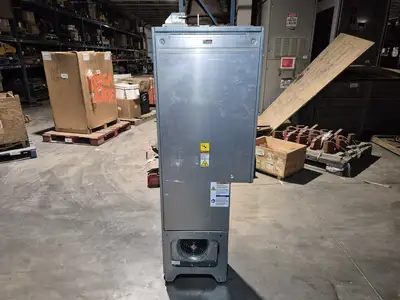

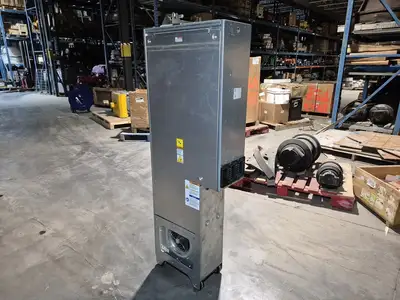

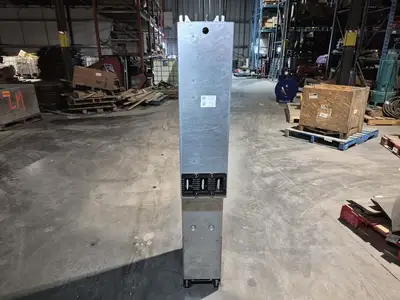

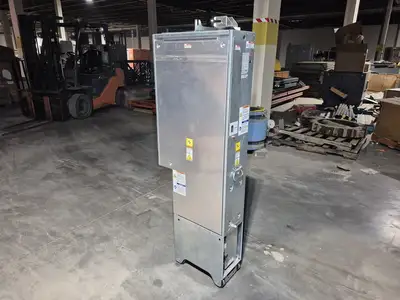

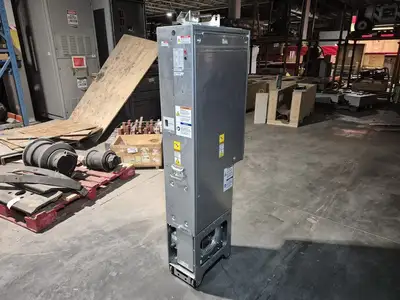

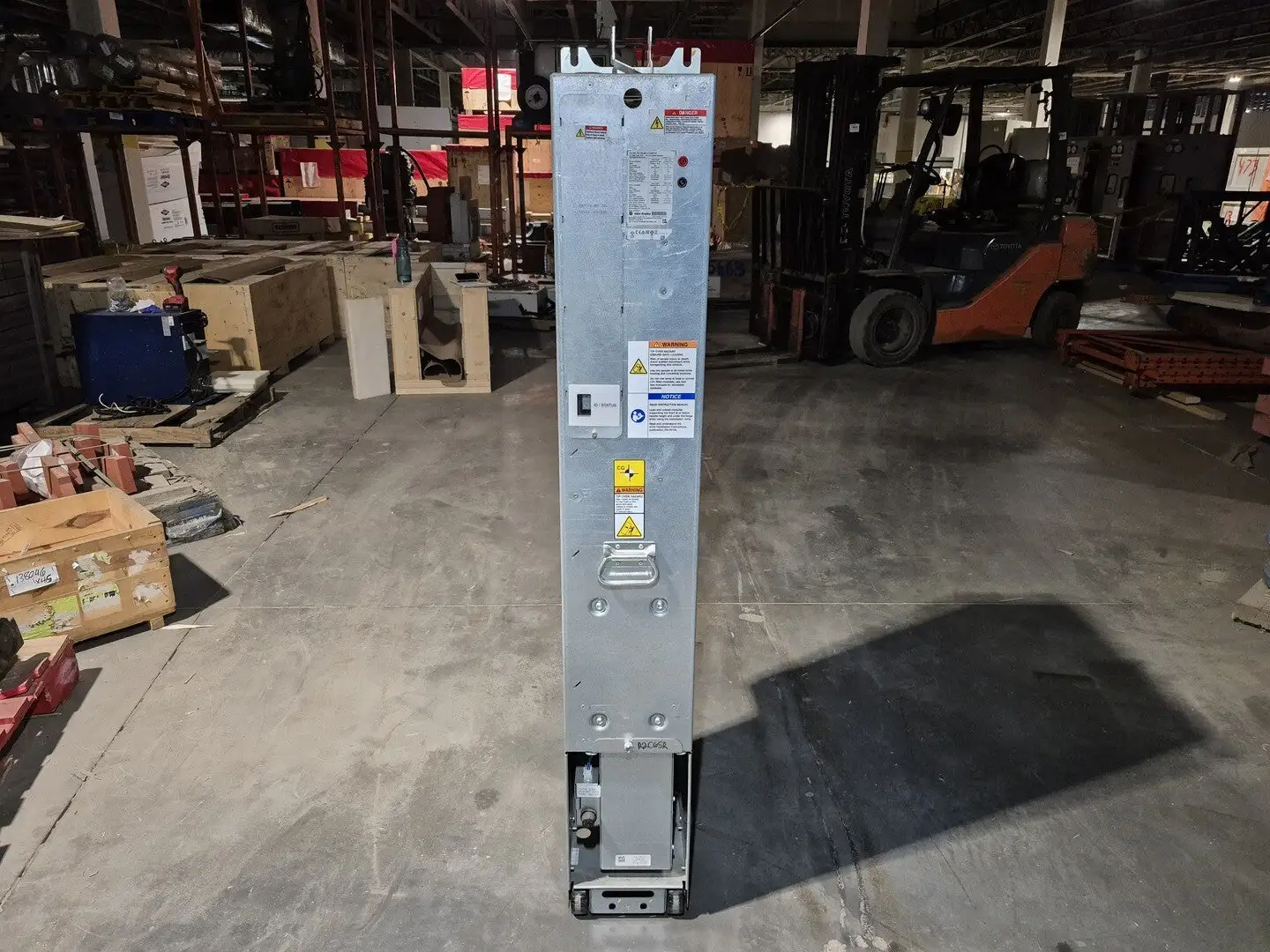

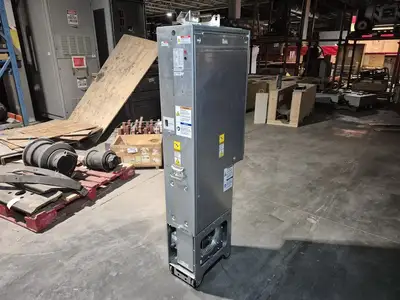

USED 2019 ALLEN-BRADLEY 20-750-MI2-E395F370

Horsepower: 522 hp
Voltage: 600 volts
Phase: 3-phase
Excellent condition, very low hours, Capacitors professionally reformed according to Allen-Bradley guidelines in the Summer of 2025.  Units have been specially crated for long term storage, transport and protection. Digital copies of reformation documentation available.

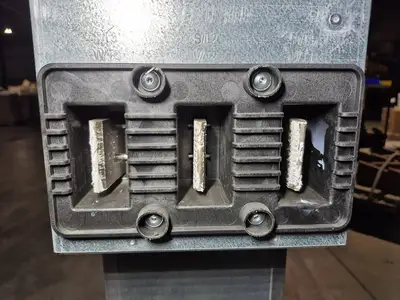

Comes with additional hardware for cabinet installation including 1X  Allen-Bradley 20-750-MREC1-F8M Stab Receptacle.

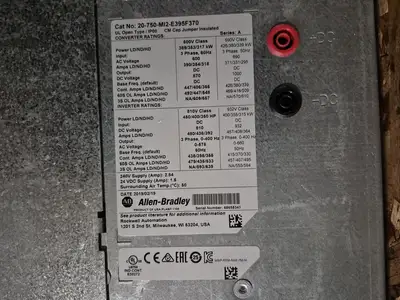

Converter ratings:
600 Volt Class:
Power LD/ND/HD: 522 / 473 / 425 hp
Input: 3 phase, 60 Hz
AC voltage: 600 volts
Amps LD/ND/HD: 390 / 354 / 318 amps
Output: DC
DC voltage: 870 volts
Cont. amps LD/ND/HD: 447 / 406 / 365 amps
60S OL amps LD/ND/HD: 492 / 447 / 548 amps
3S OL amps LD/ND/HD: NA / 609 / 657
Inverter ratings:
810 Volt Class:
Power LD/ND/HD: 450 / 400 / 350 hp
Input: DC
DC voltage: 810 volts
Amps LD/ND/HD: 480 / 436 / 392 amps
Output: 3 phase, 0 - 400 Hz
AC voltage: 0 - 575 volts
Base freq. (default): 60 Hz
Cont. amps LD/ND/HD: 435 / 395 / 355 amps
60S OL amps LD/ND/HD: 479 / 435 / 533 amps
3S OL amps LD/ND/HD: NA / 593 / 639
240 Volt Supply: 2.84 amps
24 VDC Supply: 1.5 amps
Surrounding Air Temp: 50 °C
