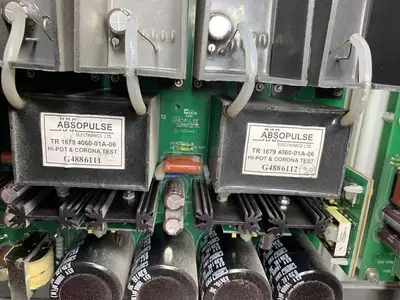

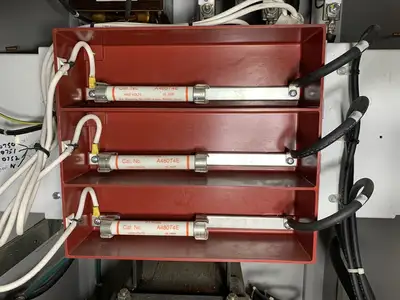

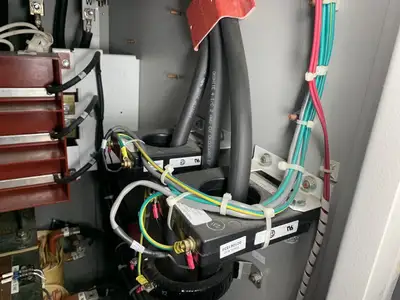

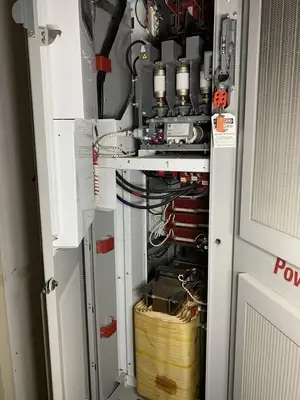

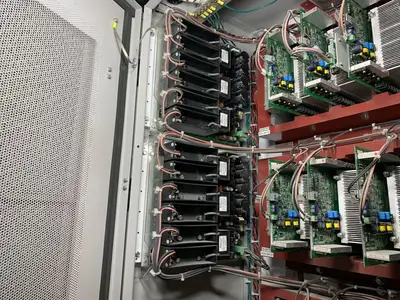

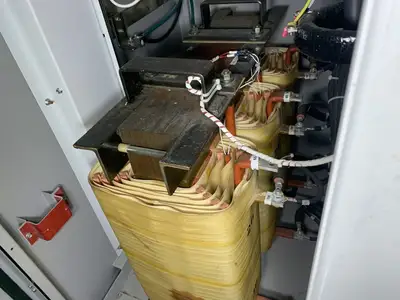

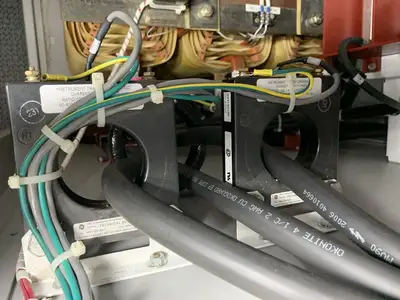

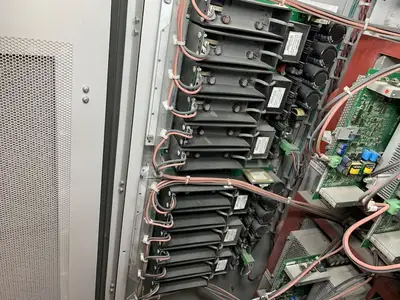

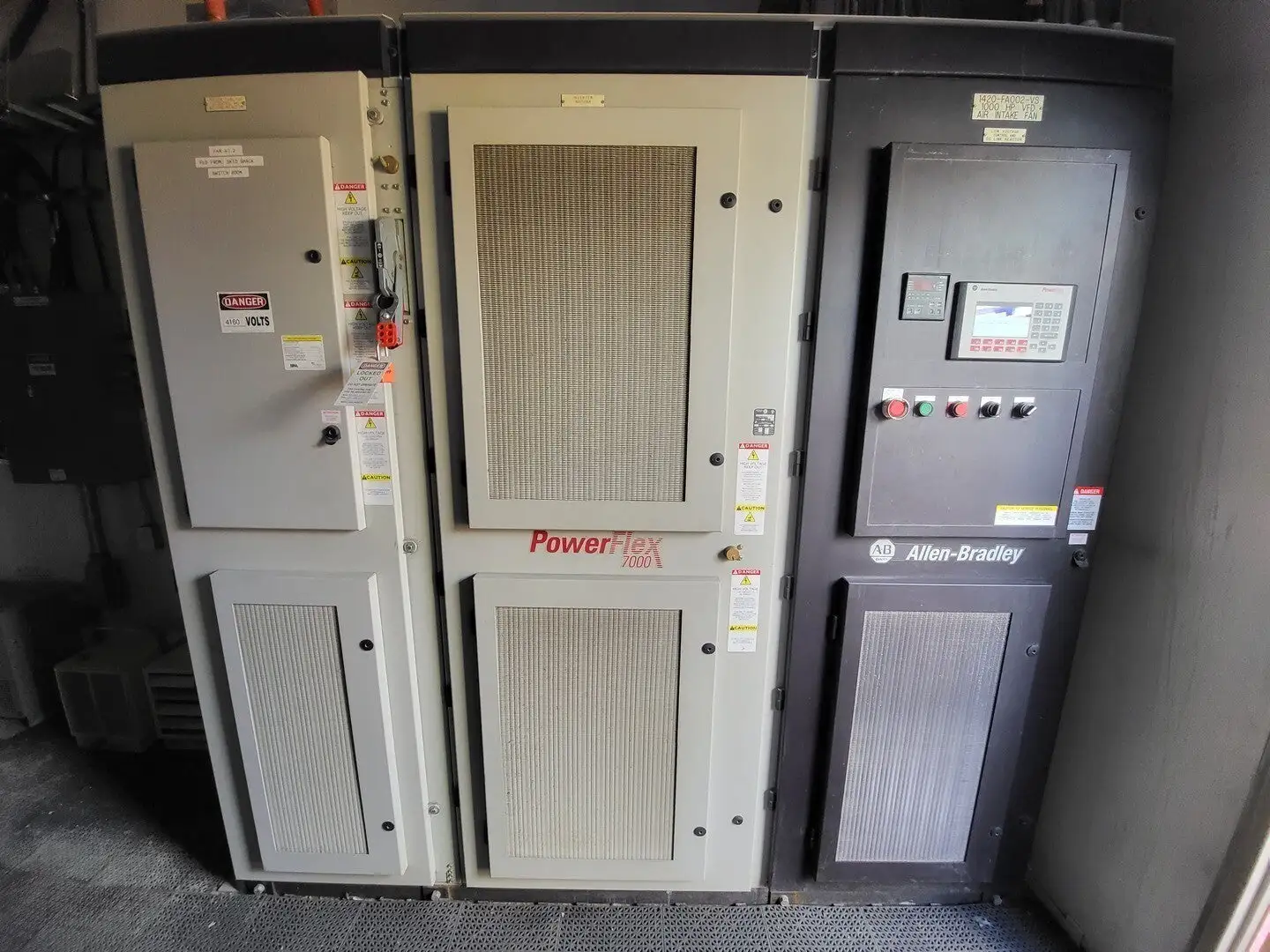

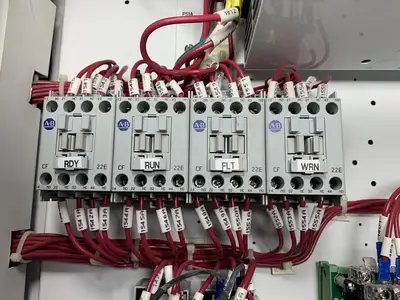

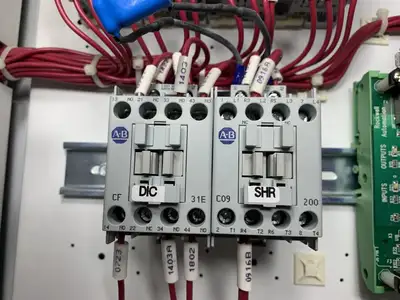

USED ALLEN-BRADLEY 7000A-A140DE-RPDTD

Horsepower: 1000 hp
Voltage: 4160 volts
Phase: 3-phase
Amps: 140 amps
VFD Specifications:

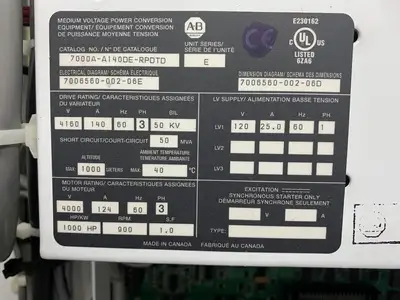

Catalog No.: 7000A-A140DE-RPDTD
Unit Series: E
Drive Rating: 4160V, 140A, 60hz, 3-Ph, 50KV BIL, 50MVA Short Circuit Rating
Motor Rating: 1000HP, 4000V, 900RPM, 124A, 60hz, 3-Ph
Motor: BALDOR 5HP, 208-230/460V, 1750RPM, 184T Electric Motor 36L513X864H2

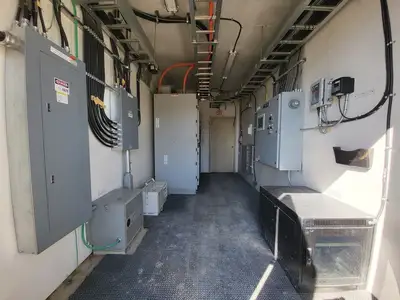

Building Components:
Variable Frequency Drive (VFD)
Load Center - 575V/3-Ph, 400A

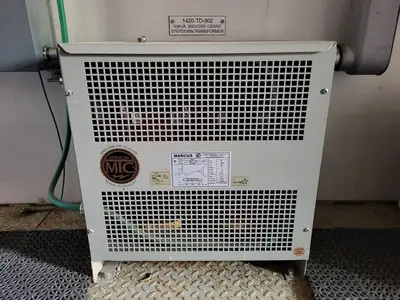

Transformer - 600V/240-120V, 30kVA
Distribution Panel - 240-120V, 225A

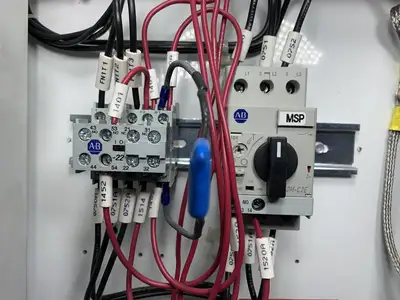

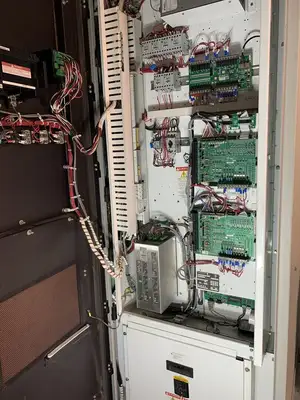

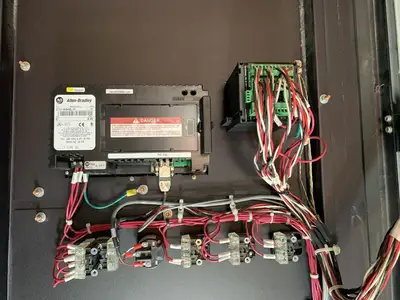

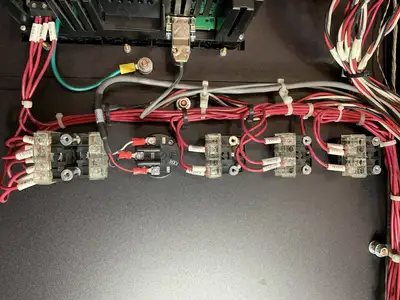

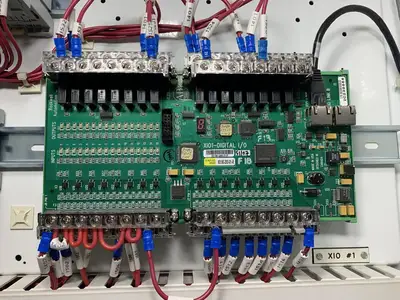

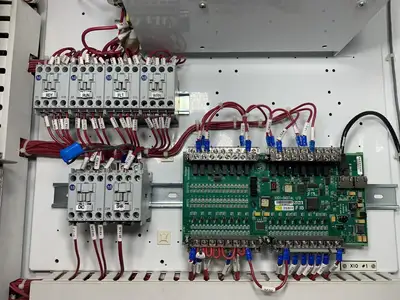

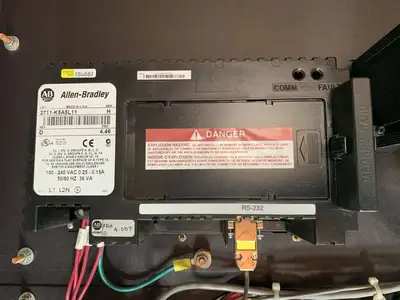

Control Panel (PLC, HMI)
Air Flow Monitor
CO Monitor
UPS (Power Supply)
Exhaust Fan - LEADER #LDR-AX20-IV
Line Voltage Cooling Thermostat
Fixed Louver - Model 2225
Motorized Damper - Model MBDFFM

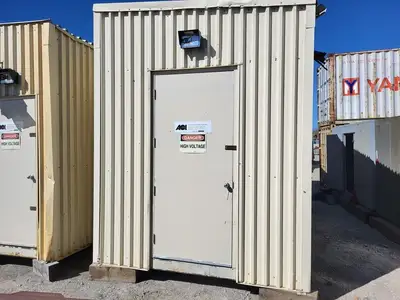

Wall Construction:
4in. Steel Structural Framing
4in. Mineral Wool Insulation
#16 GA. Steel Liner on Inside
#22 GA. Corrugated Steel Panel Exterior
Roof Construction:
6in. Steel Structural Framing
6in. Mineral Wool Insulation
#16 GA. Steel Liner on Ceiling
#22 GA. Corrugated Steel Panels on Roof
Floor Construction:
6in. Steel Structural Framing
2in. Styrofoam
3/16in. Steel Floor Plating
