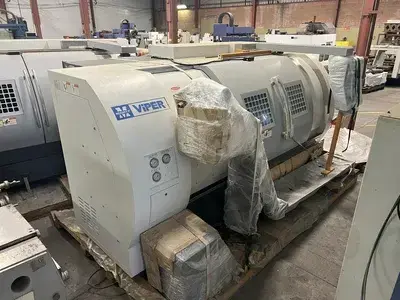

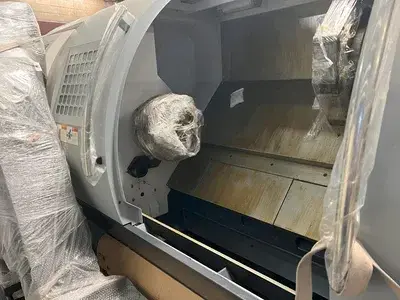

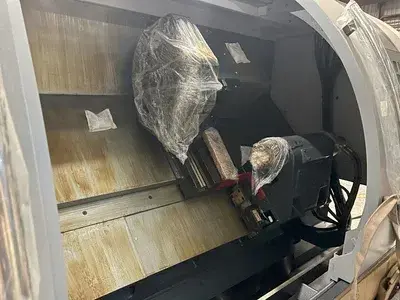

NEW 2025 MIGHTY VIPER VT-30GL

MIGHTY VIPER Turning Ctr Model VT-30GL X 1000, Swing 31.5", CC 41" Max Turn Dia. 19", Chuck 15"
SOLID BOX WAY CONSTRUCTION

Mighty Viper CNC lathe Model VT-30GL Box way, gearbox CNC lathe with Fanuc control, 15" Chuck, 3" Bar capacity, 50 HP spindle motor Programmable quill and tag along tailstock, 12 Station Turret, 40.9" Center distance, Chip conveyor, 9.4 HP "Z" axis motor, Renishaw tool arm, Tool holders and boring bar holders and all Manuals, toolbox, one year machine and two year control warranty.

Rigid, one-piece Meehanite cast-iron-bed. Viper turning center construction provides the ultimate in machine tool accuracy and reliabilty.

A 45° + 10° slant bed design for our VT-36 gives Viper its exceptional cutting stability facilitating optimal chip removal. Cutting reaction forces are minimized resulting in a high degree of precision. Both X and Y axes on Viper turning centers are supported by oversized hardened and ground box type ways which facilitates exceptionally fast cutting rates.

Mighty USA, established in 1981, is an American machine tool company that imports high quality machining centers manufactured to state-of-the-art specifications and built with premium components.
We are a leading machine tool seller and national machining center distributor with corporate headquarters strategically located on the west coast in Southern California.
As a core machinery company, we sell innovative machine tool technologies that help the CNC parts machining industries produce advanced tools and build complex parts.
We support our customers across North America with a network of factory partners and offices in the United States and along the Western Pacific Rim.
Mighty USA has a solid footing in the US with a service staff of over 40 professionals dedicated to providing reliable CNC machining solutions.

Machine Model 30GL
Swing Over Bed 27
Turning Diameter Max. 19
Turning Length Max. 25~41.3"
X-Travel 9.3
Z-Travel 37 ~ 116
Nose Type A2-11
Bar Capacity 3
Through Hole
Speed *** (rpm) 3500
Motor** (hp) 50

Standard Features\
Hydraulic Chuck, 3-Jaw 15"
Static Turret 12 Tool
Link Type Chip Conveyor
Auto Lubrication System
Block for Base
Cooling System
Coolant Tank Guard
Chip Conveyor
Fluid Bearing Way System
Foot Switch for Spindle
Clamp/Unclamp
Hard Jaw (1-Set)
Heat Exchange for
Electrical Cabinet
Hydraulic Adjustment System

Lubrication Monitoring System
Soft Jaw (1-Set)
Tool box with Hand
Work Light

STANDARD TOOLING LIST
FOR STATIC BLOCK TOOL TURRET

♦ OD Cutter Mounting Block (33-85213) 12
♦ OD Cutter Mounting Wedge (33-85216) 12
♦ Coolant Nozzle Block for OD Cutter (33-85221) 12

♦ Tool Holder (□1") (33-85403) 2
♦ Spacer for Tool Holder (33-85215) 2

♦ Boring Bar Holder (Ø2") (33-85503) 1
♦ Boring Bar Holder (Ø1½") (33-85508) 4
♦ Sleeve for Boring Bar (Ø1¼") (33-85465) 2
♦ Sleeve for Boring Bar (Ø1") (33-85466) 2
♦ Sleeve for Boring Bar (ؾ") (33-85467) 2
♦ Sleeve for Boring Bar (Ø⅝") (33-85468) 2
♦ Sleeve for Boring Bar (ؽ") (33-85469) 2
♦ Sleeve for Boring Bar (Ø⅜") (33-85470) 2
♦ Drill Socket (I-4) (33-85450) 1
♦ Drill Socket (I-3) (33-85451) 1
♦ Spacer for Boring Bar Holder (33-85220) 12

Optional Accessories
Air Chuck
Automatic Gantry Loading
and Unloading System
Bar Feeder Interface**
Chip Conveyor
Coolant Through Tool
up to 1,000 psi
Cut-Off Attachment
Drilling and Milling
Attachment 3000 rpm
Front Parts Catcher
Grinding and Milling
Attachment 10,000 rpm
Heavy Parts Loader
High Pressure Coolant Pump
and Large Capacity Tank
Live Tooling
Live VDI-50 Turret with
Block Tool Turret
Manual Guide i
Rear Chuck Flange
Rear Chuck Adapter
Rear Manual Spindle
Mounted Chuck
Rear Parts Catcher
Static VDI-50 Turret
Static VDI-50 with Block
Tool Turret
Self-Centering Steady Rest
SMW Autoblok
Tool Presetter
Torque Limiter Clutch
