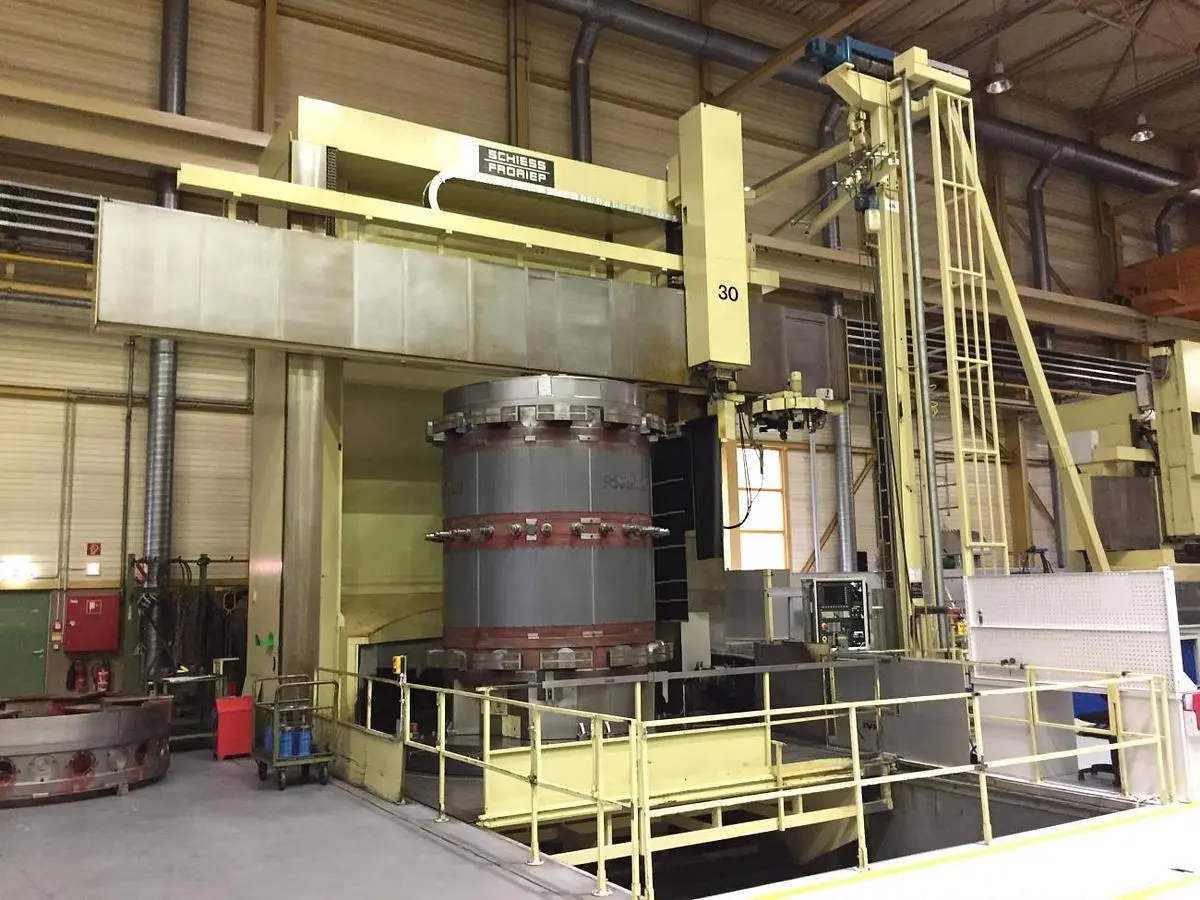

USED SCHIESS 40 DZ 12-400/500-500/180
Overview
Description
Machine Rebuilt & Retrofitted 2015Siemens 840D SL CNC ControlHorizontal Side Head with Live Spindle:Vertical travel of the Support -25 + 2170 mmHorizontal movement of RAM 1,000 mmTuring diameter (max/min) 4500/2500 mmTool changerMotor Power 22.5 kWMax. Torque 900 NmMachine Complete With:New electric (Switch cupboard, cables, sensors, etc.)All axes incl. Table are hydrostatic guidedOperator Lifting PlatformChip conveyorCoolant UnitTool ChangerWork piece probe RENISHAWVertical Support (right)Horizontal travel Support - 2740 + 2740 mmVertical travel of the RAM 1.800 mmCross-section of the RAM 250x210 mmTool changer places
Specifications
Manufacturer: Schiess
Model: 40 DZ 12-400/500-500/180
Condition: Refurbished
Stock Number: 5654228
Table diameter: 4,000 mm
Swing: 5,000 mm
Turning height: 5,000 mm
Table capacity: 80 Ton
Y axis table travel: 2,500 mm
Crossrail travel: 3,200 mm (in 50 mm steps)
Table turn speed: 63 rpm
Main drive: 100 kW
Main drive torque: 160 kNm
Connection to power: 380V / 50Hz - 220V AC/24V DC - 150 kVA - 400A
