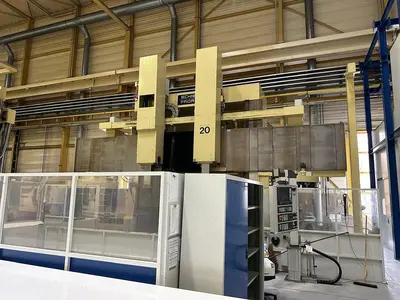

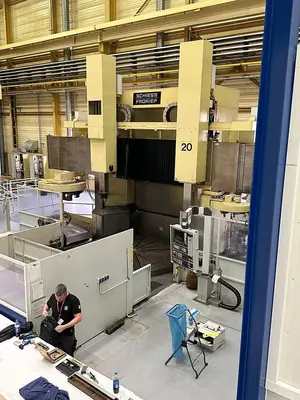

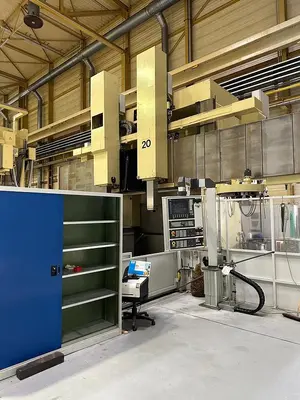

USED SCHIESS 40 DZ 12-350/400-300/180
Overview
Description

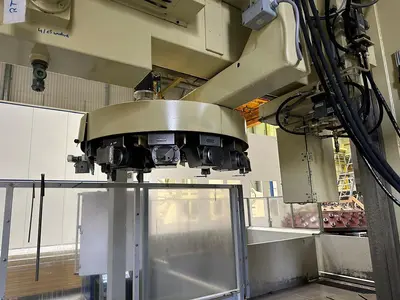

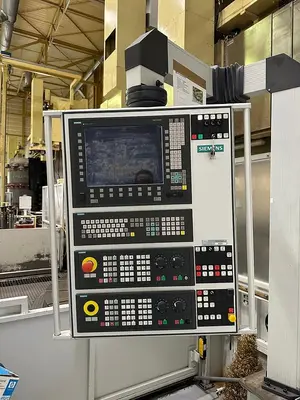

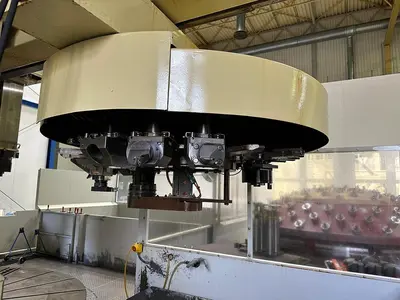

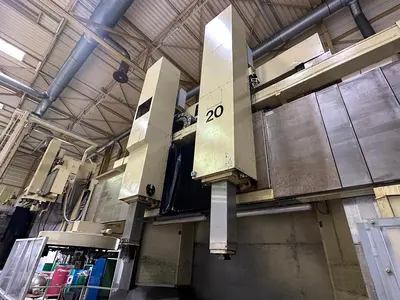

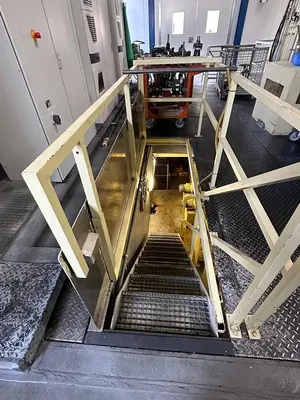

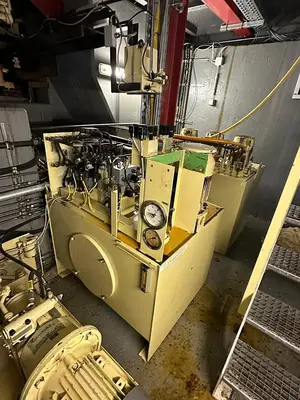

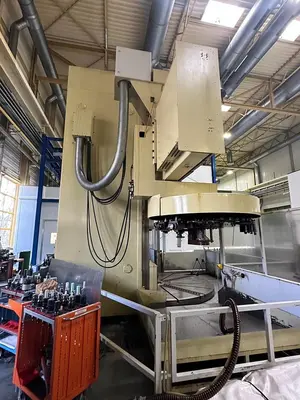

Rebuilt & Retrofitted in 2015Double Ram Machine 1 x Ram for Turning 1 x Ram for Live SpindleMachine Complete With:Siemens 840DSL CNC ControlNew electric (Switch cupboard, cables, sensors, etc.)All Axes and incl. Table are hydrostatic guidedOperator Lifting PlatformChip conveyorCoolant UnitTool ChangerVertical Support (right)Horizontal travel Support -25 + 2170 mmVertical travel of the RAM 1.800 mmCross-section of the RAM 250x210 mmTool changer placesVertical Support (left)Horizontal travel Support -25 + 2170 mmVertical travel of the RAM 1.800 mmCross-section of the RAM 250x210 mmTool changer places
Specifications
Manufacturer: Schiess
Model: 40 DZ 12-350/400-300/180
Condition: Refurbished
Stock Number: 5654227

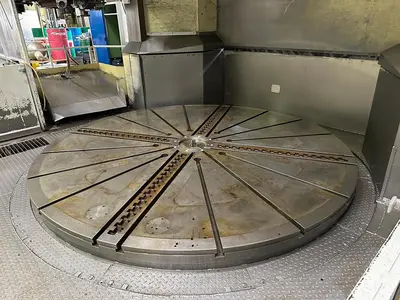

Table diameter: 3,500 mm
Swing: 4,000 mm
Turning height: 3,000 mm
Table capacity: 50 Ton
Table turn speed: 100 rpm
Live spindle motor power: 22.5 kW
Y axis table travel: 2,000 mm
Crossrail travel: 1,500 mm (in 50 mm steps)
Live spindle motor: 22.5 kW
Live spindle torque: 900 Nm
Machine height above floor: 7,250 mm
Main drive: 100 kW
Main drive torque: 100 kNm
Connection to power: 380 V / 50Hz - 220V AC/24 DC - 150 kVA 400A
