USED 2001 BLOW SC2-400-108-54

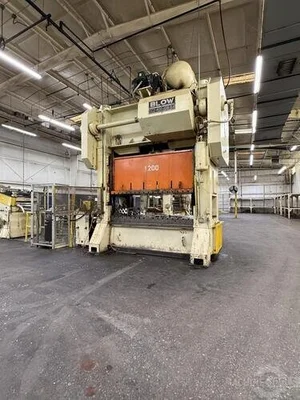

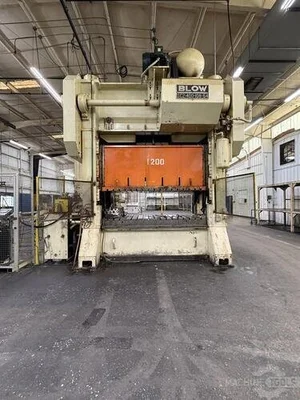

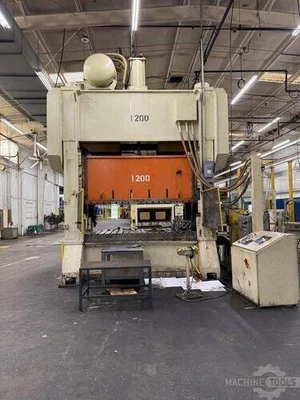

400-ton Blow SC2-400-108-54 Straight Side Mechanical Stamping Press For Sale, Year 2001

Tonnage: 400
Stroke: 10 inches
Shut Height: 35 inches
Adjustment: 12 inches
Bed Size: 108" LR x 54" FB
Ram Area: 108" LR x 54" FB
SPM: 20-60 VSPM

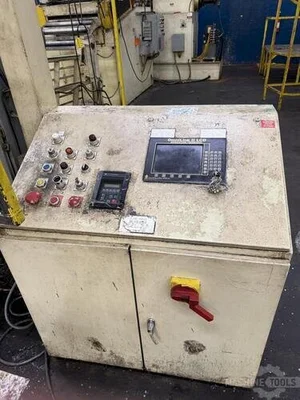

Standard SpecificationsUsed Blow Straight Side Mechanical Press400-ton Blow Model # SC2-400-108-54Serial Number SDG-400-541-01400-ton Capacity @ .5" off Bottom10" Stroke35" Shut Height over Bed (SDAU)28" Die Height over Bolster (SDAU) 10" Motorized Adjustment108" LR x 54" FB Bed Area108" LR x 54" FB Slide Area20-60 VSPMEquipment and FeaturesAir Clutch and BrakeAir CounterbalancesRecirculating Lube SystemT-Slotted Ram and Bolster 7" Thick Bolster PlateHydraulic Tie Rod NutsOmni-Link II LCD Operator TerminalFree Standing Console Controls38" Wide WindowsVibro Dynamic Isolator PadsFloor StandingWeight:  148,000 lbs.Overall Height: 221.5" TallThis Used 400-ton Blow Press can be seen under power upon request in the S & G Press Livonia MI Warehouse!
High-Performance Used 400-Ton Blow Straight Side Mechanical Stamping Press
Maximize your production with this heavy-duty, Used 400-Ton Blow Straight Side Mechanical Press for sale. Ideal for metal stamping and progressive die operations, this double crank press offers superior rigidity and precision. The robust Blow Model SC2-400-108-54 features an expansive 108" LR x 54" FB Bed Area, perfect for large or tandem tooling setups.Key specifications for serious buyers include a powerful 400-ton capacity (at 0.5" off bottom), 10" stroke, and a quick 20-60 VSPM variable speed range. Equipped with a reliable Air Clutch/Brake, Hydraulic Tie Rod Nuts, and a modern Omni-Link II LCD Operator Terminal, this machine is ready for immediate integration. The massive 148,000 lb. frame and Vibro Dynamic Isolator Pads ensure stable, high-quality operation.Located and available for inspection under power at the S & G Press Livonia MI Warehouse. Contact us today to request a quote for this exceptional Used 400-Ton Blow Press.
