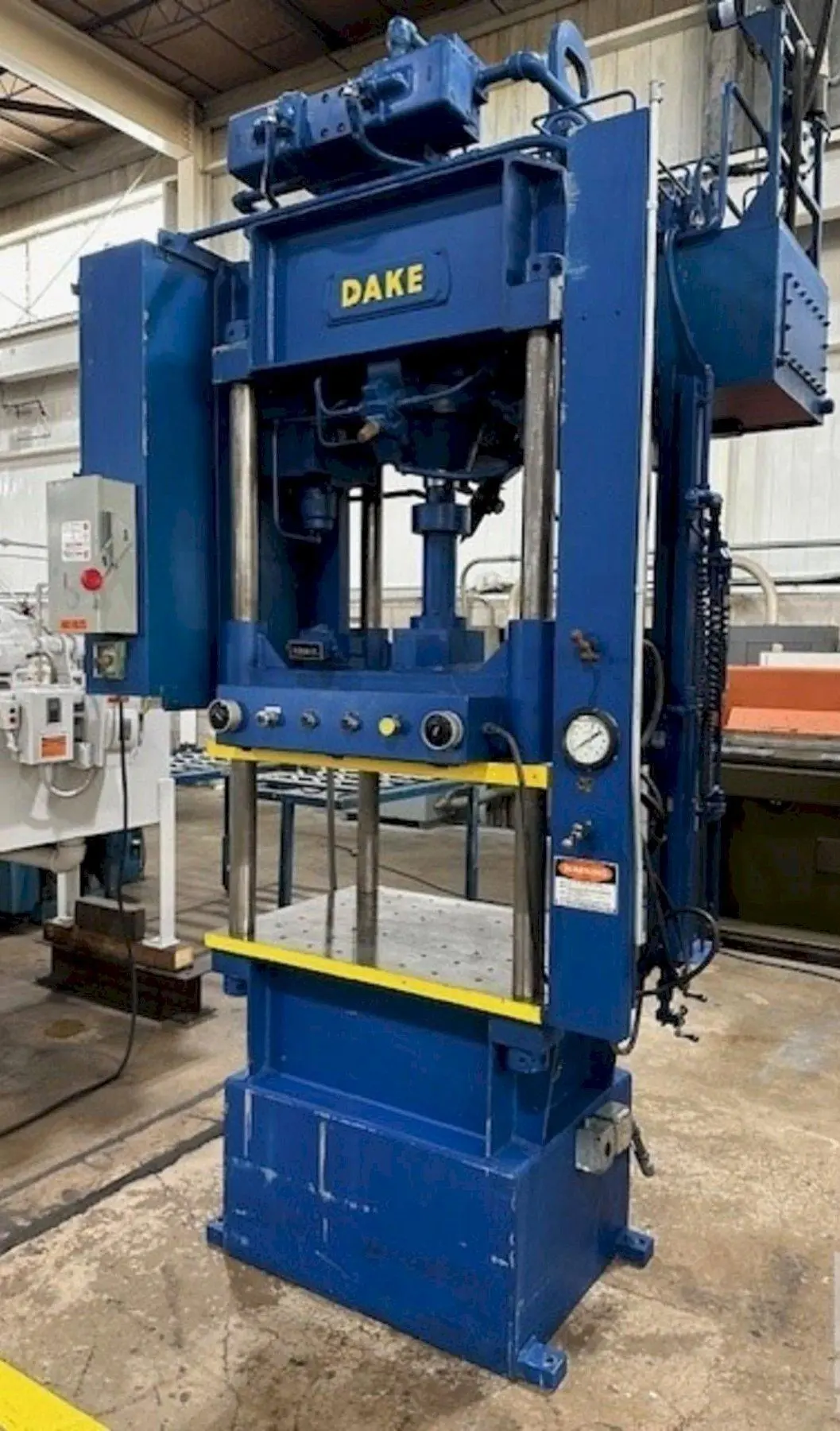

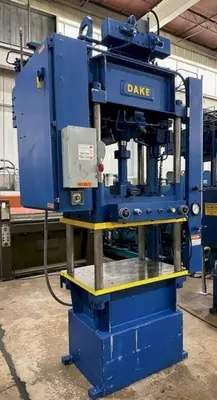

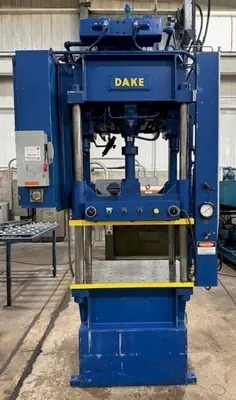

USED DAKE 27-783

SERIAL .................................. 178359
MODEL ................................... 27-783

TYPE:
4 POST DOWNSTROKE / FLOOR STANDING

DIAMETER OF POSTS ....................... 3"
DISTANCE BETWEEN POSTS .................. 33" L-R x 20" F-B
NOMINAL AREA OF BED ..................... 33" L-R x 29" F-B
OVERALL DIMENSIONS OF BED ............... 42" L-R x 29" F-B
NOMINAL AREA OF SLIDE ................... 33" L-R x 29" F-B
OVERALL DIMENSIONS OF SLIDE ............. 42" L-R x 29" F-B
STROKE (FULLY GUIDED SLIDE) ............. 0 - 14" maximum
DAYLIGHT OPENING ........................ 32" MAX
DAYLIGHT OPENING WITH 12" SPACER ........ 20" MAX
MAIN RAM DIAMETER ....................... 5"/4" @ 5090 PSI - 50 tons
FLOOR TO TOP OF BED ..................... 36"

POWER UNIT (TOP REAR OF PRESS):
(2) HYDRAULIC PUMPS ..................... YES
MOTOR ................................... 15HP/1755RPM/230/460V/3PH/60CY

SPEEDS (APPROX):
MINUTE CLOSING .......................... 215"
MINUTE PRESSING TO 50 TONS .............. 42"
MINUTE RETURN ........................... 600"

PUSHBUTTON OPERATION CONTROLS:
STROKE & PRESSURE CONTROL ............... YES
DUAL PALM BUTTONS ....................... YES
SELECTOR SWITCH ......................... MANUAL - SEMI AUTO OPERATION
CYCLE TIMER ............................. YES
SAFETY SLIDE LOCK ....................... YES
PRESSURE GAUGE .......................... YES

Brand
DAKE
Type
Presses, Hydraulic
Stock No.
24083
