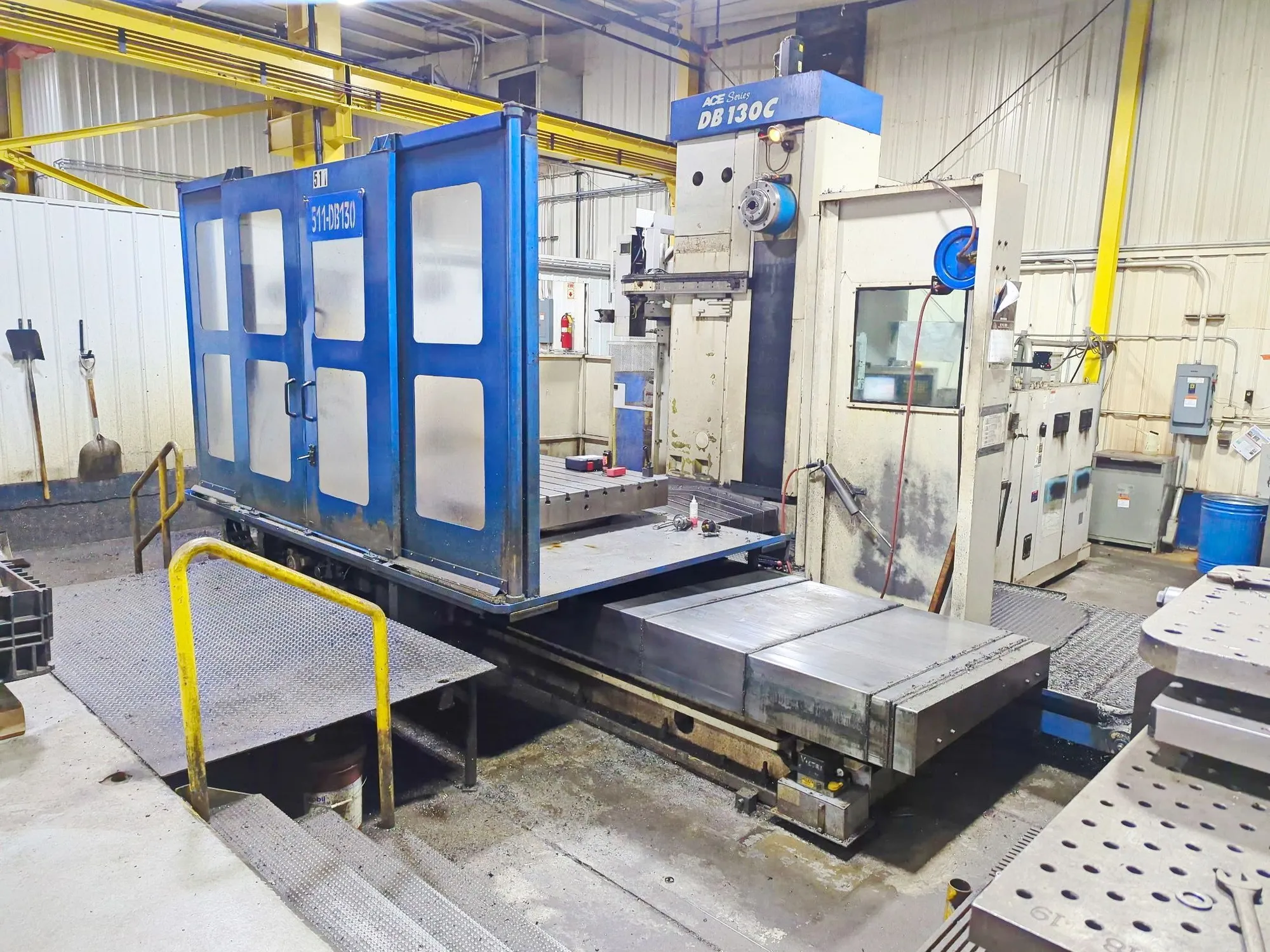

2005 Doosan ACE-DB130C Horizontal CNC Boring Mill, TSC, B-Axis Rotary Table, Spindle Chiller, 60-Position Tool Changer, Bolster Plates, Chip Conveyor, Manuals
| Spindle Size | 5.11" | 129.79 mm |
| X-Axis | 118" | 2,997.2 mm |
| Y-Axis | 78.8" | 2,001.5 mm |
| Z-Axis | 63" | 1,600.2 mm |
| W-Axis | 27.56" | 700.02 mm |
| B-Axis | 0.001° | 0.001° |
| Power | 35 hp | 26.1 kW |
| RPM | 2,500 RPM | 2,500 RPM |
| Table-W | 63" | 1,600.2 mm |
| Table-L | 71" | 1,803.4 mm |
| Taper | ISO 50 - 7/24 | ISO 50 - 7/24 |
| Max Table Load | 33,069 lb | 33,069 lb |
| ATC | 60 | 60 |
| Rapid Traverse (X/Y/Z/W) | 393 in/min. | 393 in/min. |
| Made In | Korea | Korea |
| Control | CNC (Fanuc 18i-M) | CNC (Fanuc 18i-M) |
| Dimensions | 311" X 264" X 181" | 311" X 264" X 181" |
| Weight | 74,957 lb | 74,957 lb |
Through spindle coolant
B-axis rotary table
Spindle chiller
60-position tool changer
Bolster plates
Rigid tapping
Chip conveyor
Manuals
