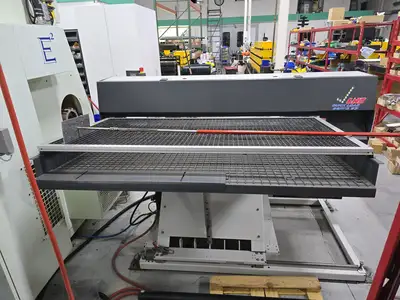

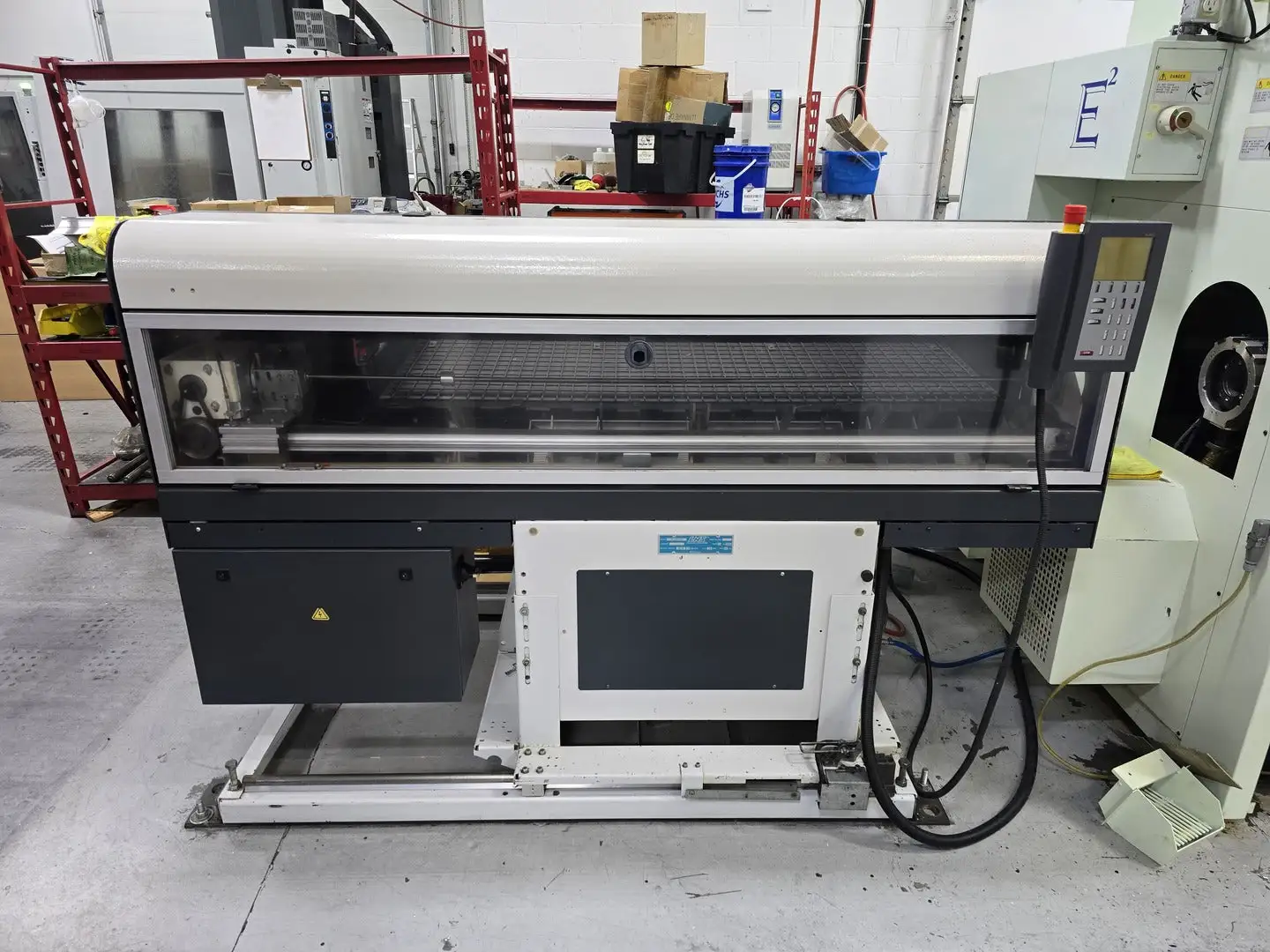

USED 2003 LNS QUICK LOAD SERVO S3

Compatible w/ EUROTECH 730SL-Y CNC Lathe
Hours: 7,798 total hours indicated (2946 cycle hours/ 2,851 cutting hours)
Loading cycle for shaft loading (one shot): 4 - 7 seconds
Loading cycle for bar stock: 8 - 12 seconds
Max feed rate: > 100 m/min. (>3937 I/min.)
Pushing force/torque: 167 Nm (167 N/3ft.)
Max current rate: 1 A
Voltage: 480 volts
Max bar stock weight: 67 kg // 147.6 lbs
Max bar stock length: 1600 mm // 63"
Min. bar stock length: 130 mm // 5.1"
Max diameter (round): 120 mm // 4.7"
Min. diameter (round): 6 mm // 0.23"/1/4"
X and Z axis retraction travel: 600 mm // 23.6"
Centerline range: 900 - 1149 mm (35.4" - 45.2") // 1150 - 1400 mm (45.3" - 58.14") centerline range
Dimensions: 1248 x 1486 x 2048 mm HxWxL
Weight: 600 kg // 1360 lbs
