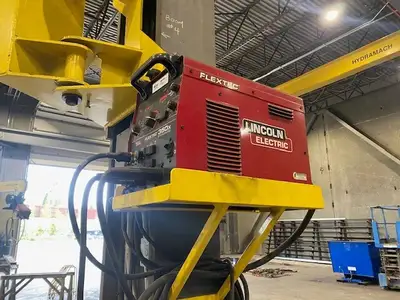

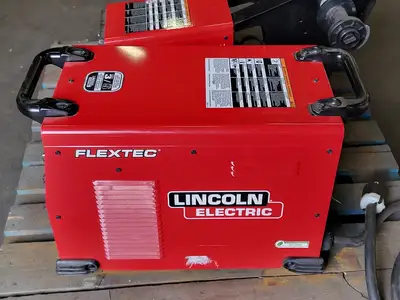

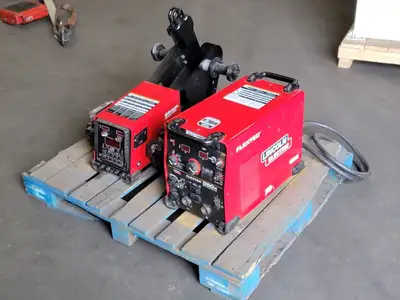

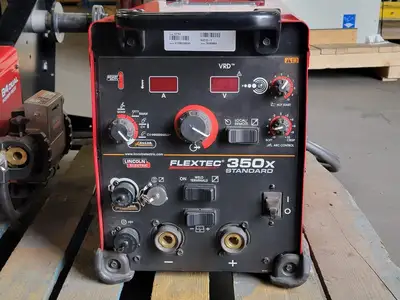

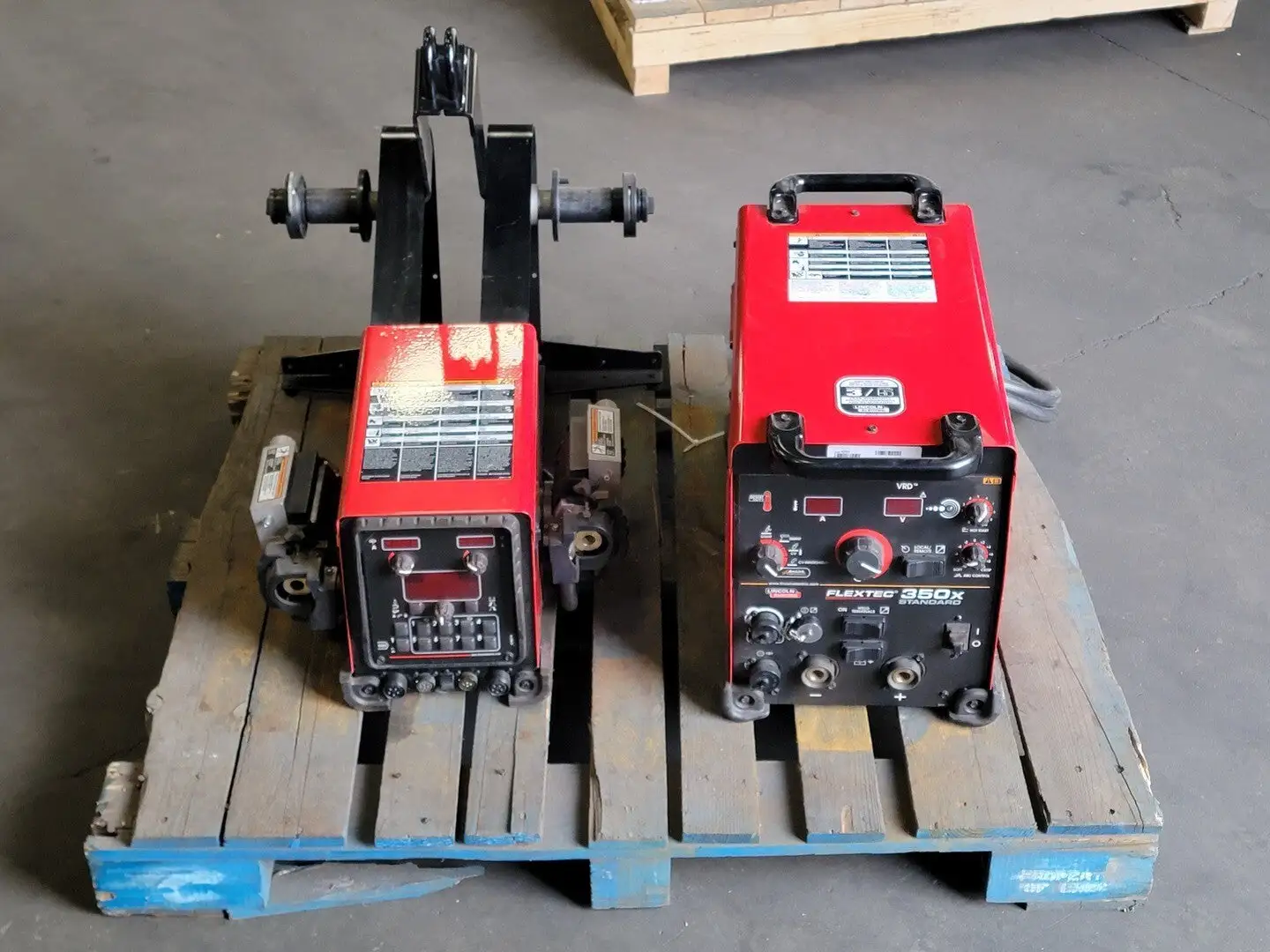

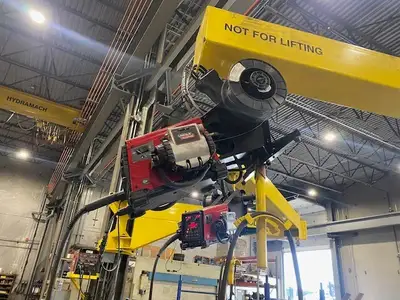

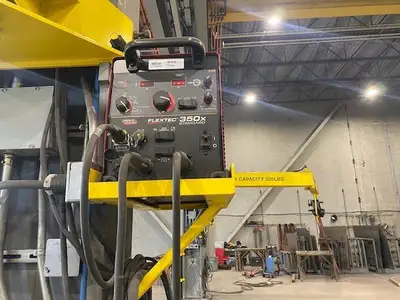

USED LINCOLN ELECTRIC FLEXTEC 350X

Amps: 350 amps
Phase: 3-phase
Duty Cycle: 60
LINCOLN FlexTec 350x Welder PDF

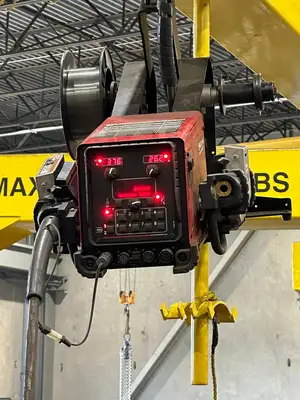

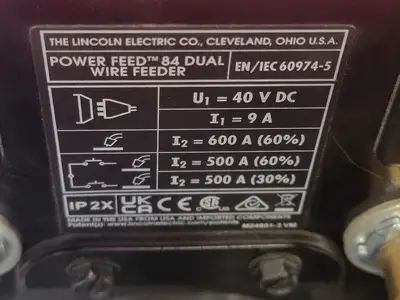

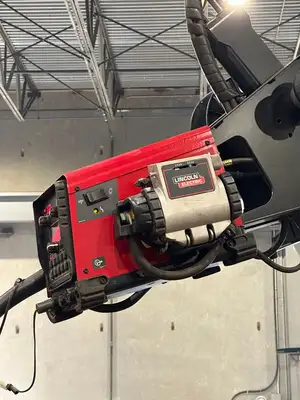

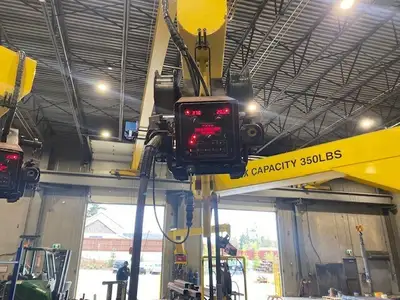

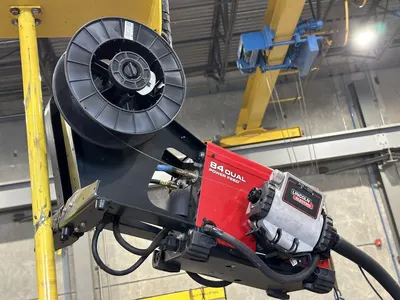

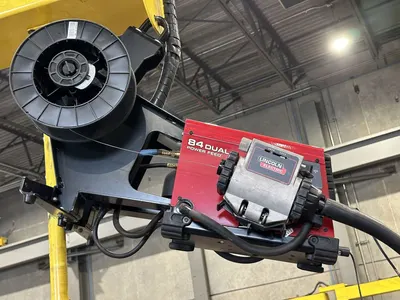

LINCOLN 84 Dual Wire Feeder PDF
Stick welding:
Current range: 30 A - 425 A
Voltage rating: 21.2 V - 37 V
TIG welding:
Current range: 5 A - 425 A
Voltage range: 10.2 V - 27 V
Wire/Flux-core:
Current range: 40 A - 425 A
Voltage range: 16 V - 35.3 V
Open-Circuit voltage: Max 67 V peak, 60 V average
Reduced open-circuit voltage for safety:
Stick/TIG: 17 V peak, 15 V avg
MIG (wire): 24 V peak, 15 V avg
Duty cycle ratings:
60%
Current: 350 A
Voltage: 34 V
100%:
Current: 100 A
Voltage: 32 V
Input voltage:
380 volts - 25 A max current // 19 A effective current
460 volts - 28 A max current // 22 A effective current
575 volts - 23 A max current // 18 A effective current
