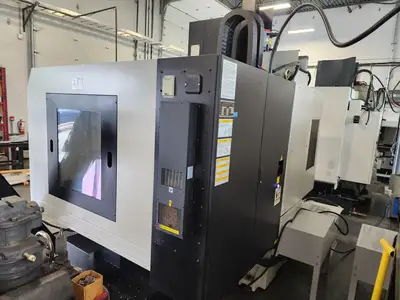

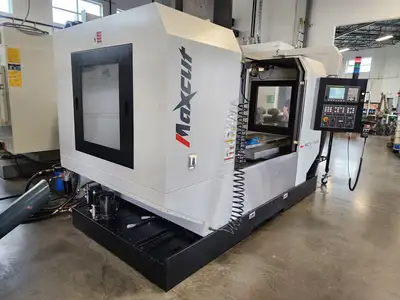

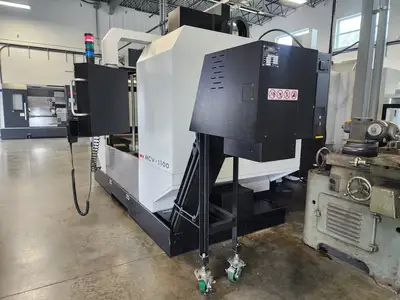

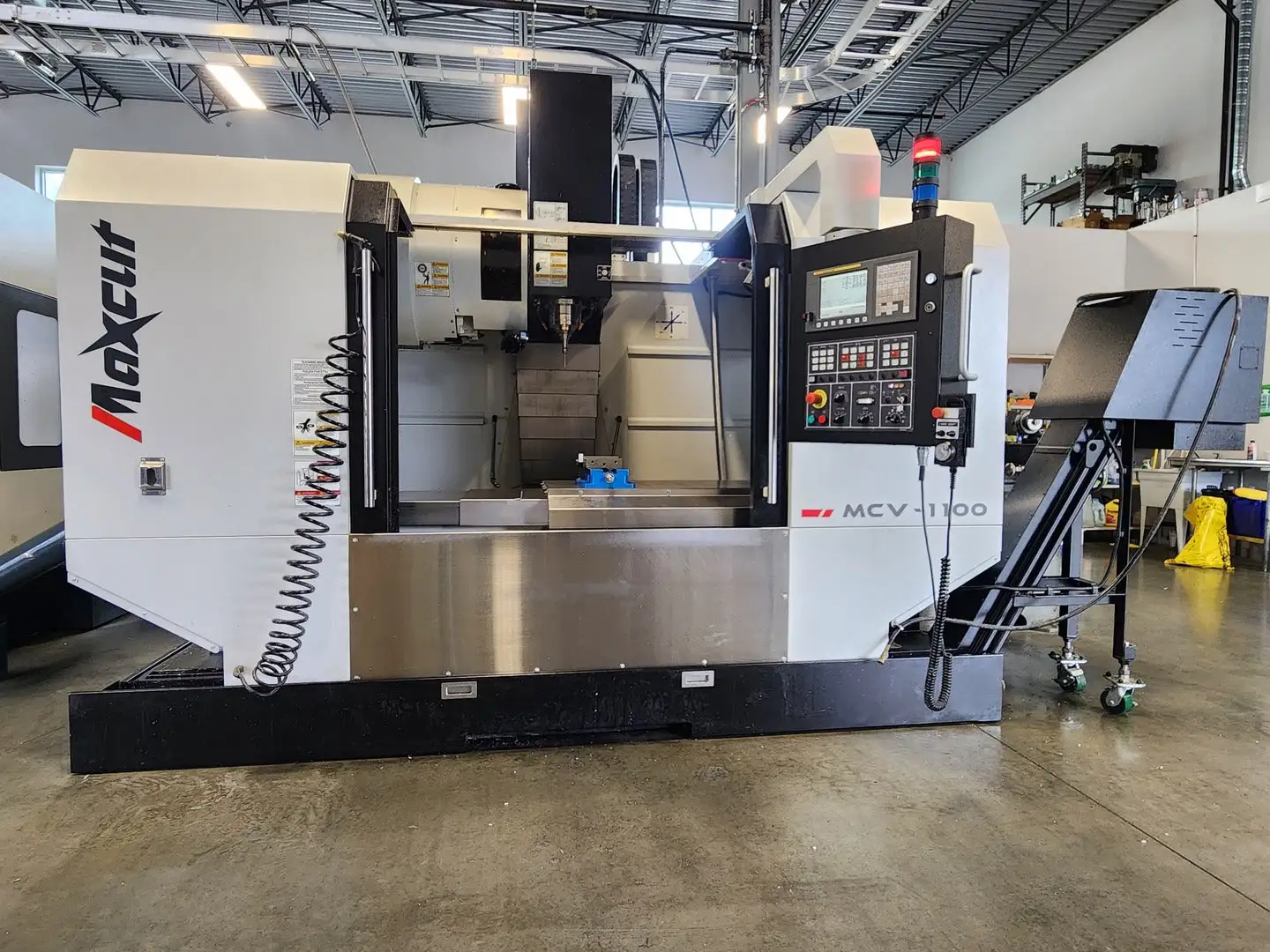

USED 2017 MAXCUT MCV-1100

Spindle Taper: ISO 40

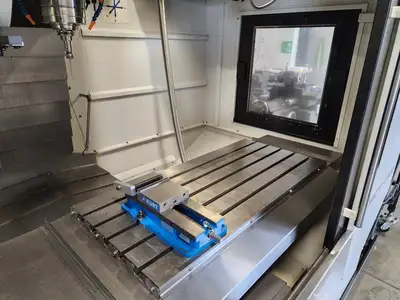

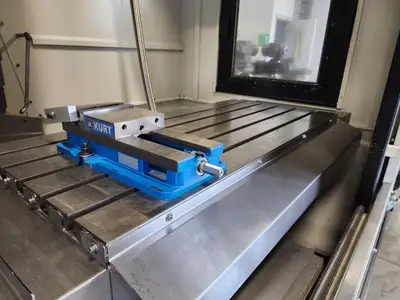

Table Size: 1300 x 600 mm
Speed: 10000 rpm
CNC: Yes

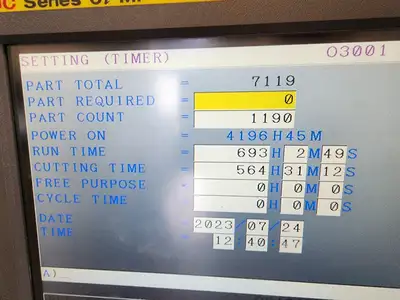

Run Time: 693 hrs
Voltage: 220/440 volts
Phase: 3-phase
Amps: 90/45 amps
VIDEO LINK
Features

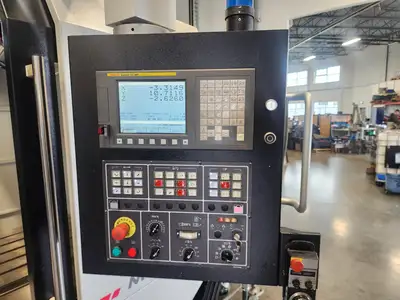

Fanuc Series 0i-MF Control
Built-in engraving functions: X/Y engraving and X/A engraving if 4th Axis installed
Conversational to G-code conversion feature allows programming without G-code
Quick programming helical taper interpolation or helical taper threading
Inside/outside taper threading/boring cycle
Swing arm type tool changer
Wash down system with coolant gun
Heavy-duty box way design
Through spindle coolant

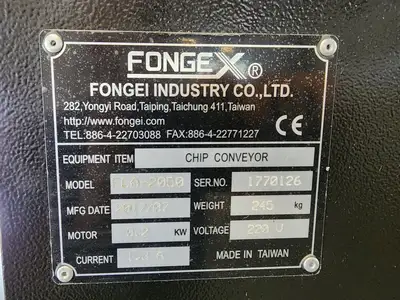

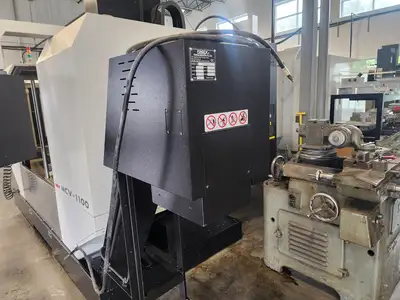

Chip conveyor
Power: 15 kVA
Cutting Time: 564 hrs
Table Height: 840 mm (33")
Table Loading Capacity: 800 kgs (1760 lbs)
X-Travel: 1120 mm (44")
Y-Travel: 635 mm (25")
Z-Travel: 602 mm (23.7")
Spindle
Center to Column: 675 mm (26.58")
Nose to Table: 115-717 mm (4.5" - 28.25")
Motor: 15/20 hp
X Axis Motor Torque: 14.84 Nm
Y Axis Motor Torque: 14.84 Nm
Z Axis Motor Torque: 27.34 Nm
Coolant Pump Motor: 3/4 hp

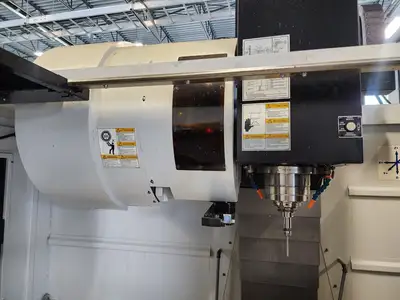

Arm Style ATC
Number of Tools: 24
Tool Taper: CAT 40
Tool Select by Shortest Path: Bi-direcitonal
Max. Tool Weight: 8.9 kgs (17.6 lbs)
Max. Tool Diameter: 130 mm (5.12")
Max. Tool Diameter (Adjacent Pocket): 70 mm (2.76")
Max. Tool Length: 300 mm (11.81")
Performance
Rapid Traverse X/Y/Z: 24 m/min (1000 ipm)
Feed Rate X/Y/Z: 15 m/min (600 ipm)
Positioning Accuracy: +/- 0.005 mm (+/- 0.0002 in.)
Repeatability: +/- 0.002 mm (+/- 0.00008 in.)
Dimensions & Weights
Length x Width x Height: 3.3 x 2.5 x 2.8 m (132 x 100 x 112 in.)
Machine Weight: 5000 kg
Chip Conveyor Weight: 245 kg
Floor Space: 5.27 x 3.25 m (207 x 128 in.)
