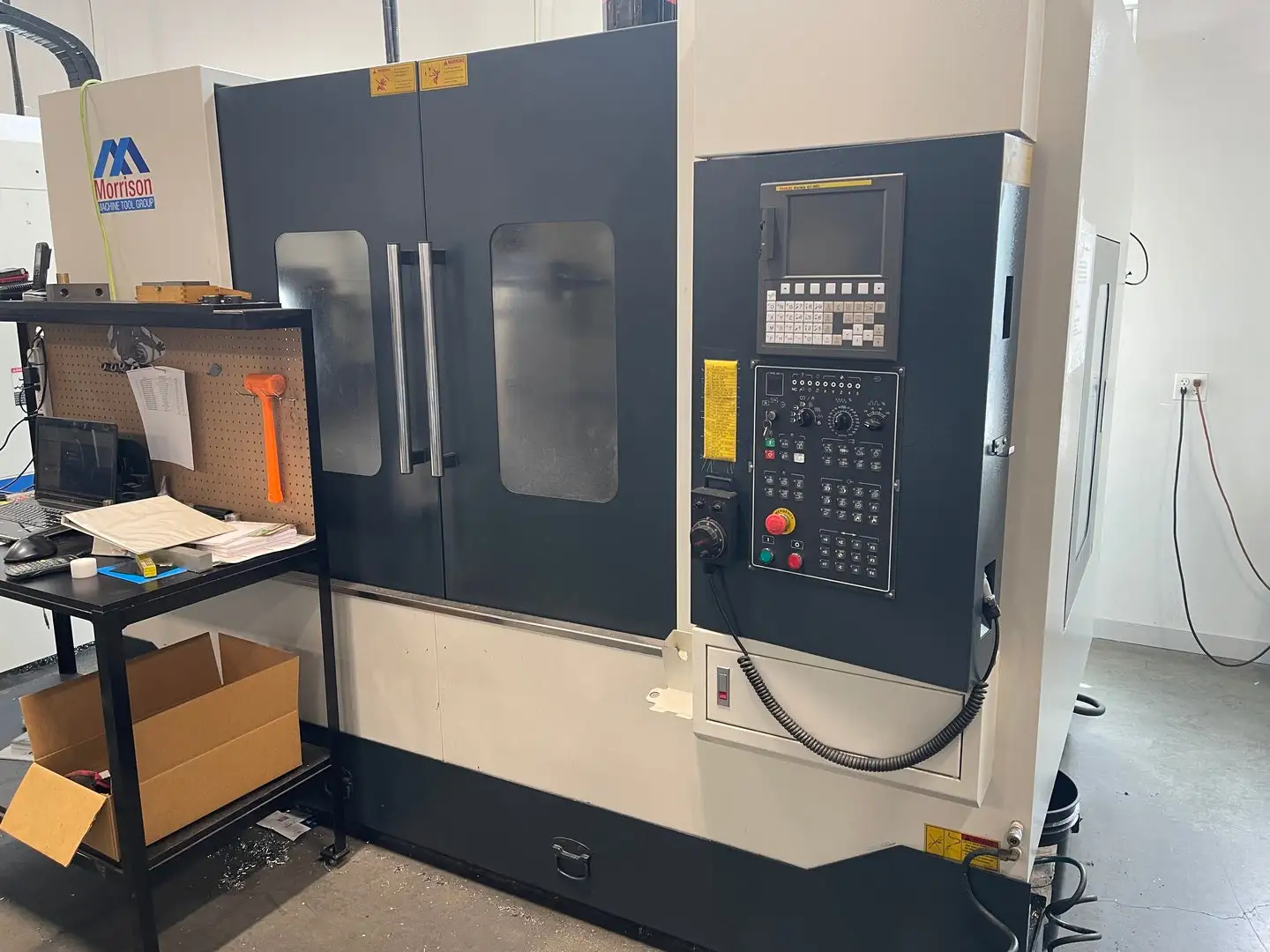

USED 2012 MORRISON VMC-4220B

Spindle Taper: #40
Table Size: 47" x 20"
Speed: 12000 rpm
CNC: Yes
Voltage: 230 volts
Phase: 3-phase
Amps: 65 amps
Capacity
X Axis Travel: 42"
Y Axis Travel: 20"
Z Axis Travel: 24"
Table Loading Area: 47" x 20"
Allowable Table Load: 1760 lb.
Table T-Slot Spacing x Width: (5) - 15T x 100 inch
Spindle
Nose to Table Top: 3.3 - 23.3"
Column to Spindle Center: 20.4"
Standard Speed: 12,000 rpm
Spindle Motor (30 min): 20 hp
Spindle Torque (30 min): 142 ft-lb
Automatic Tool Changer
Number of Tools: 24
Tool Shank: Cat 40 (Big Plus)
Max. Tool Diameter: 4"
Max. Tool Length: 11.8"
Max. Tool Weight: 15.4 lb
Motion
X and Y Axis Rapid Traverse Rate: 1,181 ipm
Z Axis Rapid Traverse Rate: 1,181 ipm
Cutting Feed Rate: 12 - 384 ipm
Least Common Increment: 0.0001 in.
Position Accuracy: +/- 0.0002 in.
Repeatability: +/- 0.00008 in.
Dimensions & Weights
Floor Space: 123" x 98"
Machine Weight: 15,400 lb
