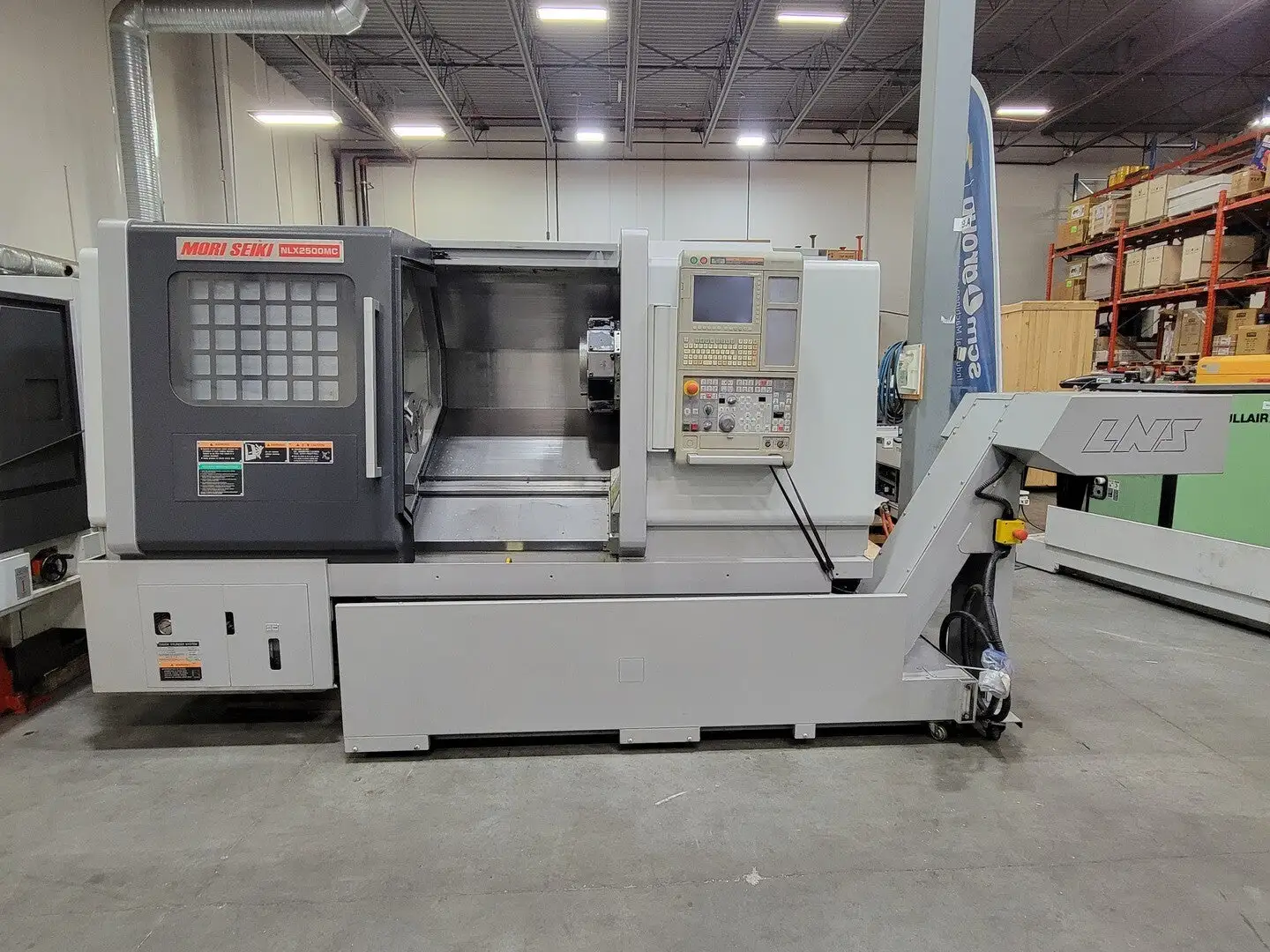

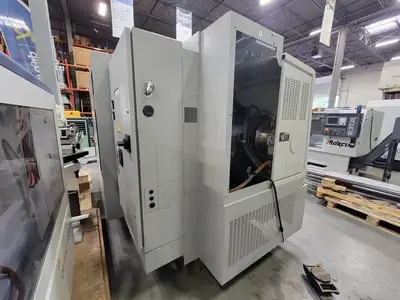

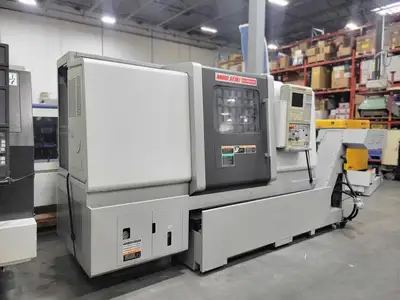

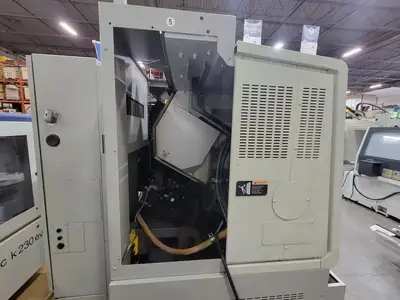

USED 2012 MORI SEIKI NLX-2500MC

Voltage: 220 volts
Phase: 3-phase
Hours: 1900 hrs approx
Chuck Size: 10"
Max Diameter Bar Capacity: 3.1"
Max Swing Over Bed / Cover / Carriage: 31" / 23" / 21.3"
Max Machining Length: 27.7"
Spindle Motor: 24.7 / 20 HP
Spindle Speed: 4000 RPM
Spindle Nose: A2-8
Spindle Bore: 3.6"
Tools: 12 (All Live)
Milling Motor: 7.5 HP
Milling Speed: 6000 RPM
Rapid Traverse Rates: 1181 IPM
X-Axis Travel: 10.2"
Z-Axis Travel: 31.3"
C-Axis Index: .001 Degree
Turret Index (Single Step): 0.27 Seconds
Machine Dimensions (L x W x H): 156.3" x 80.8" x 74.8"
Machine Weight: 12,000 lbs.
Max Turning Diameter (Max / Std): 14.4" / 10.6"
Spindle Torque: 441.8 ft. lbs.
Tailstock Taper: MT#5
