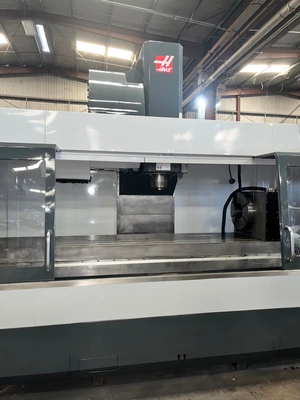

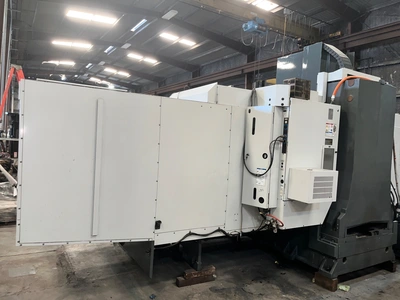

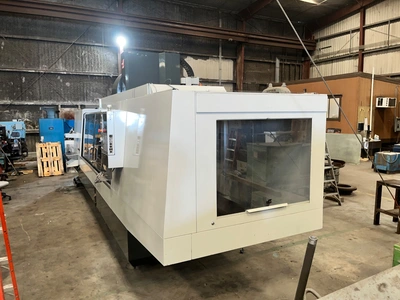

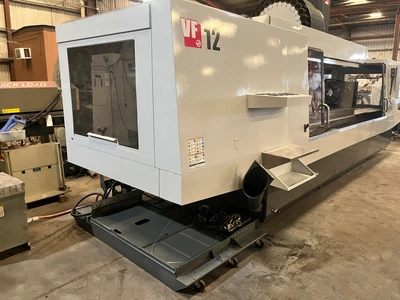

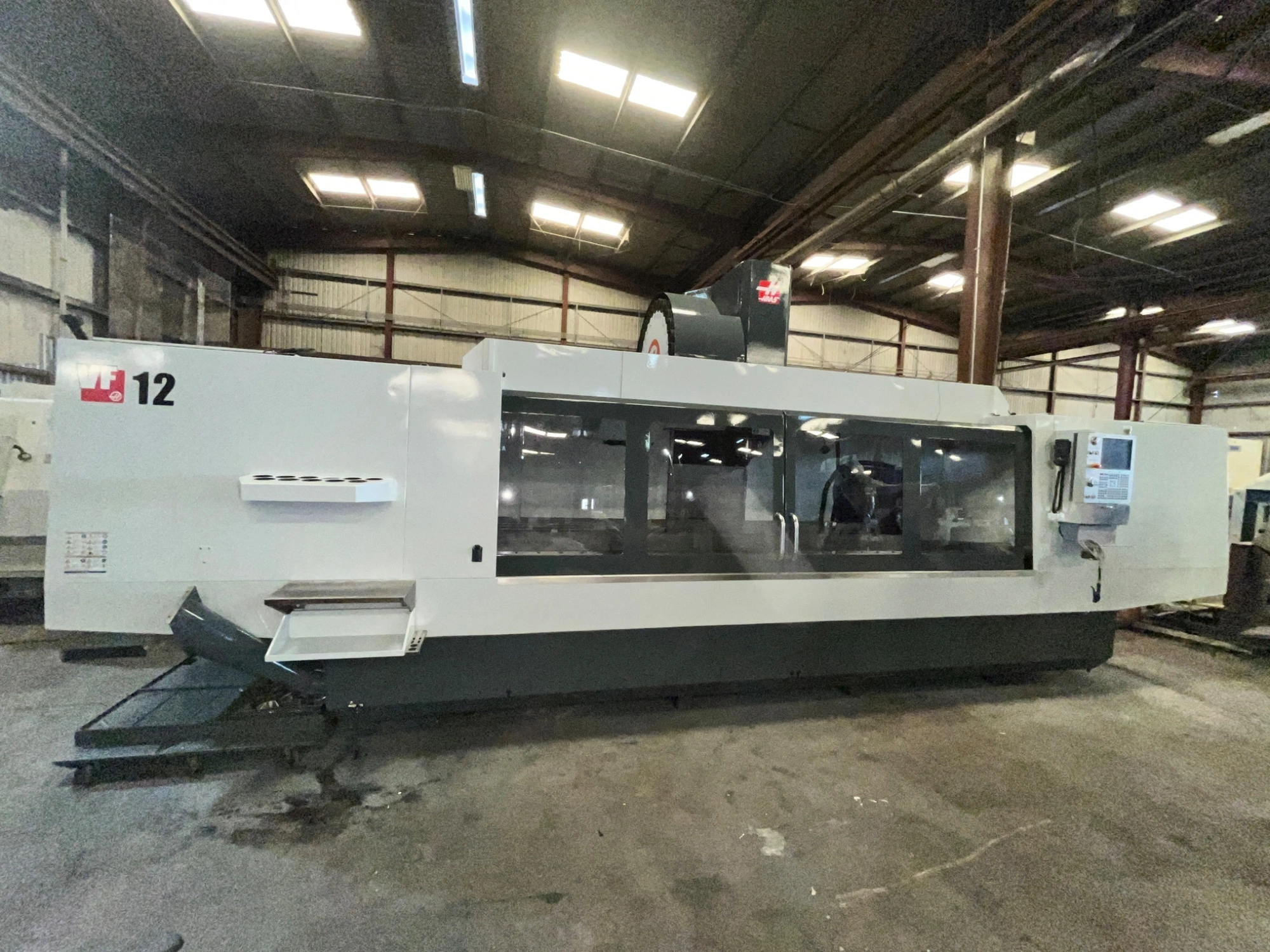

USED 2014 HAAS VF-12/50

HAAS MODEL VF-12
VERTICAL MACHINING CENTER
WITH 4th AXIS

50 TAPER
THROUGH SPINDLE COOLANT
1000 PSI HIGH PRESSURE.

4th Axis Drive & Wiring
2 Speed Gear Box
Programmable Coolant Nozzle

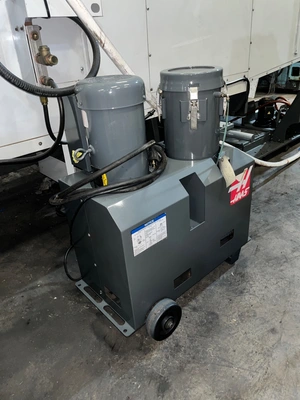

1000 PSI Coolant Thru the Spindle
Auxiliary Coolant Filter
Probe Ready ONLY
Visual Quick Code Programming
User-Definable Macro

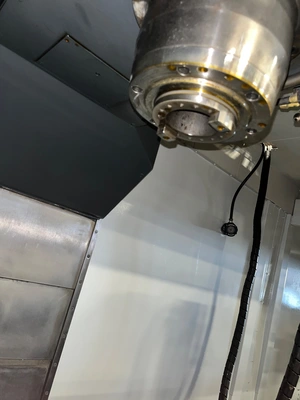

Spindle Orientation
Coordinate Rotation & Scaling
Auger Style Chip Conveyor

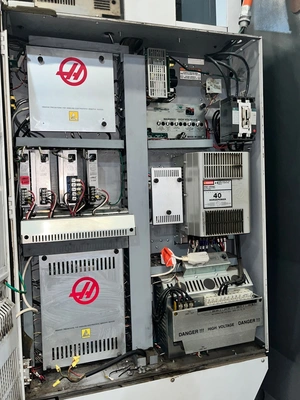

CNC Control Cabinet Cooler
Rigid Tapping
High Intensity Lighting
Color Remote Jog Handle

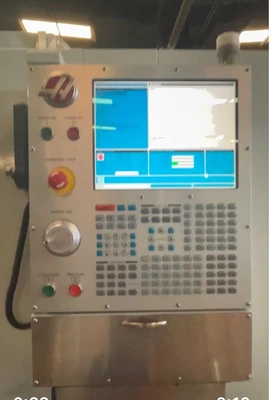

15" Color LCD Monitor
1 MB Program Memory
95 Gallon Flood Coolant System
USB Port Interface
RS 232 Port Interface
230V 3 / 60

**Manufactured New in May of 2014**

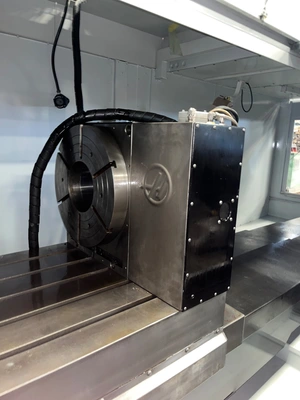

HRT 450
Rotary Table in Photo is included

Specifications
Manufacturer
Haas
Model
VF-12/50
Year
2014

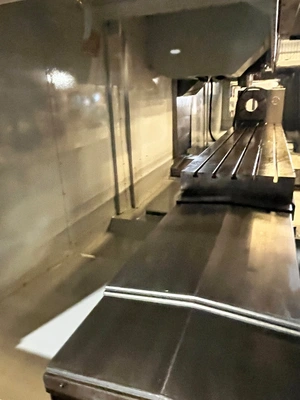

Table Size
150" x 28"
Maximum Table Load
4,000 lbs
X-Axis Travel
150"
Y-Axis Travel
32"
Z-Axis Travel
30"

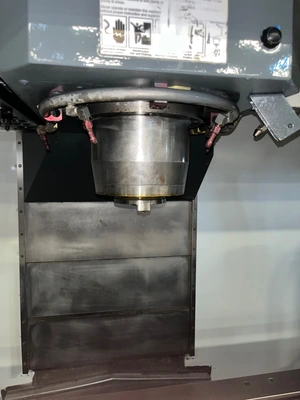

Spindle Speed
7,500 rpm - 2 Speed Geared Head
Spindle Taper
CAT 50
Spindle Motor
30 HP
Distance Spindle Nose to Table Top
4" - 34"

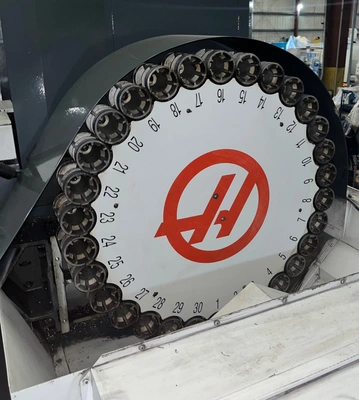

Tool Magazine Capacity
30 Station Side
* Scale Feedback on X AXIS
Mounted Tool Changer
Rapid Traverse Rates X / Y, Z
360 IPM / 600 IPM
Machine Dimensions LxWxH
343"x110"x130"
Machine Weight
37,300 lbs

Excellent Condition

Under Power In Houston
