Machine is in Excellent Condition & Ready For Inspection.
| Table-W | 9" | 228.6 mm |
| Table-L | 42" | 1,066.8 mm |
| Travel-Long | 32" | 812.8 mm |
| Travel-Cross | 14" | 355.6 mm |
| Power | 3 hp | 2.2 kW |
| RPM | 4,300 RPM | 4,300 RPM |
| Taper | R8 | R8 |
| Dimensions | 56”L x 57”W x 85”H | 56”L x 57”W x 85”H |
| Weight | 2500 Lbs | 2500 Lbs |
Specifications:
Model - 2VS
Year - 10/2000
Table Size - 9” x 42”
Table Travel (X Axis) - 32”
Saddle Travel (Y Axis) - 14”
Knee Travel (Z Axis) - 14”
Quill Travel - 5”
Spindle Taper - R8

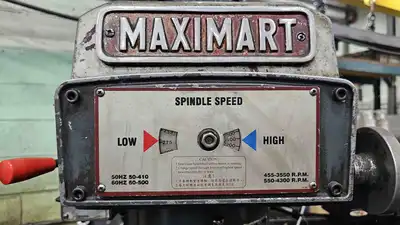

Spindle Speeds - 60 to 4300 RPM

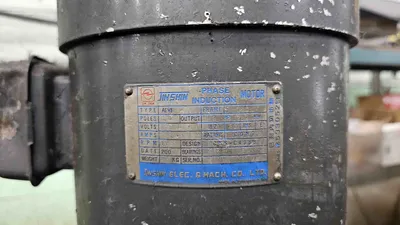

Spindle Motor - 3 HP
Electrics - 575V/3PH/60HZ
Made In - Taiwan
Approximate Weight - 2,500 LBS
Approximate Overall Dimension - 56”L x 57”W x 85”H
Equipped With:

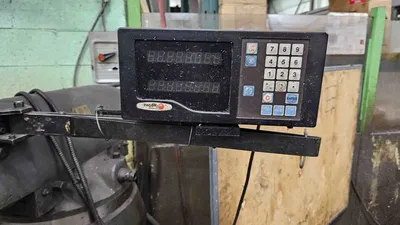

Fagor Two Axis Digital Readout (Not Working)
Variable Spindle Speeds
Swivel Head
