Machine is in Excellent Condition & Ready For Inspection.
| Table-W | 10" | 254 mm |
| Table-L | 50" | 1,270 mm |
| Travel-Long | 38" | 965.2 mm |
| Travel-Cross | 15" | 381 mm |
| Power | 3 hp | 2.2 kW |
| RPM | 4,300 RPM | 4,300 RPM |
| Taper | R8 | R8 |
| Dimensions | 70”L x 63”W x 85”H | 70”L x 63”W x 85”H |
| Weight | 3200 Lbs | 3200 Lbs |
Specifications:
Model - S-3VS
Year - 08/2000
Table Size - 10” x 50”
Table Travel (X Axis) - 38”
Saddle Travel (Y Axis) - 15”
Knee Travel (Z Axis) - 15”
Quill Travel - 5”
Spindle Taper - R8
Spindle Speeds - 60 to 4300 RPM

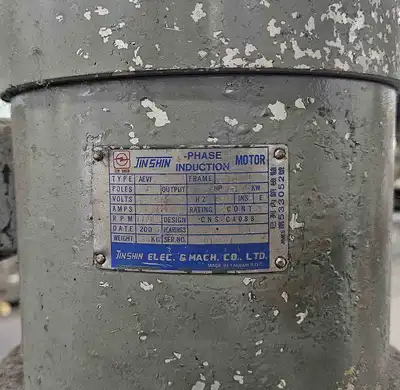

Spindle Motor - 3 HP
Electrics - 575V/3PH/60HZ
Made In - Taiwan
Approximate Weight - 3,200 LBS
Approximate Overall Dimension - 70”L x 63”W x 85”H
Equipped With:

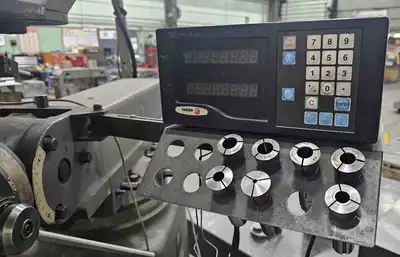

Fagor Two Axis Digital Readout
Variable Spindle Speeds
Swivel Head
