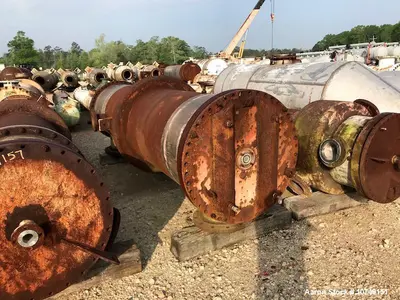

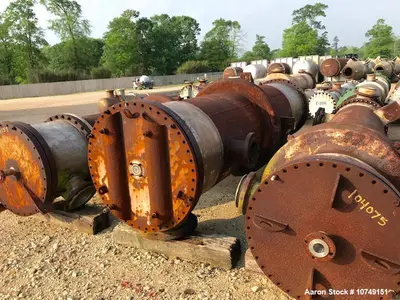

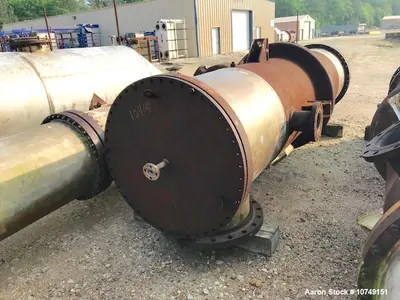

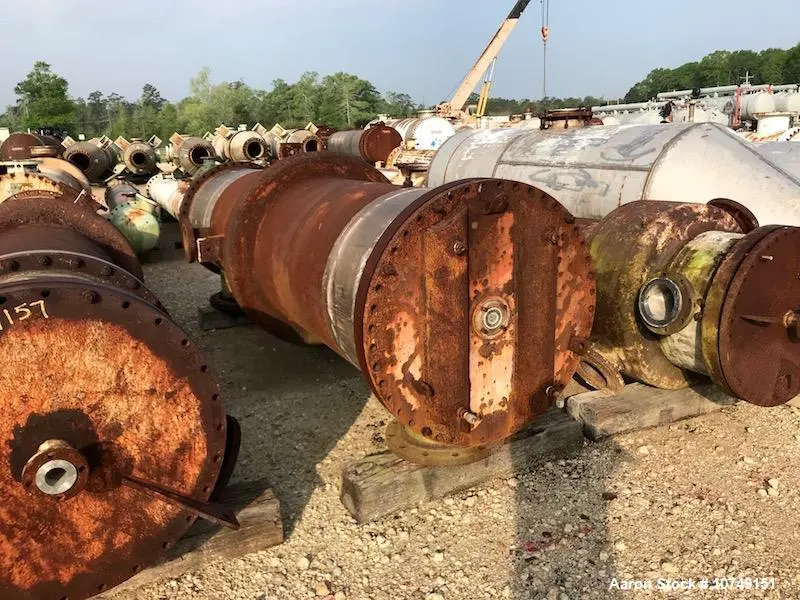

Used – J. Oat & Sons 1130 sq. ft. Vertical Shell & Tube Heat Exchanger – Carbon Steel Shell, 316 SS Tubes

Used J. Oat & Sons Vertical Shell and Tube Heat Exchanger. 1130 sq. foot. With expansion joint. Carbon steel shell. 316 stainless steel tubes. 316 stainless steel heads. Psi (s) : 300 psi @ 600 degrees F. shell. Fv @ 550 degrees F tubes. 1.25" tube diameter. 8'0" tube length. (434) tube holes. 1.5" tri tube pitch. 14 bwg tube wall. NB code. (2) 6" shell nozzles. 14" and 24" tube nozzles. (7) baffles.13.5" baffle spacing. 3'0" shell diameter. 13'10" overall length.

Used Equipment Facts About This Machine
Manufacturer Information

Brand: J. Oat & Sons

Category: Vertical Shell & Tube Heat Exchanger

Certification: NB Code (ASME registered)

Description
The J. Oat & Sons 1130 sq. ft. vertical shell & tube heat exchanger is engineered for high-pressure, high-temperature industrial service. Featuring a carbon steel shell with 316 stainless steel tubes and heads, this exchanger provides excellent strength and corrosion resistance for demanding process applications.
This unit includes 434 stainless steel tubes (1.25” OD, 14 BWG, 8’ length) on a 1.5” triangular pitch, with a 1-pass shell / multiple-pass tube configuration. It is rated 300 psi @ 600°F on the shell side and full vacuum @ 550°F on the tube side, making it suitable for both pressure and vacuum services.
Designed with 7 baffles at 13.5” spacing, dual 6” shell nozzles, 14” and 24” tube nozzles, and an expansion joint, this exchanger is built to NB Code and TEMA standards.
Specifications

Heat Transfer Area: 1130 sq. ft.

Configuration: Vertical shell & tube

Shell Material: Carbon steel

Tube Material: 316 stainless steel, 434 tubes, 1.25” OD, 14 BWG, 8’ length

Head Material: 316 stainless steel

Tube Pitch: 1.5” triangular pitch

Shell Rating: 300 psi @ 600°F

Tube Rating: Full vacuum @ 550°F

Baffles: 7, spaced 13.5”

Shell Diameter: 3’0” (36”)

Overall Length: 13’10”

Nozzles:

Shell: (2) 6”

Tubes: 14” and 24”

Expansion Joint: Yes

Certification: NB Code (ASME)

Condition: Used, high-pressure design

Applications

Chemical & petrochemical processing (condensers, reboilers, heat recovery)

Oil & gas industry utilities

Pharmaceutical and biotech production

Food & beverage processing

Power generation heat recovery systems

Industrial manufacturing

Water treatment & energy recovery

High-temperature heating/cooling applications

Vacuum condensation systems

Pulp & paper processing

What Might This Be Used For?
This J. Oat & Sons exchanger is ideal for high-pressure, high-temperature service, including chemical reactors, condensers, vacuum systems, and process heat recovery. Its 316 SS tubes and heads provide excellent corrosion resistance, while the 300 psi shell rating ensures durability under demanding industrial conditions.
