Used – Praj Industries 1185 sq. ft. Horizontal Shell & Tube Heat Exchanger – 304L SS Shell, NB Code

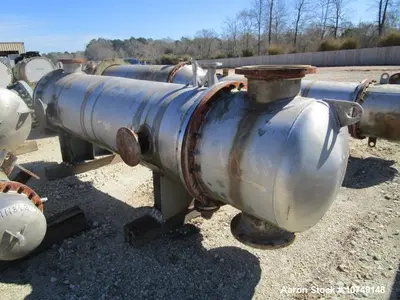

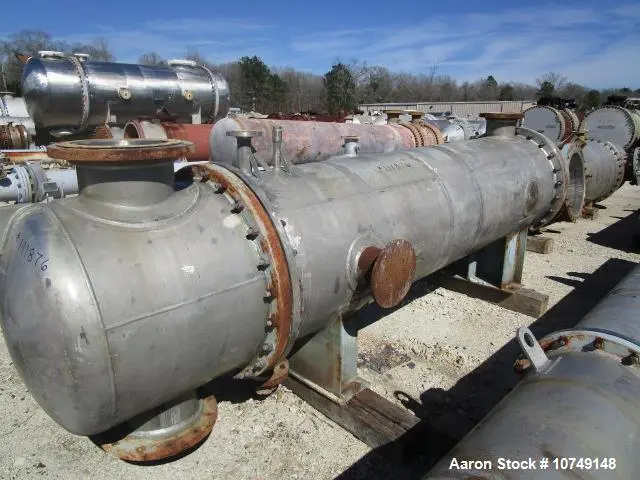

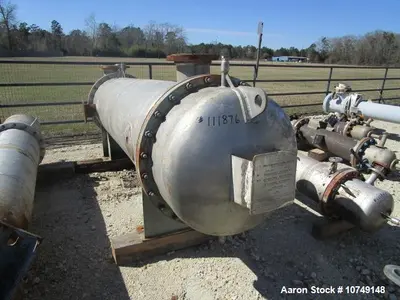

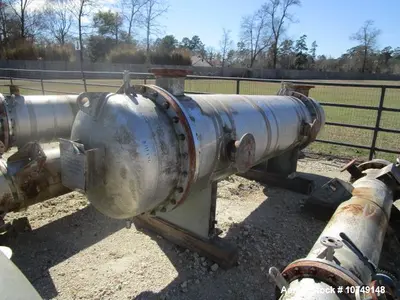

Used Praj Industries 1185 sq. ft. Horizontal Shell & Tube Heat Exchanger 304L SS Shell, NB Code. (2) saddle supports. (4) lifting trunnions. 304L stainless steel shell. 304 stainless steel tubes. 304 stainless steel heads. 25 psi @ 293 degrees F shell. 56 psi @ 122 degrees F. tubes. 1" tube diameter. 9'6" tube length. 460 tube holes. 1.25" tube pitch. .063" tube wall. 1 pass shell. 2 pass tubes. NB code. 4" and 8" shell nozzles. (2) 12" tube nozzles. (9) baffles. 10" baffle spacing. 2'8" shell diameter. 13'8" overall length. Built 2008.

Used Equipment Facts About This Machine
Manufacturer Information

Brand: Praj Industries

Category: Horizontal Shell & Tube Heat Exchanger

Year Built: 2008

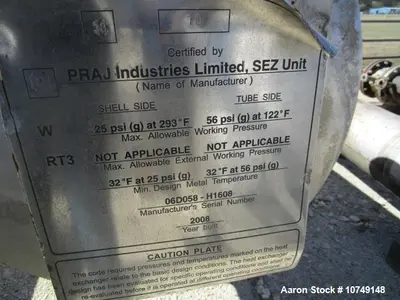

Certification: NB Code (ASME registered)

Description
The Praj Industries 1185 sq. ft. horizontal shell & tube heat exchanger is a stainless steel process exchanger designed for reliable thermal performance in demanding industrial applications. Built with a 304L stainless steel shell, 304 stainless steel tubes, and 304 stainless steel heads, it provides excellent corrosion resistance and durability.
This exchanger features 460 stainless steel tubes (1” OD, .063” wall, 9’6” length) on a 1.25” pitch, with a 1-pass shell / 2-pass tube configuration. Rated 25 psi @ 293°F (shell) and 56 psi @ 122°F (tubes), it is suitable for medium-pressure process streams. The unit includes 9 baffles at 10” spacing, dual saddle supports, and 4 lifting trunnions for secure installation and handling.
With NB code compliance, multiple shell and tube nozzles, and a 13’8” overall length, this exchanger is well-suited for chemical, food, beverage, and pharmaceutical industries.
Specifications

Heat Transfer Area: 1185 sq. ft.

Configuration: Horizontal, 1-pass shell / 2-pass tubes

Shell Material: 304L stainless steel

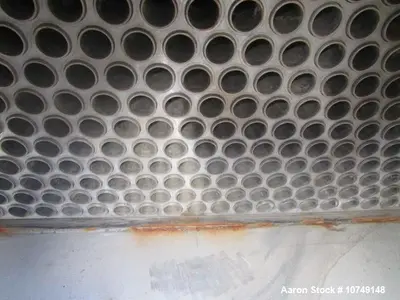

Tube Material: 304 stainless steel, 460 tubes, 1” OD, .063” wall, 9’6” length

Head Material: 304 stainless steel

Tube Pitch: 1.25”

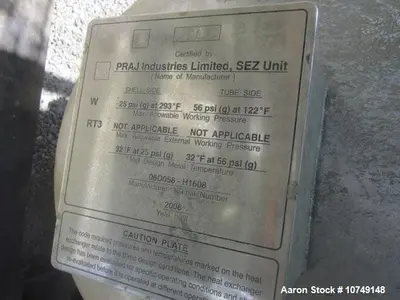

Shell Rating: 25 psi @ 293°F

Tube Rating: 56 psi @ 122°F

Baffles: 9, spaced 10”

Supports: (2) saddle supports, (4) lifting trunnions

Shell Diameter: 2’8” (32”)

Overall Length: 13’8”

Nozzles:

Shell: 4” and 8”

Tubes: (2) 12”

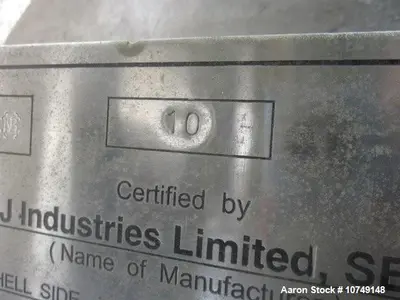

Certification: NB Code

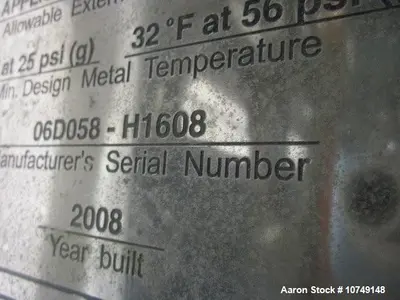

Year Built: 2008

Condition: Used, stainless steel construction

Applications

Chemical processing (cooling, condensation, reboiling)

Food & beverage thermal processing

Pharmaceutical and biotech production

Water treatment & utility heat recovery

Oil & gas processing

Industrial manufacturing

HVAC & energy recovery systems

Pulp & paper industry heat transfer

Power generation support systems

General process heating and cooling

What Might This Be Used For?
This Praj Industries stainless steel heat exchanger is designed for medium-pressure heat transfer applications in chemical, food, pharmaceutical, and energy industries. Its 304L/304 stainless construction and NB code design make it reliable for corrosion-prone or sanitary service environments.
