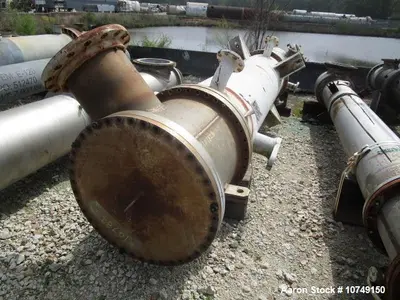

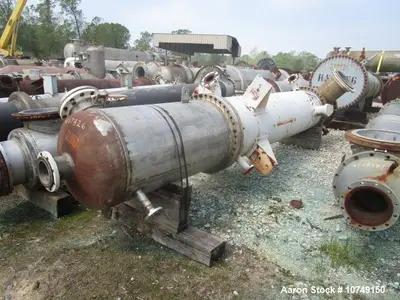

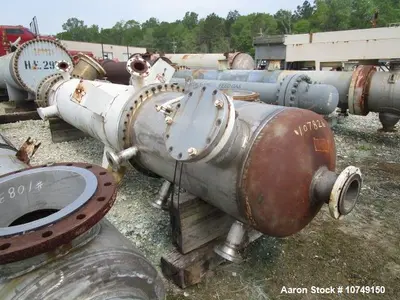

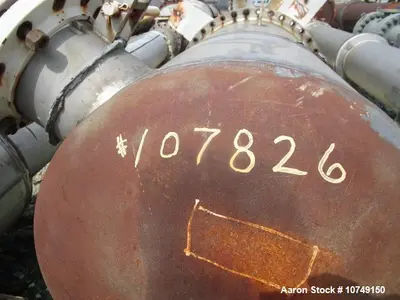

Used – Ohmstede 1083 sq. ft. Vertical Shell & Tube Heat Exchanger – Carbon Steel Shell, 304L SS Tubes

Manufacturer Information

Brand: Ohmstede

Category: Vertical Shell & Tube Heat Exchanger

Year Built: 1999

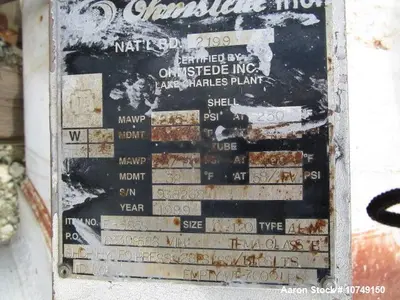

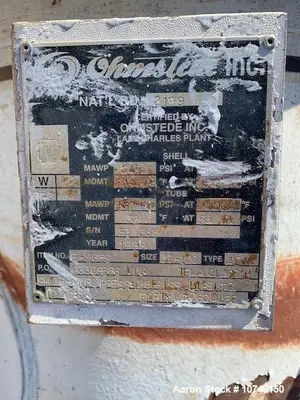

Certification: NB Code (ASME registered)

Design Type: AEM TEMA type

Description
The Ohmstede 1083 sq. ft. vertical shell & tube heat exchanger is built for industrial-scale thermal transfer in demanding process environments. Designed with a carbon steel shell, 304L stainless steel tubes, and 304L stainless steel heads, it provides both strength and corrosion resistance.

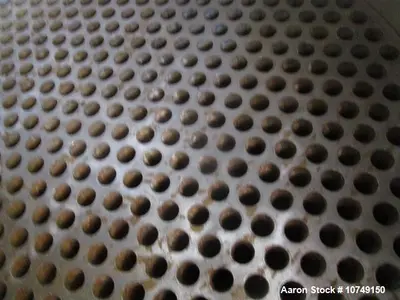

This exchanger includes 428 stainless steel tubes (1” OD, .065” wall, 10’ length) on a 1.25” triangular pitch, with a 1-pass shell / 1-pass tube configuration. It is rated 245 psi @ 250°F (shell) and 58 FV psi @ 400°F (tubes).
Featuring 15 baffles at 6.5” spacing, multiple shell and tube nozzles, and NB code certification, this exchanger is well-suited for chemical, energy, food, and industrial applications. With a 2’6” shell diameter and 18’4” overall length, it’s a large-capacity unit designed for reliability and durability.
Specifications

Heat Transfer Area: 1083 sq. ft.

Configuration: Vertical, 1-pass shell / 1-pass tubes

Shell Material: Carbon steel

Tube Material: 304L stainless steel, 428 tubes, 1” OD, .065” wall, 10’ length

Head Material: 304L stainless steel

Tube Pitch: 1.25” triangular

Shell Rating: 245 psi @ 250°F

Tube Rating: 58 FV psi @ 400°F

Baffles: 15, 6.5” spacing

Shell Diameter: 2’6” (30”)

Overall Length: 18’4”

Nozzles:

Shell: 2”, (2) 4”

Tubes: 2”, (4) 3”, 6”, 10”, 16”

Design Type: AEM TEMA type

Certification: NB Code

Year Built: 1999

Condition: Used, good operational condition

Applications

Chemical processing (heat recovery, condensation, reboiling)

Petrochemical plants & refineries

Food & beverage processing

Pharmaceutical and biotech production

Power generation cooling/heating systems

Water treatment & heat recovery

Oil & gas industry utilities

Industrial manufacturing

HVAC & district heating/cooling loops

Pulp & paper processing

What Might This Be Used For?
This Ohmstede shell & tube heat exchanger is designed for heavy-duty thermal transfer in industrial and process applications. Its high shell pressure rating (245 psi) and 304L stainless steel tube bundle make it an excellent choice for chemical, petrochemical, food, and power plant environments.
