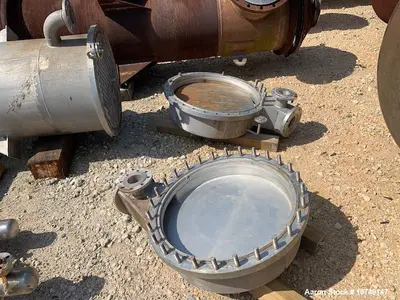

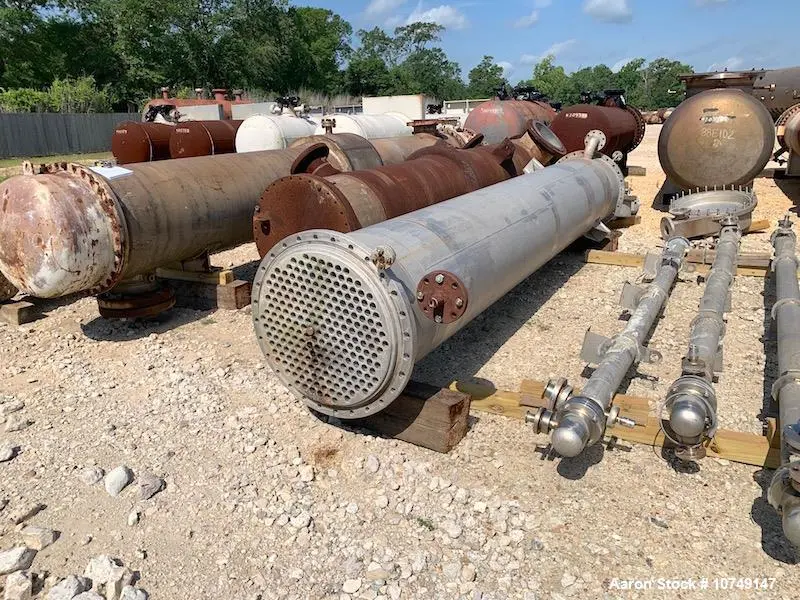

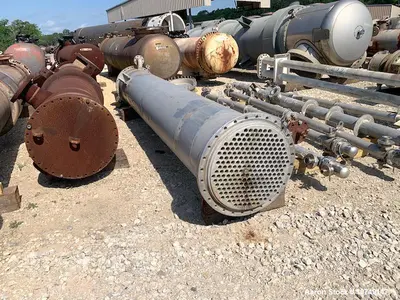

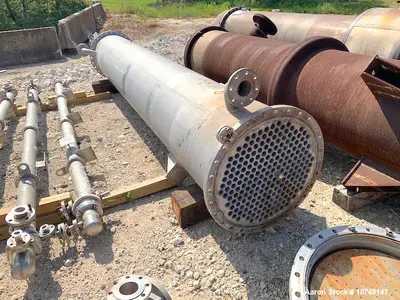

Used – 1181 Sq. Ft. Stainless Steel Vertical Shell & Tube Heat Exchanger – Dipl.-Ing. Paul Schwingel GmbH
Overview
Description
Used 1181 Sq. Foot Stainless Steel Vertical Shell and Tube Heat Exchanger. Built by Dipl Jng Paul Schwingel Gmbh. Tangential nozzles. 316 stainless steel shell. 316 stainless steel tubes. 316 stainless steel heads. 88 psi @ 392 degrees F shell. 88 psi @ 392 degrees F tubes. 1.32" tube diameter. 15'0" tube length. 228 tube holes. 1.57" tri tube pitch. .078" tube wall. 1 pass shell. 1 pass tubes. Special tema type. (2) 3" shell nozzles. (2) 4" tube nozzles. 11 baffles. 1'3" baffle spacing. 2'4" shell diameter. 15'0" overall length. Built 1985.
Specifications
Used Equipment Facts About This Machine
Manufacturer Information
Brand: Dipl.-Ing. Paul Schwingel GmbH
Category: Vertical Shell & Tube Heat Exchanger
Year Built: 1985
Design Type: Special TEMA type
Certification: Built to industrial process standards
Description
The 1181 sq. ft. vertical shell & tube heat exchanger built by Dipl.-Ing. Paul Schwingel GmbH is a heavy-duty stainless steel unit designed for industrial heat transfer. With a 316 stainless steel shell, tubes, and heads, it provides excellent corrosion resistance and durability for demanding chemical, food, and process applications.
This exchanger is rated 88 psi @ 392°F (both shell & tubes), equipped with 228 tubes (1.32” OD, .078” wall, 15’ length) on a 1.57” triangular pitch. The configuration is 1-pass shell / 1-pass tubes, supported by 11 baffles spaced at 1’3”, ensuring efficient thermal performance.
It also includes tangential nozzles for smooth flow entry, (2) 3” shell nozzles, (2) 4” tube nozzles, and measures 15’ overall length with a 2’4” shell diameter.
Specifications
Heat Transfer Area: 1181 sq. ft.
Manufacturer: Dipl.-Ing. Paul Schwingel GmbH
Configuration: Vertical, 1-pass shell / 1-pass tubes
Shell Material: 316 stainless steel
Tube Material: 316 stainless steel, 228 tubes, 1.32” OD, .078” wall, 15’ length
Head Material: 316 stainless steel
Tube Pitch: 1.57” triangular pitch
Shell Rating: 88 psi @ 392°F
Tube Rating: 88 psi @ 392°F
Baffles: 11, spaced 1’3”
Shell Diameter: 2’4” (28”)
Overall Length: 15’0”
Nozzles:
Shell: (2) 3” tangential nozzles
Tubes: (2) 4”
Design Type: Special TEMA type
Year Built: 1985
Condition: Used, stainless steel construction
Applications
Chemical process industries (cooling, condensation, heat recovery)
Food & beverage thermal processing
Pharmaceutical and biotech manufacturing
Petrochemical plants & refineries
Power generation heat recovery systems
Water treatment and energy recovery
Industrial manufacturing utilities
HVAC and district heating/cooling loops
Oil & gas processing
Specialty process plants requiring stainless steel heat transfer
What Might This Be Used For?
This Schwingel stainless steel shell & tube exchanger is ideal for process industries requiring high corrosion resistance and thermal reliability. Its 316 stainless steel construction and NB code design make it a strong fit for chemical, food, pharma, and energy applications.
