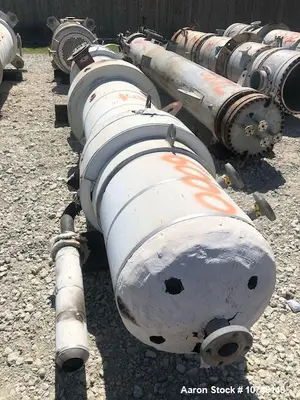

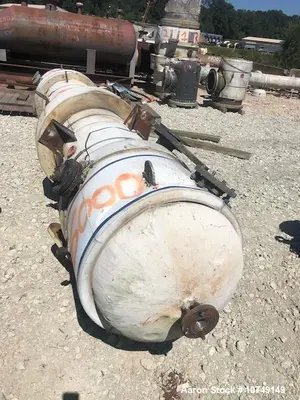

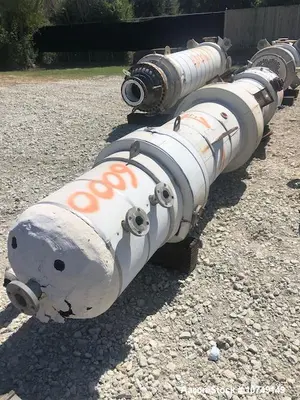

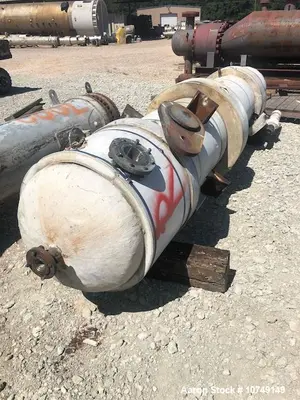

Used – Southern Heat Exchanger 733 sq. ft. Vertical Shell & Tube Heat Exchanger – Carbon Steel Shell, 316L SS Tubes

Used Southern Heat Exchanger 733 sq. ft. Vertical Shell & Tube Heat Exchanger Carbon Steel Shell, 316L SS Tubes. 24" diameter x 10'0" f/f. 75fv psi @ 300 deg. F shell. 75fv @ 300 deg. F. tubes. With expansion joint: Carbon steel shell. 316l stainless steel tubes. 316L stainless steel heads. 1" tube diameter. 10'0" tube length. (280) tube holes. 1.25" tri tube pitch. 16 bwg tube wall. 1 pass shell. 1 pass tubes. NB code. Bem tema type. (2) 3" shell nozzles. (4) 2", 3" and 4" tube nozzles. (20) baffles. 5" baffle spacing. 2'0" shell diameter.16'6" overall length. Built 1989. Previous service: Topping column chilled h20 condenser.

Used Equipment Facts About This Machine
Manufacturer Information

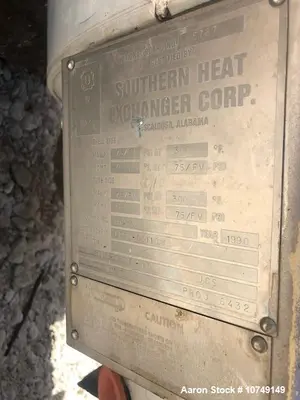

Brand: Southern Heat Exchanger

Category: Vertical Shell & Tube Heat Exchanger

Year Built: 1989

Certification: NB Code (ASME registered)

Design Type: Bem TEMA type

Description
The Southern Heat Exchanger 733 sq. ft. vertical shell & tube heat exchanger is a robust and corrosion-resistant unit designed for reliable industrial thermal transfer. Featuring a carbon steel shell with 316L stainless steel tubes and heads, this exchanger is ideal for applications where strength and corrosion resistance are critical.
This exchanger contains 280 tubes (1” OD, 16 BWG, 10’ length) on a 1.25” triangular pitch, with a 1-pass shell / 1-pass tube design. It operates at 75 FV psi @ 300°F on both shell and tube sides. The unit includes an expansion joint, 20 baffles at 5” spacing, and multiple shell and tube nozzles for integration.
It measures 24” shell diameter, 16’6” overall length, and was previously in service as a topping column chilled water condenser, demonstrating proven performance in demanding cooling duties.
Specifications

Heat Transfer Area: 733 sq. ft.

Configuration: Vertical, 1-pass shell / 1-pass tubes

Shell Material: Carbon steel

Tube Material: 316L stainless steel, 280 tubes, 1” OD, 16 BWG, 10’ length

Head Material: 316L stainless steel

Tube Pitch: 1.25” triangular pitch

Shell Rating: 75 FV psi @ 300°F

Tube Rating: 75 FV psi @ 300°F

Baffles: 20, spaced 5”

Expansion Joint: Yes

Shell Diameter: 2’0” (24”)

Overall Length: 16’6”

Nozzles:

Shell: (2) 3”

Tubes: (4) nozzles (2”, 3”, and 4”)

Design Type: Bem TEMA type

Year Built: 1989

Previous Service: Topping column chilled water condenser

Applications

Chemical processing & petrochemicals

Condensers for distillation/topping columns

Food & beverage thermal processing

Pharmaceutical manufacturing

Power generation heat recovery

Water treatment and cooling systems

Oil & gas refining & utilities

HVAC and district energy loops

Industrial manufacturing processes

General heating and cooling duties

What Might This Be Used For?
This Southern shell & tube exchanger is well-suited for industrial condensers, chemical processing, and cooling operations. Its 316L stainless steel tubes make it ideal for corrosion-prone environments and chilled water or process fluid services requiring NB code compliance.
