Used – Southern Heat Exchanger 1220 sq. ft. Vertical Shell & Tube Heat Exchanger

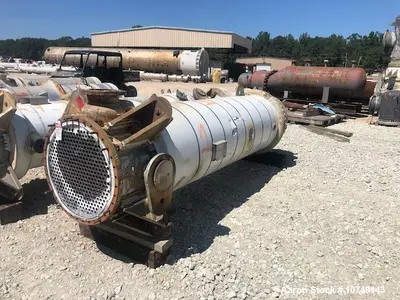

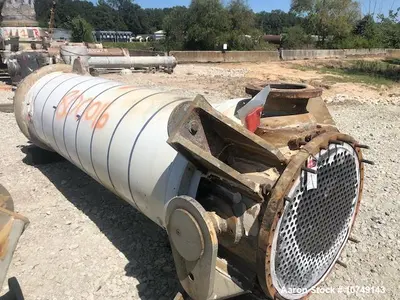

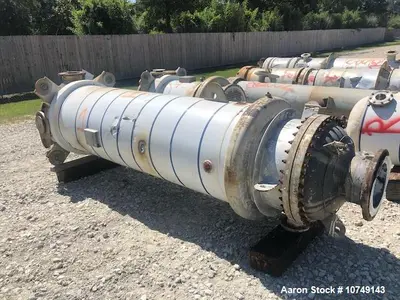

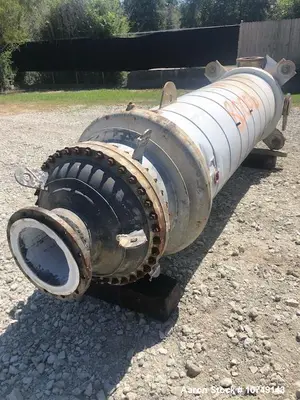

Used Southern Heat Exchanger 1220 sq. ft. Vertical Shell and Tube Heat Exchanger. 28" diameter x 12'0" f/f. Carbon steel shell, 75fv psi @ 300 deg. F. 316L stainless steel tubes, (388) 1" o.d. x 16 bwg, 75fv @ 300 deg. F. 316L stainless steel heads. With expansion joint. 12'0" tube length. 1.25" tri tube pitch. 16 bwg tube wall. 1 pass shell; 1 pass tubes. NB code. Bem Tema type. 12" and 18" shell nozzles. 2", 4" and 8" tube nozzles. 3 baffles. 35" baffle spacing. 2'4" shell diameter. 17'3" overall length. Built 1989.

Used Equipment Facts About This Machine
Manufacturer Information

Brand: Southern Heat Exchanger

Category: Vertical Shell & Tube Heat Exchanger

Year Built: 1989

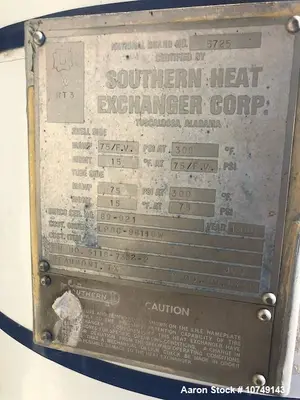

Certification: NB Code (ASME registered)

Description
The Southern Heat Exchanger 1220 sq. ft. vertical shell and tube heat exchanger is a heavy-duty industrial exchanger designed for reliable thermal transfer in demanding process applications. Constructed with a carbon steel shell and 316L stainless steel tubes and heads, it provides excellent resistance to corrosion while maintaining durability under high pressure and temperature conditions.

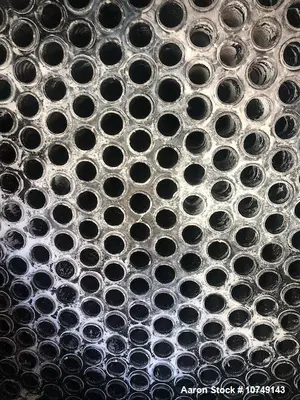

This exchanger features 388 tubes (1” OD, 16 BWG) arranged on a 1.25” triangular pitch with 12’ tube length, configured for 1-pass shell / 1-pass tube service. It is equipped with an expansion joint for thermal flexibility, three baffles with 35” spacing, and multiple nozzles for easy integration into plant piping.
With a NB code stamp and Bem TEMA type design, this exchanger is a proven solution for chemical, petrochemical, power, and industrial process industries.
Specifications

Heat Transfer Area: 1220 sq. ft.

Configuration: Vertical, shell & tube, 1-pass shell / 1-pass tube

Shell Material: Carbon steel

Tube Material: 316L stainless steel, 388 tubes, 1” OD, 16 BWG, 12’ length

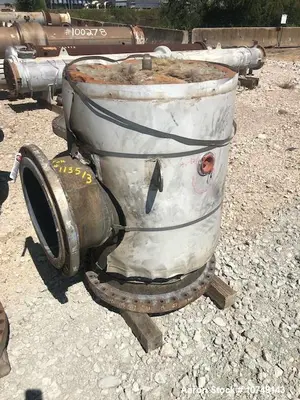

Head Material: 316L stainless steel

Tube Pitch: 1.25” triangular pitch

Shell Pressure Rating: 75 FV psi @ 300°F

Tube Pressure Rating: 75 FV psi @ 300°F

Shell Diameter: 28” (2’4”)

Overall Length: 17’3”

Baffles: 3, spaced at 35”

Nozzles:

Shell: 12” and 18”

Tubes: 2”, 4”, and 8”

Expansion Joint: Yes

Design Code: NB Code, Bem TEMA type

Year Built: 1989

Applications

Chemical process industries (heat recovery, condensation, reboiling)

Petrochemical plants & refineries

Power generation cooling/heating systems

Food & beverage processing (sanitary heating/cooling loops)

Pharmaceutical heat transfer

Oil & gas processing

Water treatment & cooling towers

Industrial manufacturing

HVAC and district heating loops

General process heating & cooling applications

What Might This Be Used For?
This Southern shell & tube exchanger is designed for industrial heat transfer applications where corrosion resistance, durability, and code compliance are critical. It’s ideal for process industries requiring reliable heating or cooling of liquids, vapors, or gases under pressure.
