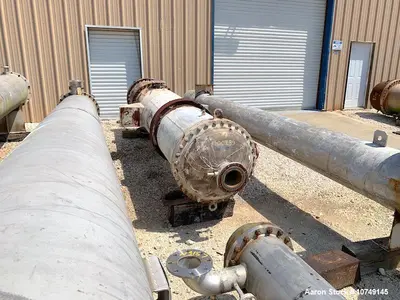

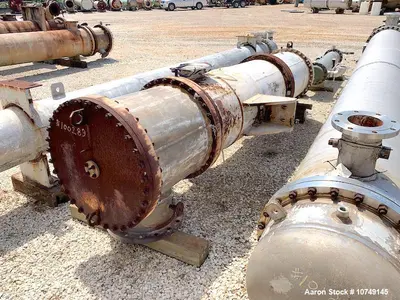

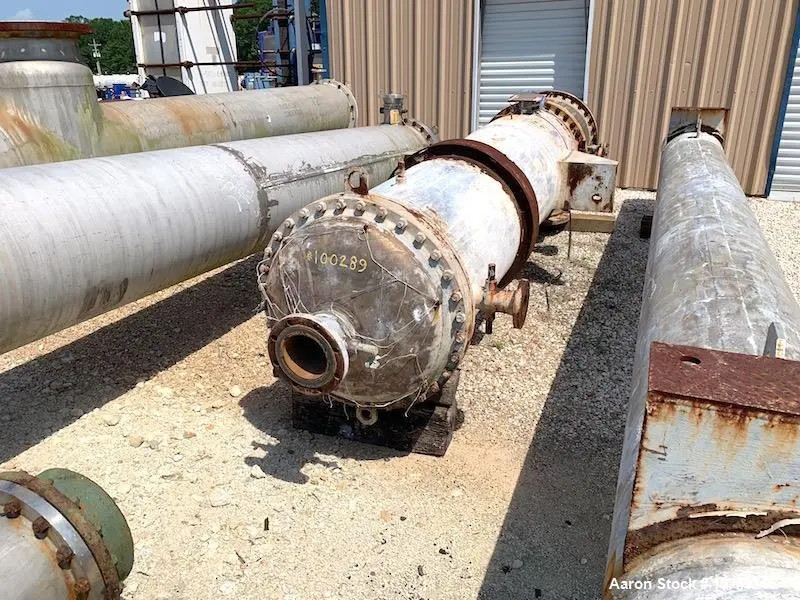

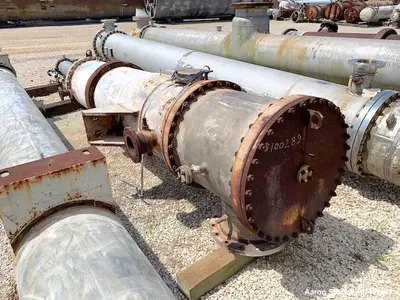

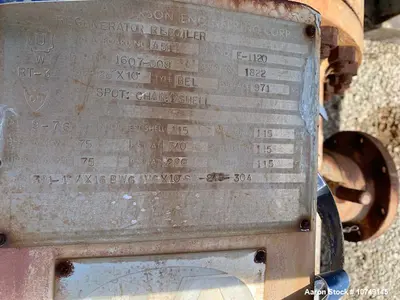

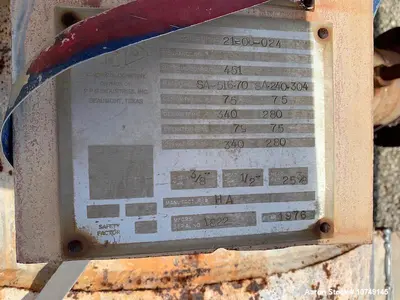

Used – Hughes Anderson 971 sq. ft. Vertical Shell & Tube Heat Exchanger – Carbon Steel Shell, 304 SS Tubes
Overview
Manufacturer Information
Brand: Hughes Anderson
Category: Vertical Shell & Tube Heat Exchanger
Certification: NB Code (ASME registered)
Design Type: Bel TEMA type
Description
The Hughes Anderson 971 sq. ft. vertical shell & tube heat exchanger is engineered for reliable industrial heat transfer. Built with a carbon steel shell, 304 stainless steel tubes, and 304 stainless steel heads, it delivers corrosion resistance and strength for a wide range of applications.
This exchanger features 391 tubes (1” OD, 16 BWG, 10' length), arranged on a 1.25” triangular pitch, with a 1-pass shell / 1-pass tube design. It is rated 75 psi @ 340°F (shell) and 75 psi @ 280°F (tubes), and includes 3 baffles with 2’5” spacing for efficient heat distribution. An expansion joint is built in for thermal flexibility.
With NB code compliance and Bel TEMA construction, this exchanger is ready for chemical, power, food, and industrial processing applications.
Specifications
Heat Transfer Area: 971 sq. ft.
Configuration: Vertical, 1-pass shell / 1-pass tubes
Shell Material: Carbon steel
Tube Material: 304 stainless steel, 391 tubes, 1” OD, 16 BWG, 10’ length
Head Material: 304 stainless steel
Tube Pitch: 1.25” triangular
Shell Rating: 75 psi @ 340°F
Tube Rating: 75 psi @ 280°F
Baffles: 3, with 2’5” spacing
Shell Diameter: 2’4” (28”)
Overall Length: 14’2”
Nozzles:
Shell: 3” and 6”
Tubes: 6” and 16”
Expansion Joint: Yes
Design Code: NB Code, Bel TEMA type
Applications
Chemical & petrochemical plants (heating, cooling, condensation, reboiling)
Power generation cooling systems
Food & beverage processing
Pharmaceutical and biotech operations
Oil & gas process streams
Industrial manufacturing & utilities
Water treatment & heat recovery loops
HVAC & district heating applications
Pulp & paper processing
General process heating & cooling
What Might This Be Used For?
This Hughes Anderson shell & tube heat exchanger is ideal for medium to large-scale heat transfer applications where durability, corrosion resistance, and NB code compliance are essential. Perfect for chemical plants, utilities, food processing, and industrial process systems.
Specs
Heat Transfer Area: 971 sq. ft.
Configuration: Vertical, 1-pass shell / 1-pass tubes
Shell Material: Carbon steel
Tube Material: 304 stainless steel, 391 tubes, 1” OD, 16 BWG, 10’ length
Head Material: 304 stainless steel
Tube Pitch: 1.25” triangular
Shell Rating: 75 psi @ 340°F
Tube Rating: 75 psi @ 280°F
Baffles: 3, with 2’5” spacing
Shell Diameter: 2’4” (28”)
Overall Length: 14’2”
Nozzles:
Shell: 3” and 6”
Tubes: 6” and 16”
Expansion Joint: Yes
Design Code: NB Code, Bel TEMA type
