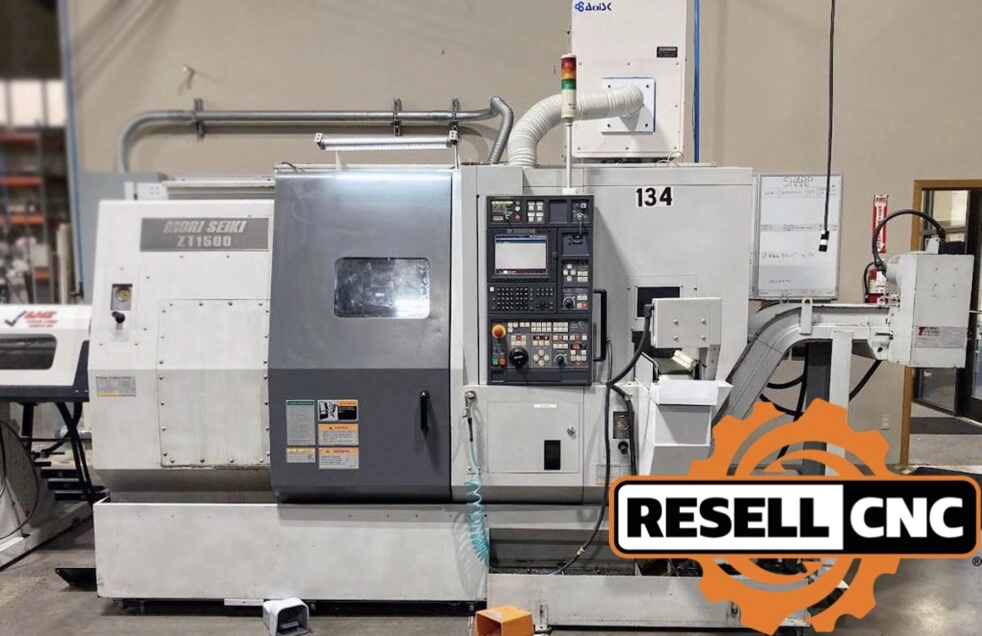

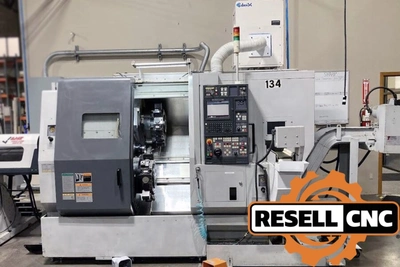

USED 2004 Mori Seiki ZT-1500Y

X2nd Chuck Description: Kitagawa BB206 Chuck

X2nd Turret Live Tooling: false
X2nd Turret Positions: 16
X4th Axis: false
X5th Axis: true

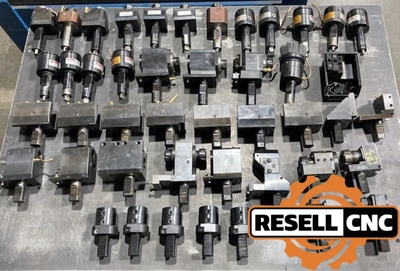

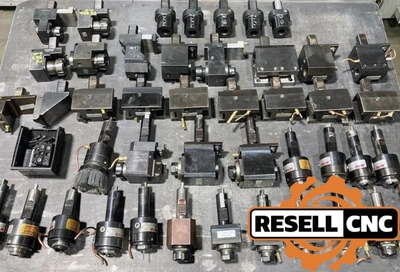

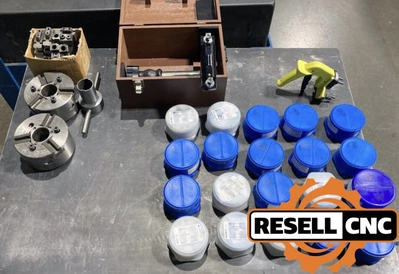

Additional Machine Specs: Includes Misc.Tool holders and FlexC 65 Collet Chucks

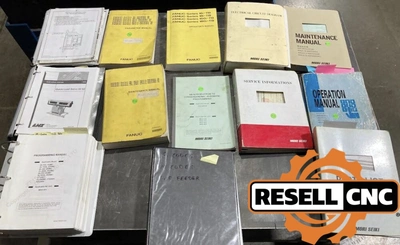

All Available Manuals

Spindle 2 Axis Travel: 20.67"

Bar Capacity: 2.05
Barfeeder Make Model: LNS Bar-Feeder
B Axis: false
C Axis: true
Chip Removal: Chip Conveyor
Chuck Description: Kitagawa BB206 Chuck

Chuck Size: 6.0
Chuck Type: Hydraulic

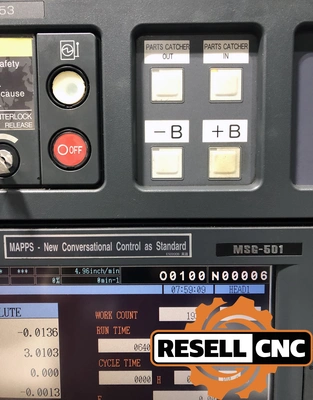

Control Make Model: Mori Seiki MSG-501(Fanuc 18i) CNC
Distance Between Centers: 29.53
Electrical: 220
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: true
Machine Options: Parts Catcher, Mist Collector
Max Cutting Turning Diameter: 7.48
Max Swing Over Bed: 9.84
Max Swing Over Cross Slide: 16.5
Max Turning Cutting Length: 4.72
Programmable Tailstock: false
Rapid Traverse: 1260
Second Bar Capacity: 2.5
Second Chuck Size: 6.0
Second Spindle Bore: 3.58
Second Spindle Motor: 25
Second Spindle Nose: A2-5
Second Spindle Speed: 5300
Single Turret: false
Single Turret Live Tooling: false
Spindle Bore: 3.5
Spindle Motor: 30
Spindle Nose: A2-5
Spindle Speed: 6000.0
Sub Spindle: true
Tailstock: false
Tool Positions: 16.0
Total Spindles: 2
Turret Max Rpm: 6000

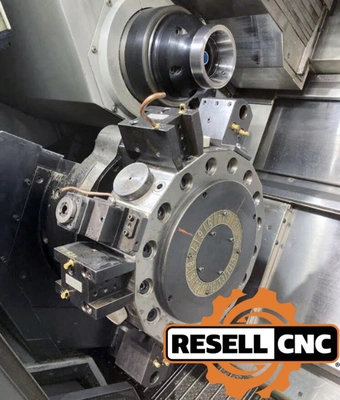

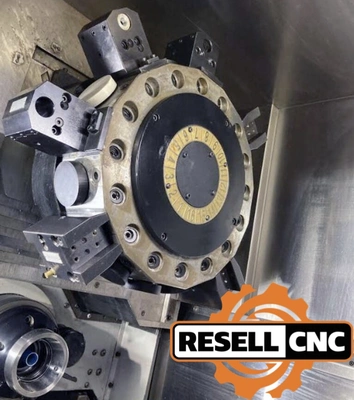

Turret Options: Tool Holder Type : VDI 30

Twin Turret: false
X Travel: 5.51
Y Axis: true
Z Travel: 17.72
