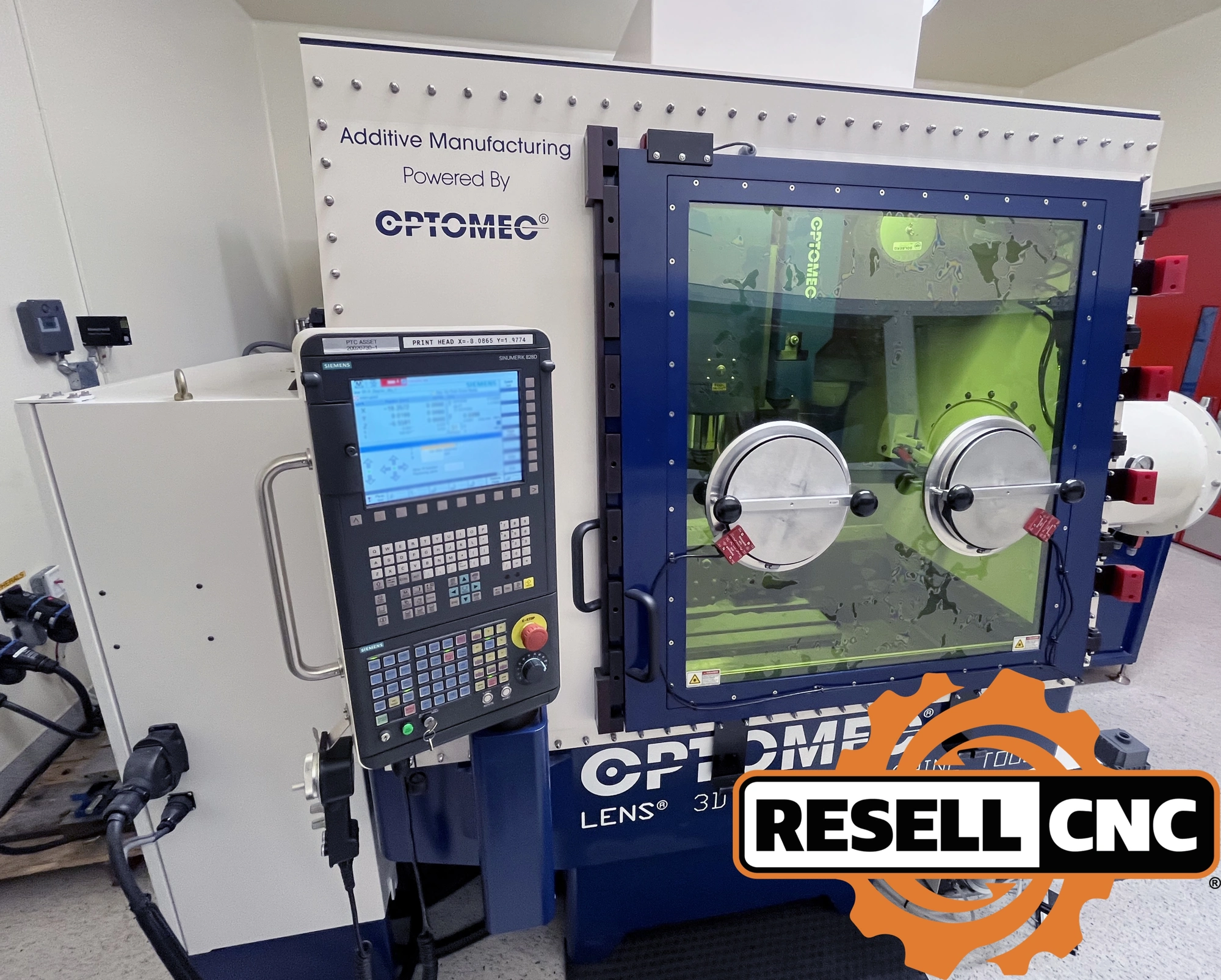

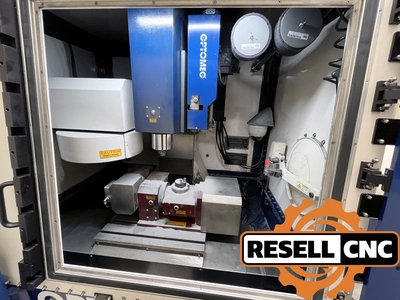

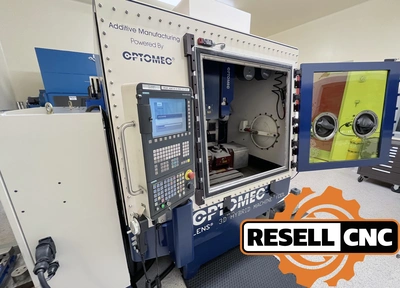

USED 2018 Fryer Optomec CM-15 VM w/ Lens 500 3D Printer

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: M-Code Commands

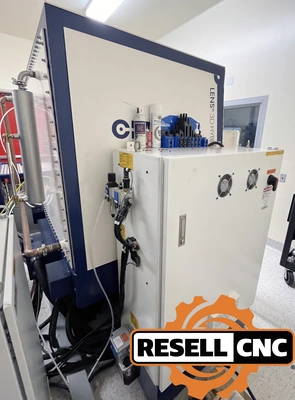

Additional Machine Specs: The LENS 500 Hybrid Controlled Atmosphere System sets a new standard in affordability and performance for titanium and aluminum metal additive manufacturing applications. The system incorporates an Optomec proprietary hermetically sealed Class 1 enclosure and an integrated gas purification system that maintains oxygen and moisture levels to below 40 ppm. Only use spherical powders with a minimum of 44 micron diameter to a maximum of 149 micron diameter (−100+325 Mesh).

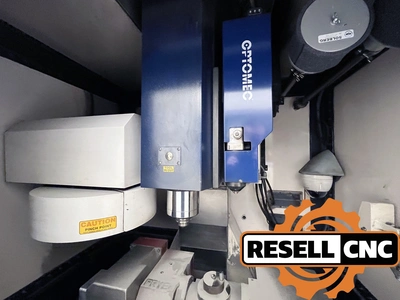

Additive functionality is enabled with integrated Optomec LENS Print Engine technology including Steadyflow™ powder feeders, water-cooled LENS processing head, and SmartAM™ closed loop controls.



A high power fiber laser and advanced Siemens controls complete the system. Powerful Optomec software enables multi-axis build strategies that combine additive and subtractive operations in a single tool path.





Machine Specs

Subtractive Mode XYZ Travel: 500mm x 350mm x 500mm (19.69" x 13.78" x 19.69")

Table Diameter: 4.72"

Center Height in Vertical: 13.27"

Tilting Center Height: 5.71"

Thru-hole Diameter: 1.18"

Motor: 7.5 hp

Spindle: 40-Taper

Spindle RPM: 60-8,000 RPM

ATC: Carousel with 10-Tool Capacity Turret

Coolant: High Pressure Thru-Spindle Coolant

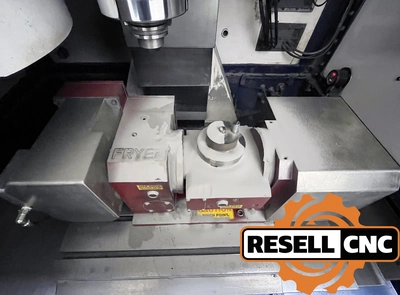

5-Axis Trunnion: X,Y, & Z Movement with Rotation Motion in A (± 90º) and C (360º)



Laser System

Build Envelope: 350mm x 350mm x 500 mm (13.78" x 13.78" x 19.69")

Laser: IPG YLR-1000, 350 W Laser Power (200 mm Focal Length)

Scan System Scan Head: Lens MTS System

Spot Velocity: 703 micron and 772 MW/m

Scan Speed: 20 IPM with Power Feed-rate of 6 RPM

Power Requirements: 25 AMP, 400 VAC, 3 Phase, 50 Hz



Pressure System: LENS HY-20-CA System

Pressure Air: Min 3-12 bar oil free

Inert Gas: Nitrogen or Argon, Currently Running Argon

Positioning Accuracy: ± 5.08 µm

Repeat Accuracy: ± 2.50 µm

Dri-Train: Optomec PureATM Module

Dri-Train Regeneration: Approx. 220 ft^3 of Gas (with 3–5% Hydrogen and the
Remainder of the Argon)



MARPOSS Mida Proping System

Part Positioning

Tool Pre-Setting

Tool Check

Part Measurement

B Axis: false
C Axis: false

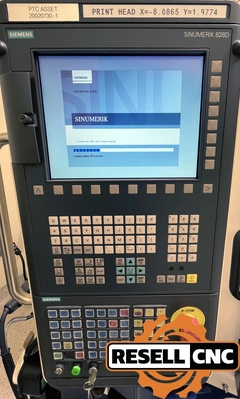

Control Make Model: Siemens Sinumerik 828D CNC Control
Control Options: Color Monitor, G-Code, USB, Macros
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Sub Spindle: false
Tailstock: false
Twin Turret: false
Y Axis: false
