| X Axis | 62.99" | 1,599.9 mm |
| Y Axis | 35.43" | 899.92 mm |
| Z Axis | 31.49" | 799.85 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 30 | 30 |
| Taper | 40 | 40 |
| Table-W | 33.46" | 849.88 mm |
| Table-L | 66.93" | 1,700 mm |
| # Axis | 3 | 3 |
| Control | CNC (Faunc 18i-MB) | CNC (Faunc 18i-MB) |
| Dimensions | 152″ x 144″ x 132″ High Approx. | 152″ x 144″ x 132″ High Approx. |
| Weight | 41887 lbs Approx. | 41887 lbs Approx. |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

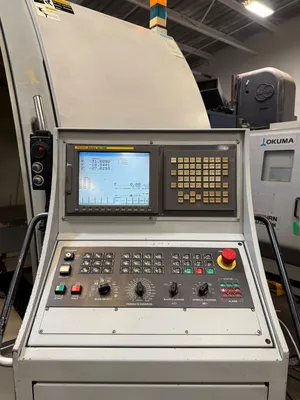

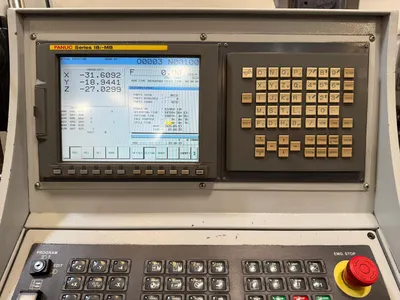

Fanuc Series 18i-MB CNC Control
10,893 Hours Cutting Time
Linear Guideways Construction
40 Spindle Taper
Rigid Tapping
Coolant System

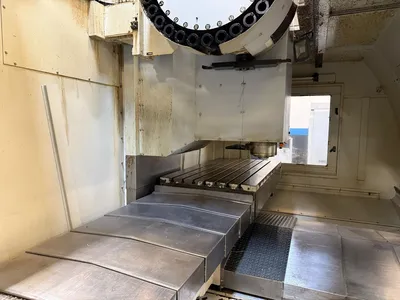

Table:
Length: 66.93″
Width: 33.46″
Number of Std T-Slots: 7
Max Weight on Table: 4,410 lbs
Travel:
X-Axis: 62.99″
Y-Axis: 35.43″
Z-Axis: 31.49″
Rapid Traverse Rates X & Y Axis: 787 Inch Per Minute
Rapid Traverse Rates Z Axis: 590 Inch Per Minute
Cutting Feed Rates: 314 Inch Per Minute
Spindle Nose to Table: (Min.- Max.): 3.93″ – 35.43″

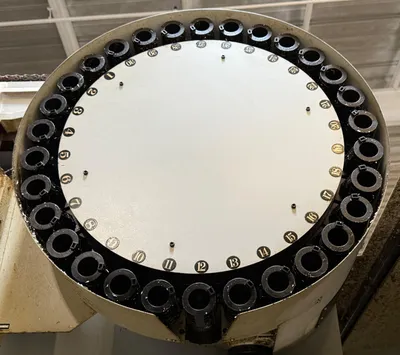

Automatic Tool Changer:
Capacity: 30 Station
Max Tool Dia: 4.921″
Max. tool length: 13.78″
Max. tool weight: 33.06 lbs
Spindle:
Taper Size: 40
Speed Range: 10,000 RPM
Spindle Power: 20 HP
General:
Air Required: 85 psi 6 scfm

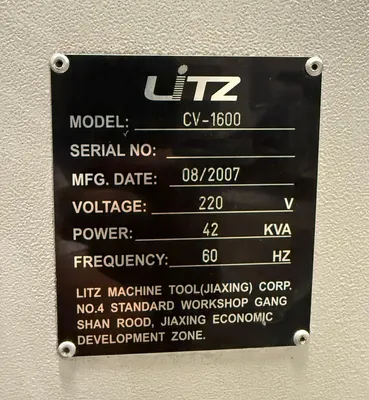

Power: 220v / 50/60 Hz / 3-Phase / 42 kva
Machine Diemensions: 152″ x 144″ x 132″ High Approx.
Weight: 41,887 lbs
10,000 RPM High Speed Spindle
30 Station Automatic tool changer
Spindle Chiller Unit
MPG Hand Wheel Control
Dual Chip Auger
