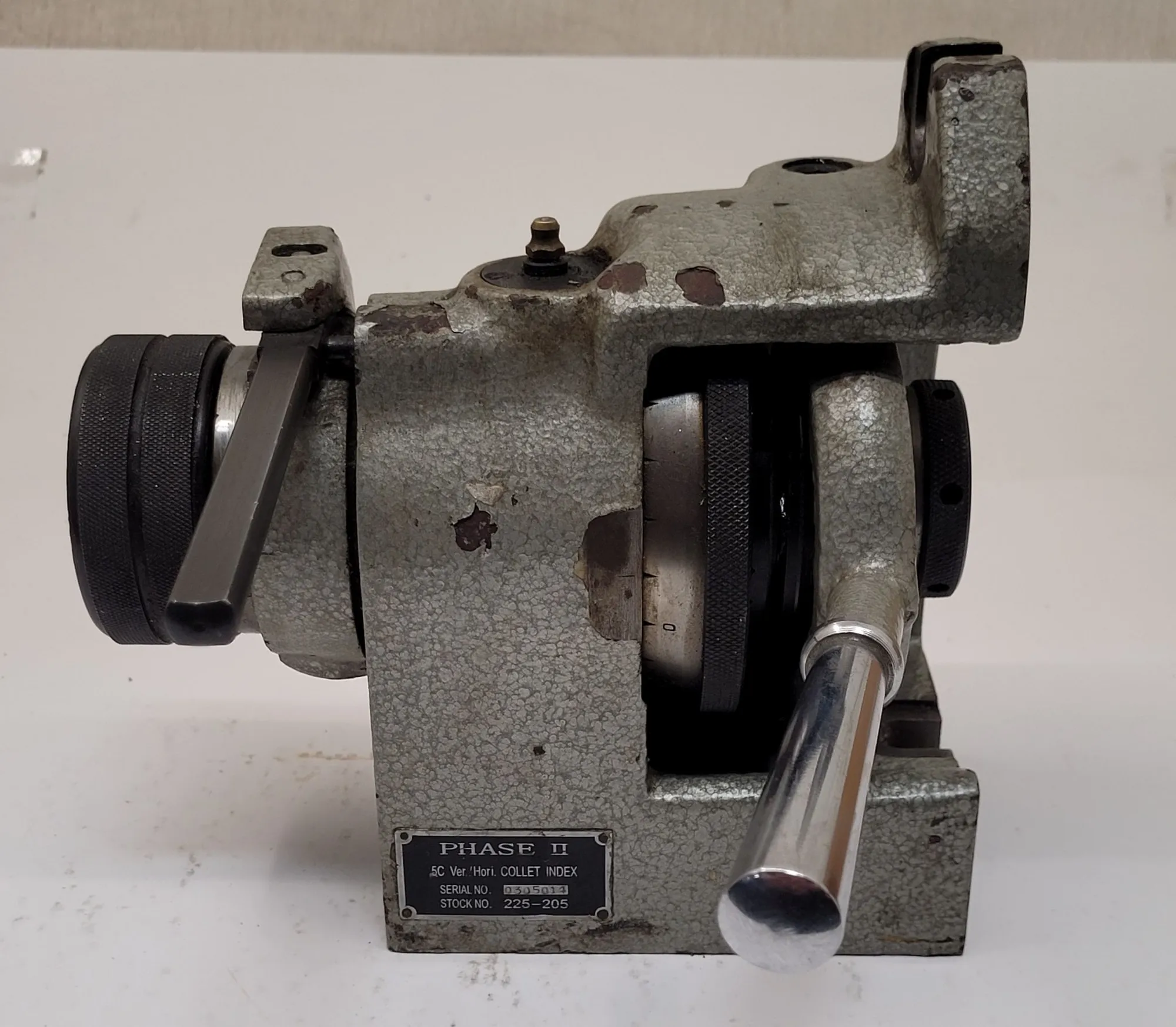

USED PHASE II 5C Collet Fixture

Phase II 5C Horizontal-Vertical Collet Index Fixture, stock number 225-205. Used manual indexer with 24 increments and 5C collet compatibility. Features 1-1/8 inch max collet capacity and 4-inch centerline height. Concentricity 0.0004 inch. Includes collet.

Phase II, 5C Horizontal-Vertical Collet Index Fixture

USED
Indexer Type Standard Collet
Orientation Type Vertical; Horizontal
Operation Type Manual
Number Of Indexing Increments 24
Collet Series Compatibility 5C
Centerline Height (Inch) 4
Maximum Collet Capacity (Inch) 1-1/8
Includes Collet
Concentricity of Spindle (Decimal Inch) 0.0004
Stock Number: 225-205
