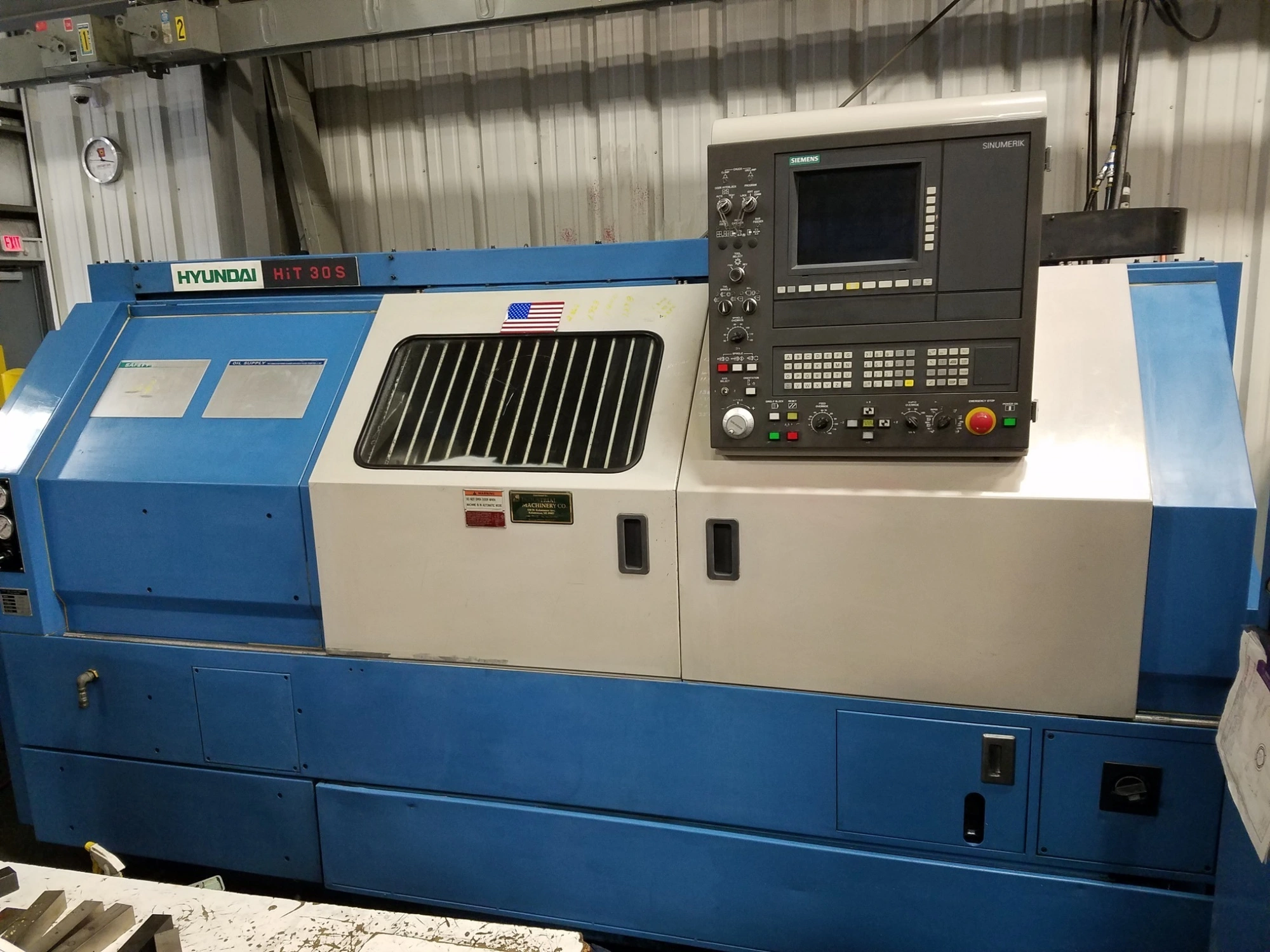

For Sale: 2003 Hyundai HiT-30S CNC Turning Center
We are offering a well-maintained 2003 Hyundai HiT-30S CNC Lathe, a robust and high-performance turning center designed for precision, reliability, and efficiency in demanding machining environments. Manufactured by Hyundai WIA, a global leader in CNC machine tools, the HiT-30S is engineered for consistent performance in both high-volume and complex part production.
| Swing | 26.4" | 670.56 mm |
| Machining Length | 22.8" | 579.12 mm |
| # Axis | 2 | 2 |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3" | 76.2 mm |
| Power | 25 hp | 18.6 kW |
| Max RPM | 3,000 RPM | 3,000 RPM |
| Turning Dia | 17.7" | 449.58 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Fanuc 0i) | CNC (Fanuc 0i) |
| Dimensions | 144 in x 72 in x 84 in | 144 in x 72 in x 84 in |
| Weight | 8,800 lbs | 8,800 lbs |
Hyundai Model HiT 30S 2-Axis CNC Lathe
Maximum Swing Over Bed: 20.08"
Maximum Turning Diameter: 12.6"
Maximum Turning Length: 39.37"
X Axis Travel: 7.87"
Z Axis Travel: 40.16"
Rapid Traverse Rate X Axis: 945 IPM
Rapid Traverse Rate Z Axis: 708 IPM
Spindle Nose: A2-8
Spindle Bore: 3.15"
Maximum Bar Capacity: 2.75"
Spindle Speeds: 30 - 3,000 RPM
Spindle Motor: 30 HP
Approximate Dimensions: 136" x 70" x 75"
Machine Wwight (Approximate): 13,000 LBS
Siemens CNC Control
Tool Presetter
Tailstock
