NEW 2025 OTINUS HYDRAULIC PRESS BRAKE 176T X 122" OT41 Control

OTINUS Hydraulic Press Brake 176 Ton x 122" OT-41 control, In Stock Chicago
Price includes
2-day training including machine installation
1st day up to 8 hours - machine installation and learning how to use the controller.
2nd day up to 8 hours - independent work on the machine under the supervision of our technician - possibility of
programming specific parts that are made by the Client.
Telephone consultation with a specialist from 7.30 to 21.00 (Mon-Sat) – 8 hour time package to be used within 12 months

Terms of cooperation
24 month warranty.
The machine is brand new.
Warranty and after-sales warranty service
The Client is responsible for the machine during unloading and transport on-site.
An Otinus 176 Ton x 122" Press Brake is a powerful hydraulic bending machine with specs like ~176-179 Tons capacity, 122" overall length, around 100-102" between frames, ~7-10" stroke, ~18" daylight, and typically comes with a Delem CNC controller (like DA66T) for precise control, using 460V 3-Phase power, weighing ~21,000 lbs, featuring speeds up to ~170mm/s approach and ~130-180mm/s return.
WHY OTINUS?
OUR TURN-KEY SOLUTION FOR YOUR BUSINESS
We offer comprehensive turn-key solutions that enable a quick and hassle-free implementation of our machines into your production process. Our services include delivery, installation, personnel training, and full technical support. We provide ready-to-use solutions that allow immediate start-up of production, eliminating the need for external providers and saving your time and money. With our turn-key offer, we provide full know-how and support to help your business grow without obstacles.
THE DIFFERENCE IS OUR OUR ASSETS

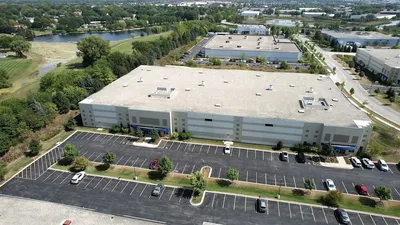

US BRANCH
Our United States facility is equipped with state-of-the-art technology for sheet metalworking and manufacturing. This branch specializes in providing advanced solutions tailored to the needs of the North American market. With an experienced team and a commitment to innovation, we deliver high-quality machines that meet the highest industry standards.

POLISH HEADQUARTERS
Located in Poland, our European branch combines cutting-edge engineering with decades of expertise in the metalworking industry. This facility focuses on serving the European market, offering customized solutions and efficient production processes. We pride ourselves on delivering excellent service and maintaining strong relationships with our customers across Europe.

Why choose our turn-key solutions?
By choosing our turn-key solutions, you can rest assured that your company is in good hands, and the implementation of new technologies is smooth and stress-free.
Save time and money: We eliminate the need for external providers, allowing for immediate production start-up.
Hassle-free implementation: With our complete installation and training, you can be confident that every aspect is under control.

Bending capacity 1600 kN 179.0 Tons
Max working length 122 in
Throat depth 13 in
Maximum ram stroke 7 in
Daylight 18 in
Distance between side frames 102 in
Backgauge retract distance 24 in
Nominal motor power 11.0 kW 15 HP
Length 130 in
Width 65 in
Height 98 in
Weight 21,400 lbs
IPM Inches Per Minute
Control CNC Control OT 41
Features:
CNC Control: Intuitive touch screen, program storage, automatic bending angle calculation.
Automatic Crowning: (On some models) for bending deflection compensation.
Y1/Y2 Control: Independent control for ram cylinders.
Safety: Light curtains, palm buttons.

Otinus BASE: Hydraulic Press Brake 176 t x 122″ OT-41, Model: PBO-3116-OT41
1.1 Automatic crowning (bending deflection compensation)
1.2 Lower die segmented as the upper die + die holder
1.3 AMADA double clamps
1.4 Independent Y1/Y2 control
1.5 Automatic R axis control
1.6 Installation and operational training on the machine on-site — 1 day up to 8 hours
1.7 Independent work on the machine under the supervision of our technician - a possibility of
programming specific parts that are made by the Client - 1 day up to 8 hours
1.8 Telephone consultation with an Otinus specialist — a time-package of 8 hours
1.9 Additional day for training to be used within 12 months of machine install - 1 day up to 8 hours

Otinus CNC controller
The Otinus CNC controller features a convenient and intuitive menu. The software calculates the bending angle automatically and it's large color touch screen is easy to read from any angle.
The controller allows saving up to 2,000 programs, each comprising up to 30 steps.

Terms of cooperation
24 month warranty
The machine is brand new
Warranty and post-warranty servicing provided by the seller
The Client is responsible for the machine during unloading and transporting on-site
