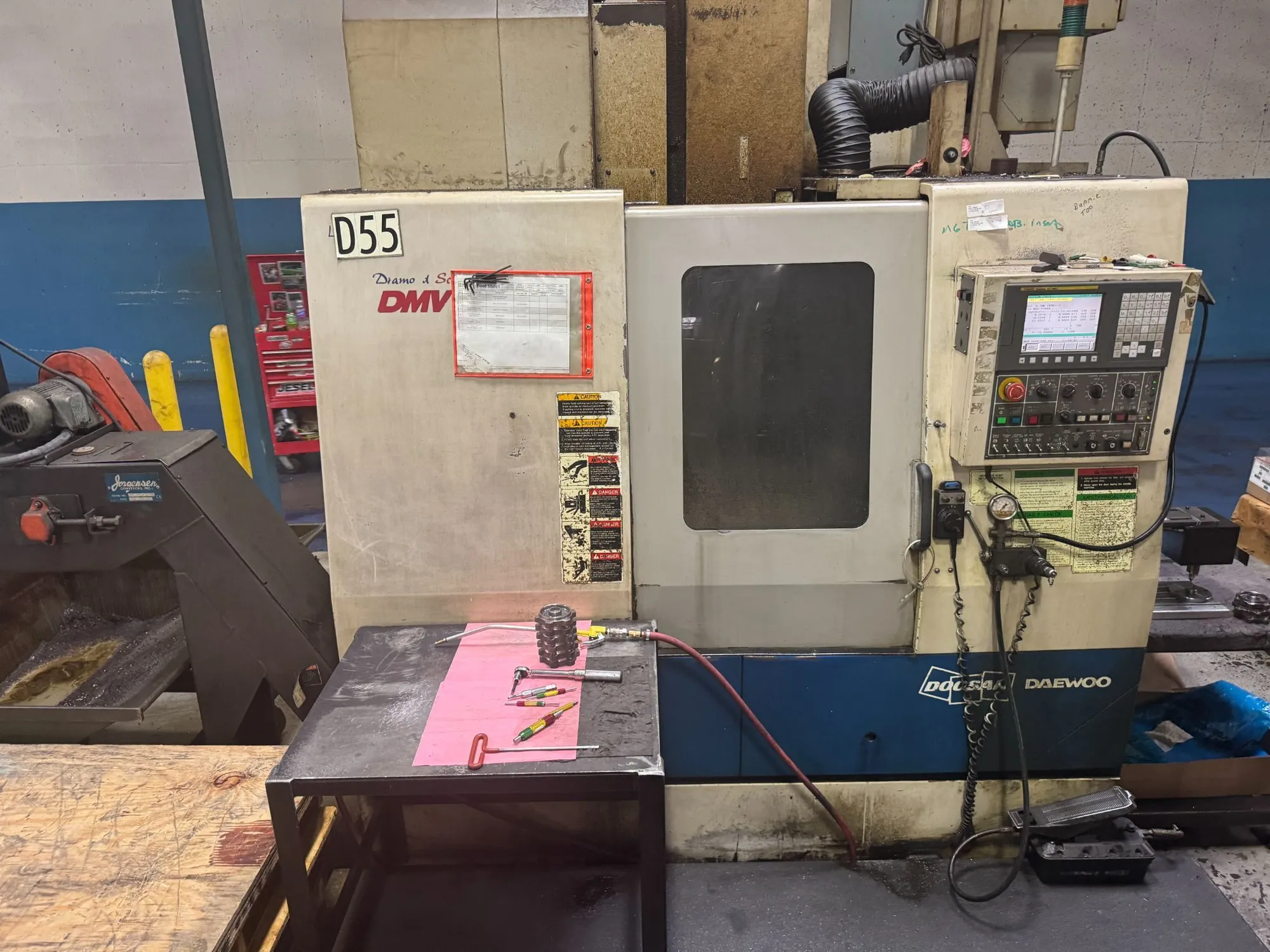

The DOOSAN DMV-3016L is a vertical machining center (VMC) known for its precision, efficiency, and versatility in manufacturing. It's designed for a wide range of machining operations including milling, drilling, and tapping, catering to industries like automotive, aerospace, and electronics. The DMV-3016L features a robust design, advanced technology, and high-speed capabilities, allowing it to handle complex tasks and produce components with accuracy.
| X-Axis | 30" | 762 mm |
| Y-Axis | 16" | 406.4 mm |
| Z-Axis | 20" | 508 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 30 | 30 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 16.9" | 429.26 mm |
| Table-L | 36.2" | 919.48 mm |
| Dimensions | 117" X 95" X 108" | 117" X 95" X 108" |
| Weight | 12,400# | 12,400# |
Specifications:
Table Size: 39.4" x 17.7"
Table Load Capacity: 1,332 Lbs.
X-Axis (Longitudinal Travel): 32"
Y-Axis (Cross Travel): 16"
Z-Axis (Vertical Travel): 20"
Maximum Clearance Tabletop to Spindle Nose: 26"
Minimum Clearance Tabletop to Spindle Nose: 5.9"
Rapid Traverse Rate, All Axes: 1181 IPM
Spindle Horsepower: 20 HP
Maximum Spindle Speeds: 0-12,000 RPM
Spindle Taper: CAT #40
Automatic Tool Changer Capacity (ATC): 24
Electrics: 220/3/60
Approximate Machine Dimensions: 117" x 95" x 108"
Approximate Machine Weight: 12,400#
