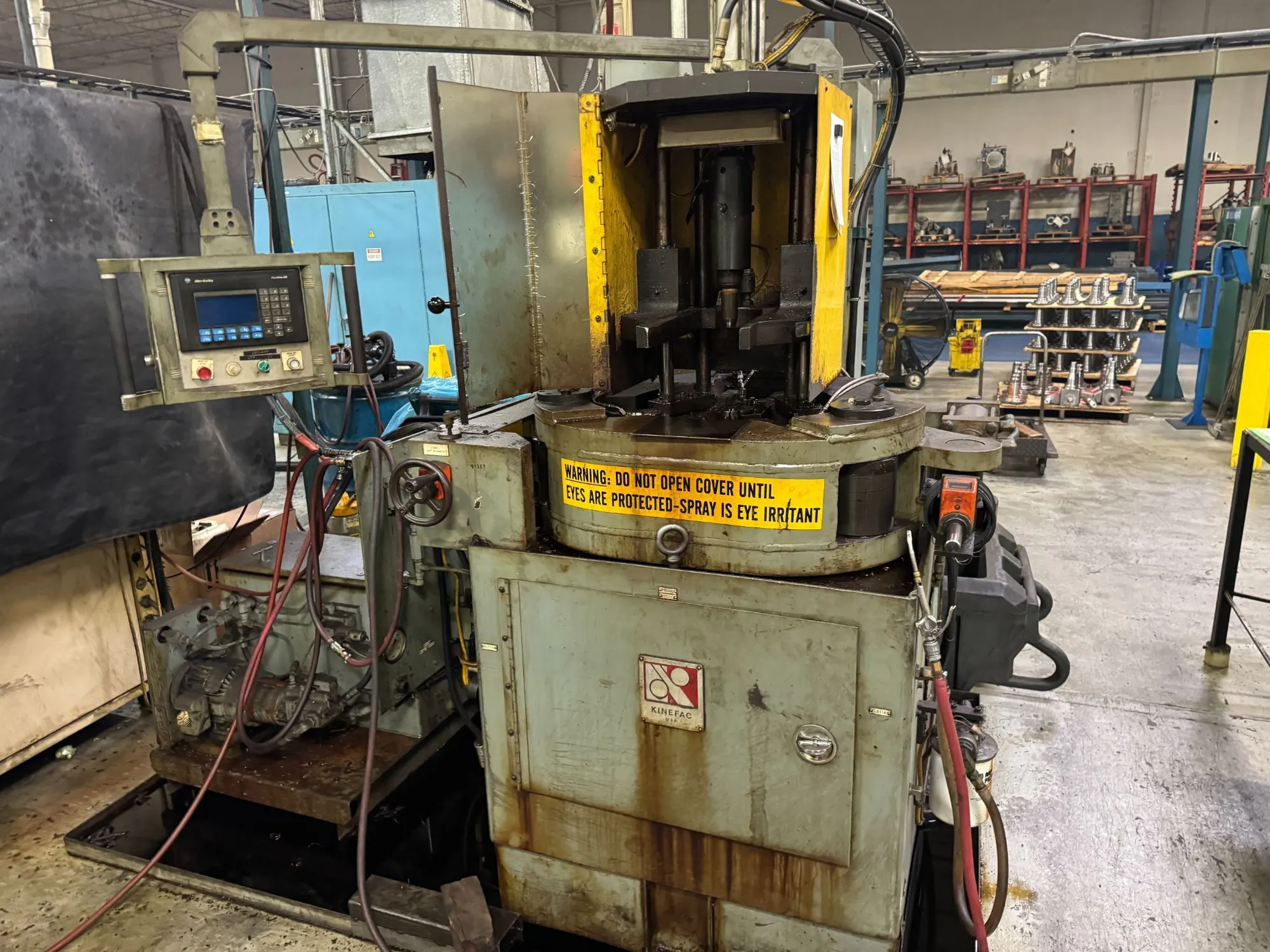

The KINEFAC MV-9 thread roller is a high-performance, three-cylindrical die rolling machine designed for rolling precision threads, splines, and other forms. It excels at processing solid and hollow components, including fasteners, pipe fittings, and drive shafts, offering superior three-die rolling capabilities for solid and hollow components.
| Max Dia. of Workpiece | 63 mm | 2.4803" |
| Max Length of Thread | 85 mm | 3.3465" |
Specifications:
Maximum Radial Die Load: 445 kN
Standard Spindle Diameter: 63.5 mm
Standard Die Gap: 102 mm
Die Diameter Range: 108 - 152 mm
Center Distance Range: 70 - 114 mm
Thrufeed Spindle Skew Range: 5 Degrees
Standard Die Drive: 15 kW
Maximum Rolled OD: 100 mm
