USED 2006 MORI SEIKI NL2500/700
Overview
Description

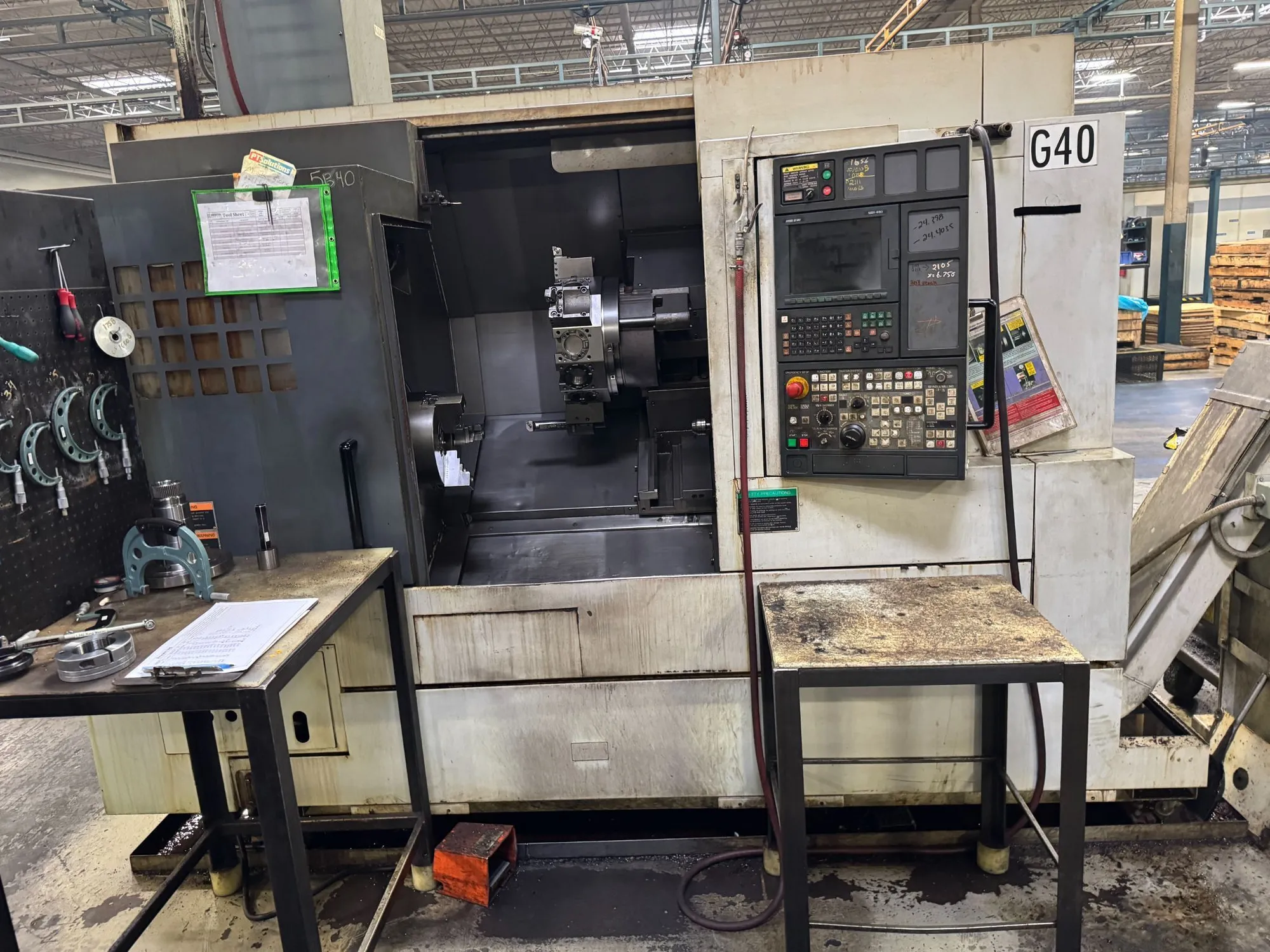

The Mori Seiki NL2500/700 is a high-precision, high-speed CNC turning center capable of machining a wide variety of workpieces. It features a rigid bed, powerful turning capability, and milling functionality with a built-in motor turret (BMT). The machine utilizes the ERGOline X CELOS X control panel, which allows operators to easily machine both simple and complex shapes
Specifications
| Swing | 36.37" | 923.8 mm |
|---|---|---|
| Machining Length | 27.75" | 704.85 mm |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 2.87" | 72.898 mm |
| Power | 26 hp | 19.4 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 14.01" | 355.85 mm |
| Dimensions | 156.7" x 82.9" x 86.6" | 156.7" x 82.9" x 86.6" |
| Weight | 12,786# | 12,786# |
Specifications:
Maximum Turning Diameter: 14.4″
Maximum Turning Length: 27.7″
Maximum Bar Capacity: 3.1″
Swing Over Bed: 23.2″
Distance Between Centers: 31.5″
X Axis Travel: 10.2″
Z Axis Travel: 31.2″
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Z Axis: 1181 IPM
Spindle Nose: A2-8
Spindle Bore: 3.5″
Spindle Speed: 4000 RPM
Spindle Motor: 25 HP
Turret Capacity: 12 Stations
Turret Index Time: 0.5 Second
Tailstock:
Tailstock Body Travel: 28.8″
Tailstock Quill Dia.: 3.34″
Tailstock Quill Stroke: 3.1″
Tailstock Taper: MT-4

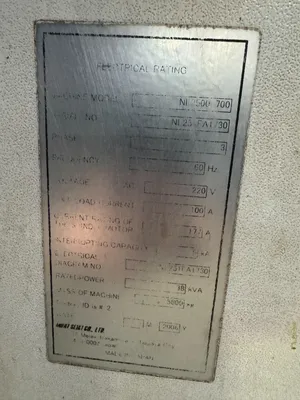

Power Source: AC 220 V, Three Phase, 60 Hz
Power Requirement: 36 kva
Overall Dimensions: 156.7″ x 82.9 ″ x 86.6″ High With Chip Conveyor
Approximate Weight : 12,786 Lbs.
