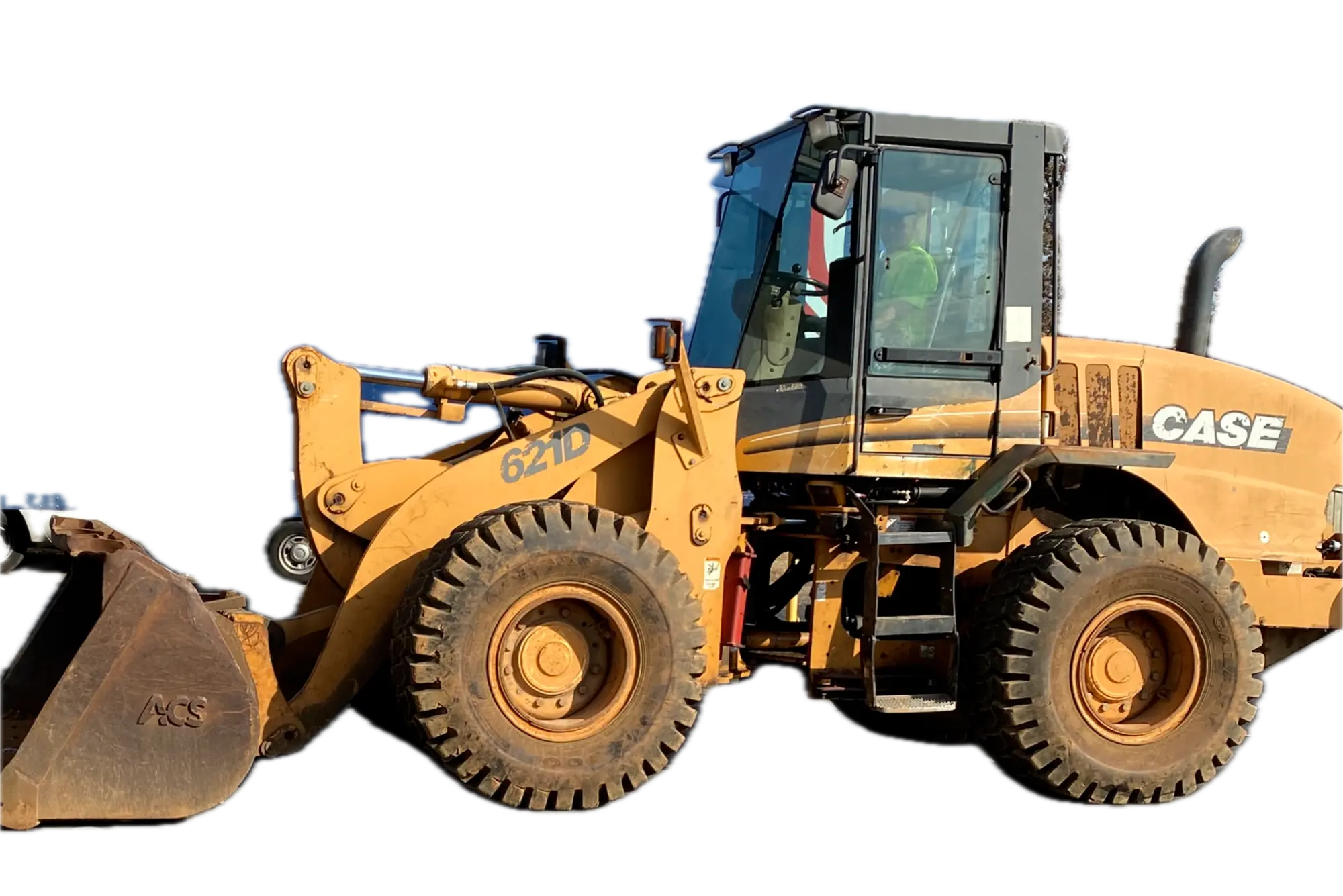

USED CASE 621D

1. Operating Weight: ~ 26,083 lb (~ 11,831 kg)
2. Gross Power: ~ 148 hp (~ 110 kW)
3. Net Power: ~ 136 hp (~ 101 kW)
4. Bucket Capacity (Heaped): ~ 3 yd³ (~ 2.29 m³)
5. Bucket Capacity (Struck): ~ 2.57 yd³ (~ 1.96 m³)
6. Breakout Force: ~ 23,237 lb (~ 10,540 kg)
7. Maximum Lift Height to Hinge Pin: ~ 156.9 in (~ 3,985 mm)
8. Dump Clearance at Max Raise: ~ 9.21 ft (~ 2,806 mm)
9. Wheelbase: ~ 9.52 ft (~ 2,900 mm)
10. Ground Clearance: ~ 1.56 ft (~ 474 mm)
11. Fuel Tank Capacity: ~ 50 gal (~ 189 L)
12. Hydraulic System Fluid Capacity: ~ 30.1 gal (~ 114 L)
13. Transmission Type: 4F / 3R powershift (4 forward, 3 reverse gears)
14. Max Forward Speed: ~ 24 mph (~ 38.7 km/h)
15. Width Over Tires: ~ 7.82 ft (~ 2,382 mm)
