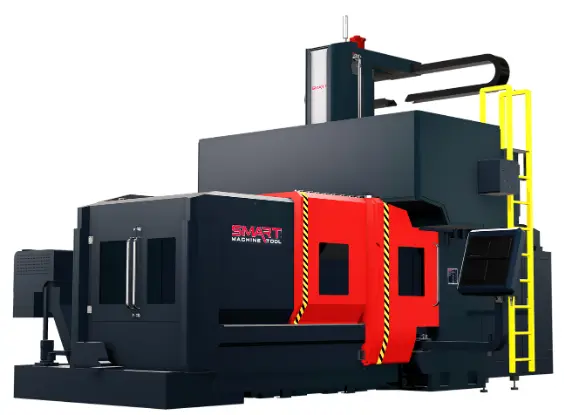

NEW 2026 SMART MACHINE TOOL SW 316
Overview
Description
Come see this in the SMART Showroom! SMART MACHINE TOOL SW 316, a new gantry machining center, features 122.05" X, 63" Y, and 30.71" Z travel. Powered by a 35 HP spindle, it offers a 6,000 RPM speed and 40-tool ATC. Table size is 118.11" x 57.09". Ideal for precision and efficiency.
Specifications
| X | 122.05" | 3,100.1 mm |
|---|---|---|
| Y | 63" | 1,600.2 mm |
| Z | 30.71" | 780.03 mm |
| Power | 35 hp | 26.1 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 40 | 40 |
| Taper | 50 | 50 |
| Table-W | 118.11" | 3,000 mm |
| Table-L | 57.09" | 1,450.1 mm |
| Control | CNC (Fanuc 0i-MF Plus Control) | CNC (Fanuc 0i-MF Plus Control) |
| Dimensions | 370.07” x 192.64” | 370.07” x 192.64” |
| Weight | 49,604lbs | 49,604lbs |
MACHINE SPECIFICATIONS
SW 316
TABLE
Working Surface 118.11” x 57.09”
T slots (Width x No. x Pitch) (in) 0.87” x 0.67” x 7.09”
Max. Table Load (lbs) 17,636.98
AXES MOVEMENT
X-Axis (in) 122.05”
Y-Axis (in) 62.99”
Z-Axis (in) 30.71” (opt. 42.13”)
Distance from Spindle End to Table Surface (in) 8.66”-39.37” (opt. 9.06”-51.18”)
Width between Column 62.99”
FEED
Cutting Feed Rate (in/min) X/Y/Z 275.59”/275.59”/275.59”
Rapid Traverse (in/min) X/Y/Z 472.44”/472.44”/590.55”
SPINDLE
Spindle Nose Taper 50
Spindle Speed (Gear) 6,000 RPM
Spindle Motor: 30 Min Rating 35 HP
AUTOMATIC TOOL CHANGER
Tool Storage Capacity 40
Max. Tool Weight (lbs) 33.07
Max. Tool Size (Diameter x Length) (in) Ø4.92” x 13.78”
Tool Shank CAT 50 (BIG PLUS)
Tool Stud Bolt CAT-50
POWER REQUIREMENTS
Electric Power Consumption 220V 35-55 KVA
Compressed Air 92.45 PSI
FLOOR SPACE
Dimensions (in) 370.07” x 192.64”
Machine Weight (lbs) 49,603.95
STANDARD ACCESSORIES
• Full Splash Guard
• Operation Manual
• Coolant system
• Spindle Air Blast System
• Leveling Bolts and Blocks
• Ethernet Connection Interface
• 3-axis ABS encoder
• Pilot lamp
• Two chip augers
• Work Lamp
• Automatic central Lubrication System
• Heat exchanger for electrical cabinet
• 127 Gallons Coolant Tank with Coolant Pump
QUOTATION
• SW 316 Double Column Machining Center
With Fanuc 0iMF Control_10.4” LCD
BBT #50, Gear Type, 6,000 RPM, 35HP
Spindle oil cooler
40 Tools ATC
Box guide way on 3 axes
CTS 290 psi with water cart
Link type chip conveyor+ bucket
MACHINE OPTIONS
• Z Axis Travel 42”
Direct Drive Spindle 12000RPM_αiIT 22*26KW [34.87HP]
• Manual Angular Head (HF-M90L) 2000RPM
• HF-SU360L Manual universal head 5 degree 2500RPM
• HF-ME35L Manual extension head 350mmL 4000RPM
• Arm seat for head
• Renishaw tools probe RS-27R
• Renishaw workpiece probe RMP-60
