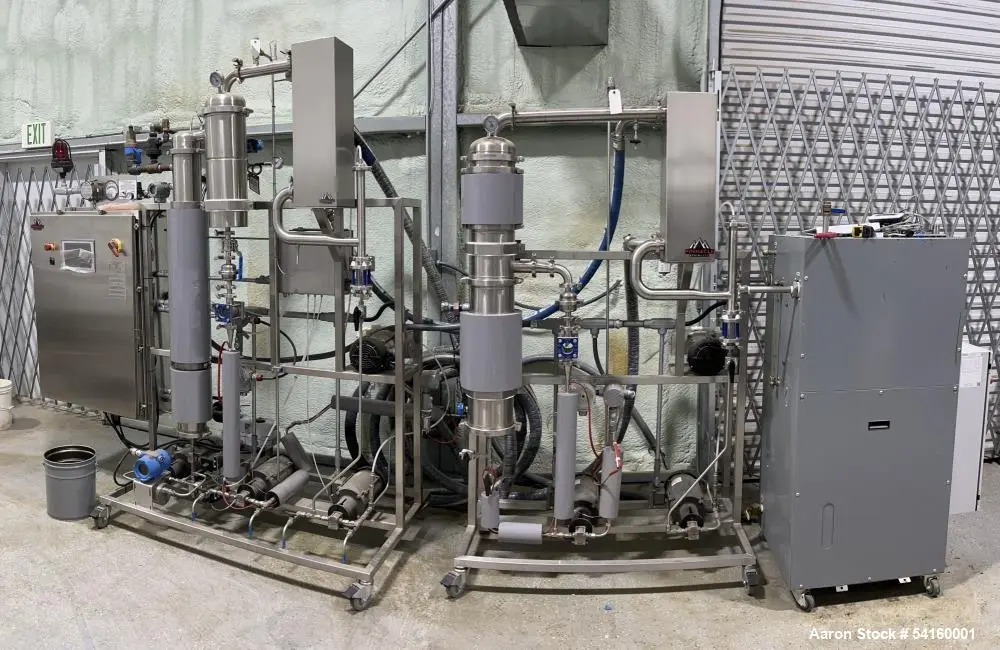

USED PINNACLE STAINLESS SRS-400

Manufacturer Information

Brand: Pinnacle Stainless

Model: SRS Evaporator Skid (C1D2 UL Listed)

Category: Industrial Extraction & Solvent Recovery Equipment

Location of Manufacture: Denver, CO – USA

Fabrication: 100% engineered and fabricated in-house by Pinnacle Stainless

Description
The Pinnacle Stainless Extraction Skid is a closed-loop solvent recovery and extraction system designed for high-efficiency, safe, and sanitary processing. Utilizing rising film evaporation technology, it ensures minimal product degradation while maintaining recovery rates of up to 400 liters per hour.
This system is engineer peer-reviewed, UL hazardous location compliant, and fabricated to food and sanitary standards. It includes C1D2 UL-listed electronics, a touch-screen HMI, and full training and installation support from Pinnacle Stainless.
With its high recovery capacity, safety certifications, and robust engineering, this unit is ideal for alcohol extraction and solvent recovery applications in food, nutraceutical, cannabis, and pharmaceutical industries.
Specifications

System Type: Closed-loop extraction & solvent recovery skid

Recovery Rate: 400 L/hr solvent recovery

Distillate Composition: >99.9% alcohol purity

Feed Composition: 96.5% alcohol, 3.5% oil

Steam Pressure: 12–24 PSI

Steam Generator Requirement: 140 kW (35 kW version also referenced depending on setup)

Chiller Requirement: 100 kW at 40°F (25 kW version also referenced depending on setup)

Cooling Water Temp: 7°C

Technology: Rising film evaporator

Controls: Touchscreen HMI, UL hazardous location controls, C1D2 UL Listed & Approved Electronics

Safety: Closed-loop system, peer-reviewed by third-party engineer

Construction: Built to food & sanitary standards

System Dimensions: 98" x 40" x 95" (alt. version 114.25" x 43.5" x 98.25")

System Weight: ~2400 lbs (with crating)

Applications

Cannabis and hemp extraction (ethanol/alcohol solvent recovery)

Nutraceuticals and herbal extractions

Food and beverage alcohol recovery systems

Essential oil and botanical extraction

Pharmaceutical-grade solvent recovery

Chemical and industrial alcohol recovery

Flavor and fragrance distillation

High-purity ethanol recovery

Solvent recycling and purification

Research and development extraction labs

What Might This Be Used For?
This Pinnacle Stainless extraction skid is a top-tier system for high-capacity solvent recovery in industries where purity, safety, and compliance are critical. Perfect for cannabis processors, nutraceutical companies, distilleries, and industrial labs, it allows for efficient ethanol recovery with minimal product loss and maximum purity.
