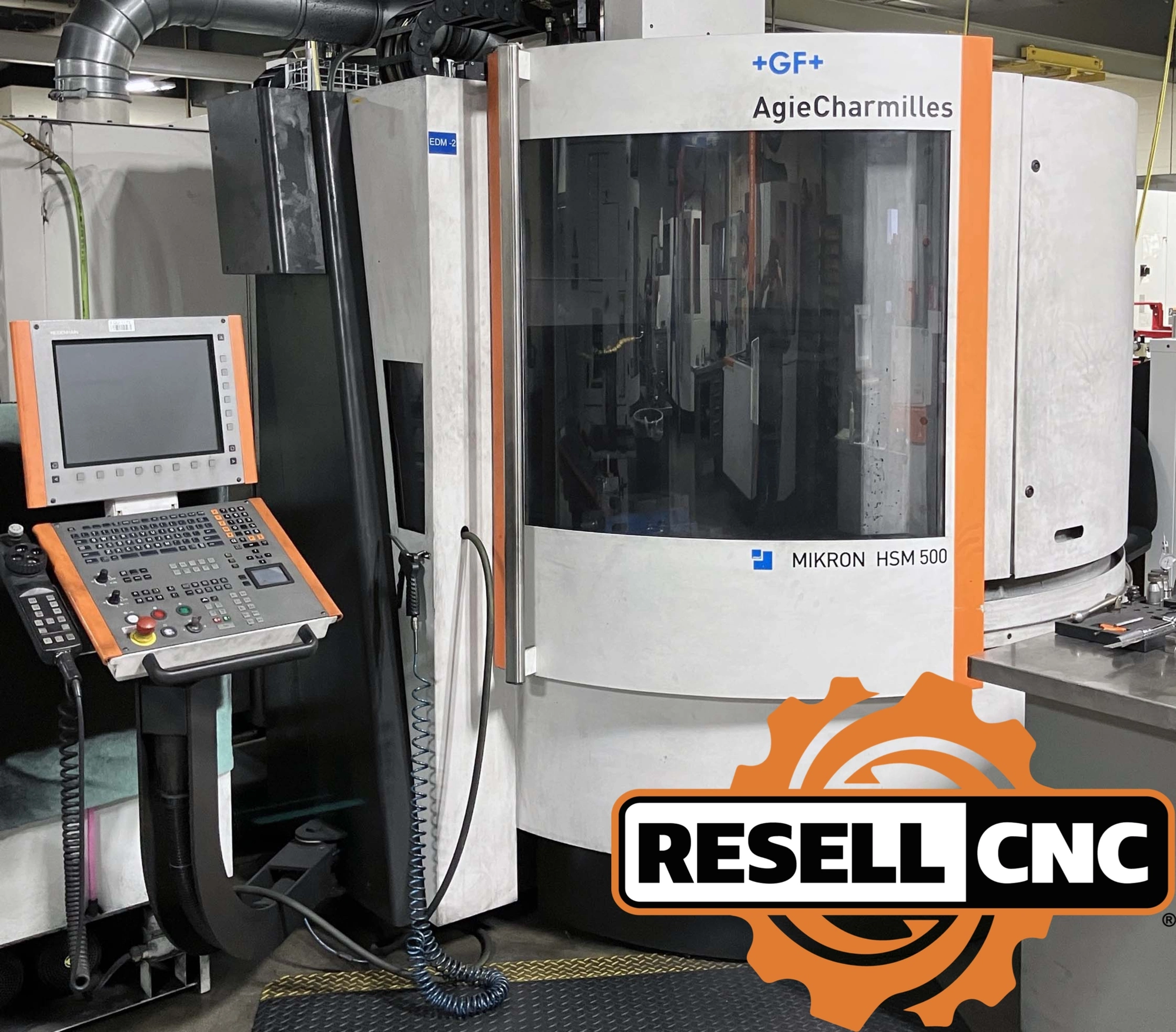

USED 2008 Mikron HSM500

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false

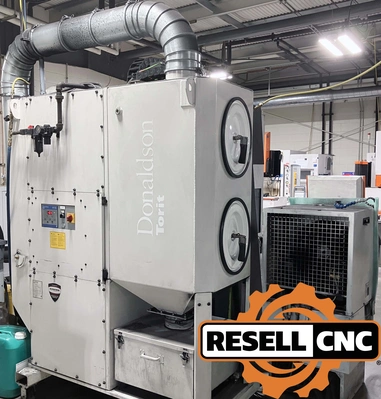

Additional Machine Specs: Donaldson Torit DF02-2 Dust Collection System

Height of table top front floor:
980 mm (38.6")

B Axis: false
C Axis: false

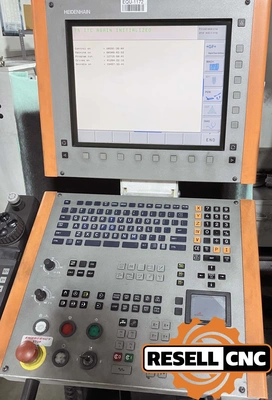

Control Make Model: Heidenhain iTNC 530 CNC Control
Cutting Feed Rate: 787
Electrical: 11 kW
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Machine Options: Mist Collector
Max Table Pallet Load: 441.0
Probe Make Model: Infrared Touch Probe M&H Thermolock
Programmable Tailstock: false
Rapid Traverse: 1575
Rotary Table Trunnion: None
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 15
Spindle Speed: 42000.0
Spindle Taper Other: HSK-E40
Spindle Taper Type: Other
Sub Spindle: false
Tailstock: false
Tool Changer Type: Side Mount
Tool Magazine Capacity: 36.0
Twin Turret: false
Vertical Table Pallet Size: 21.7" x 17.7"
X Travel: 19.7
Y Axis: false
Y Travel: 17.7
Z Travel: 13.8
