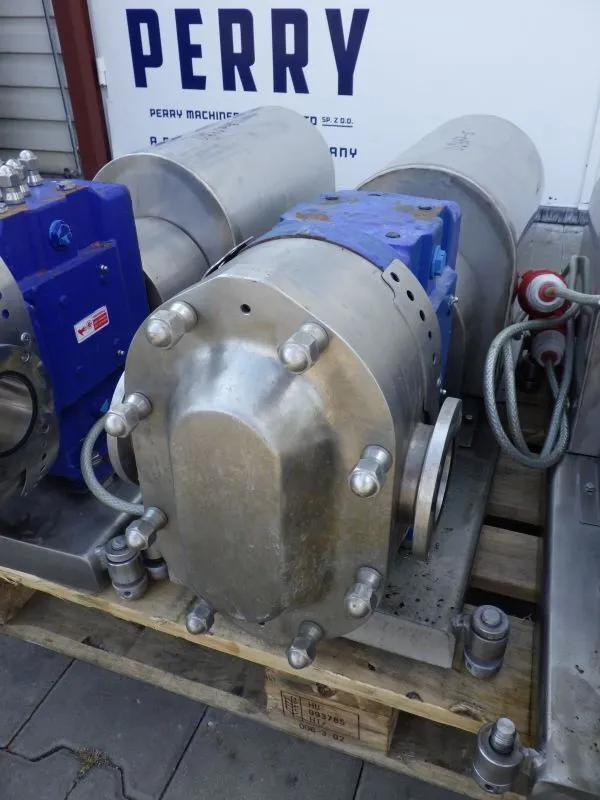

USED 2010 ALFA LAVAL SCPP2/130

Used circumferential piston/lobe pump by Alfa Laval model SCPP2/130. Contact parts designed in stainless steel. Pump has horizontal location of inlet and outlet, each with diameter 76 mm / 3". Pump has output up to 0.946 l per rotation of rotors. Maximal output up to 34 m3/h, at maximal rotation of pistons/lobes up to 600 rpm. Working pressure up to 14 bar, temperature range from -40 up to 150 C. Currently pump is equipped with drive by SEW-Eurodrive, with el motor 1.5 kW, 1461 rpm, 230/400 V, 50 Hz. Working rotation up to 145 rpm. On current drive pump can reach output up to 8,23 m3/h. Pump is mounted on stainless steel plate.
