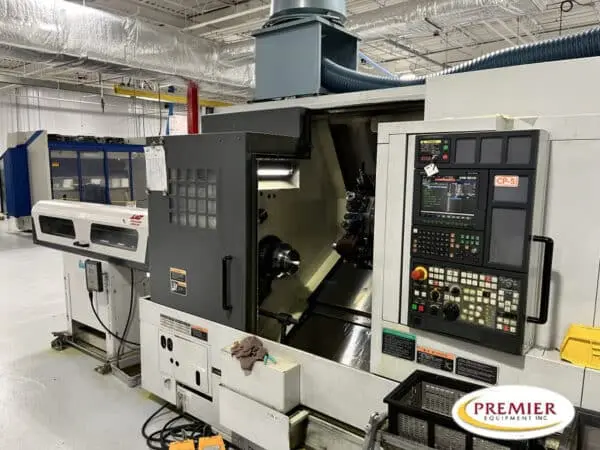

Mori Seiki NL-2500SY/700 – 2009

2009 MORI SEIKI NL2500SY/ 700 Multi-Axis Turning Center

Swing Over Bed: 36.4″

Swing Over Front Cover: 29.7″

Max. Turning Diameter: 14″

Max. Turning Length: 27.7″

Bar Work Capacity: 3.1″

Main Spindle Chuck Size: 10”

Sub Spindle Chuck Size 6”

X Axis Travel: 10.2″

Y Axis Travel: 3.9<+/-2.

Z-Axis Travel: 31.3″

Max. Spindle Speed, Main: 4,000 RPM

Max. Spindle Speed , Sub: 6,000 RPM

Main Spindle Nose: A2-8

Sub Spindle Nose: A2-5

Thru Spindle Hole Dia., Main: 3.6″

Thru Spindle Hole Dial, Sub: 1.7″

Number of Tool Stations: 12

Max. Rotary Tool Speed: 6,000 RPM

Main Spindle Drive Motor: 25/20 HP

Sub Spindle Drive Motor: 15/10 HP

Rotary Tool Drive Motor: 7.5/5 HP

MSX-850 w/ MAPPS Control (Mitsubishi)

Parts Catcher

Main and Sub Spindle Pre Setter

Chip Tray

All Available Tooling and Manuals
