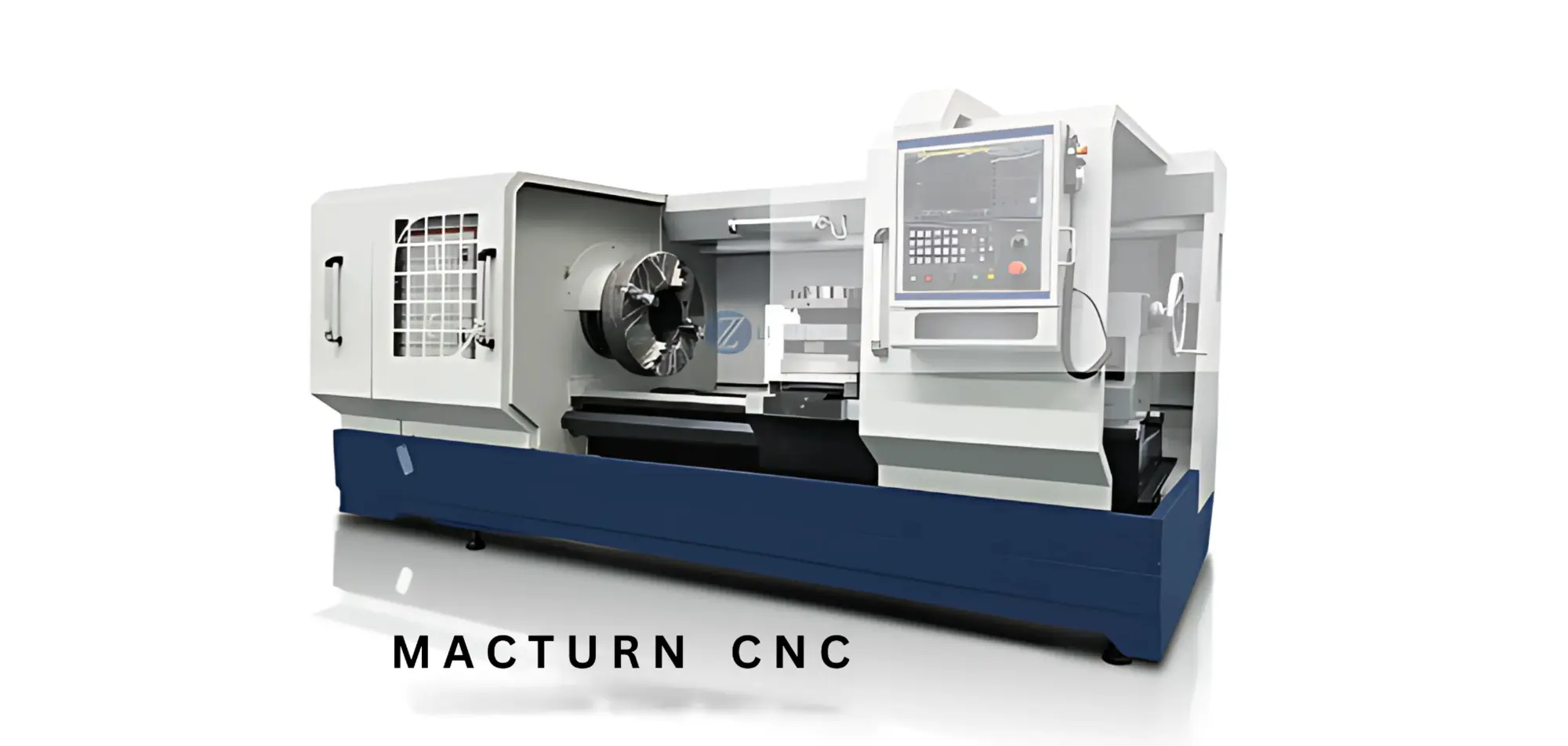

NEW Macturn 10 HS CNC
Overview
Description
Macturn Plus
The Higher version of the 10 Inch HS Macturn with a Fanuc 22kw servo motor and Manual Guide Software.
This machine is fitted with the highly respected Fanuc 0i-TF control.
The MACTURN + CNC machine at an unbeatable price.
Shipped world-wide.
8 station Turret
The Fanuc CNC unit on this machine is suitable for Thread Repair function.
Specifications
| Swing | 800 mm | 31.496" |
|---|---|---|
| Centers | 2,000 mm | 78.74" |
| Spindle Bore | 10" | 254 mm |
| Power | 15 kW | 20.1 hp |
| Control | CNC (Fanuc 0i-TC CNC Control (incl. manual guide i)) | CNC (Fanuc 0i-TC CNC Control (incl. manual guide i)) |
| Dimensions | 5300×1900×1900mm | 5300×1900×1900mm |
| Weight | 6.7 t | 6.7 t |
Max. Swing over bed:800mm
Max. Swing over cross slide:480mm
Max. work piece of length:2000mm
Guideway width:550mm
Spindle bore:255mm 10 inch available with a 300mm 12inch bore
Max. load capacity:3T
Spindle center height:400mm
Threading range:Φ50-250mm
Mode of spindle speed: Two-speed frequency
conversion, infinitely variable speed within the gear
Spindle motor power:15KW
Max. traverse of X/Z:X:420mm/Z:3000mm
X/Z rapid traverse:4000/6000mm/min
Tailstock quill diameter:100mm
Tailstock quill travel:250mm
Tailstock quill taper:MT5
Tool shank size:32*32mm
Overall dimension:5300×1900×1900mm
Machine Weight:6.7T
Equipped With
Front and Rear Chucks
8 Station Turret
Manual Tailstock
