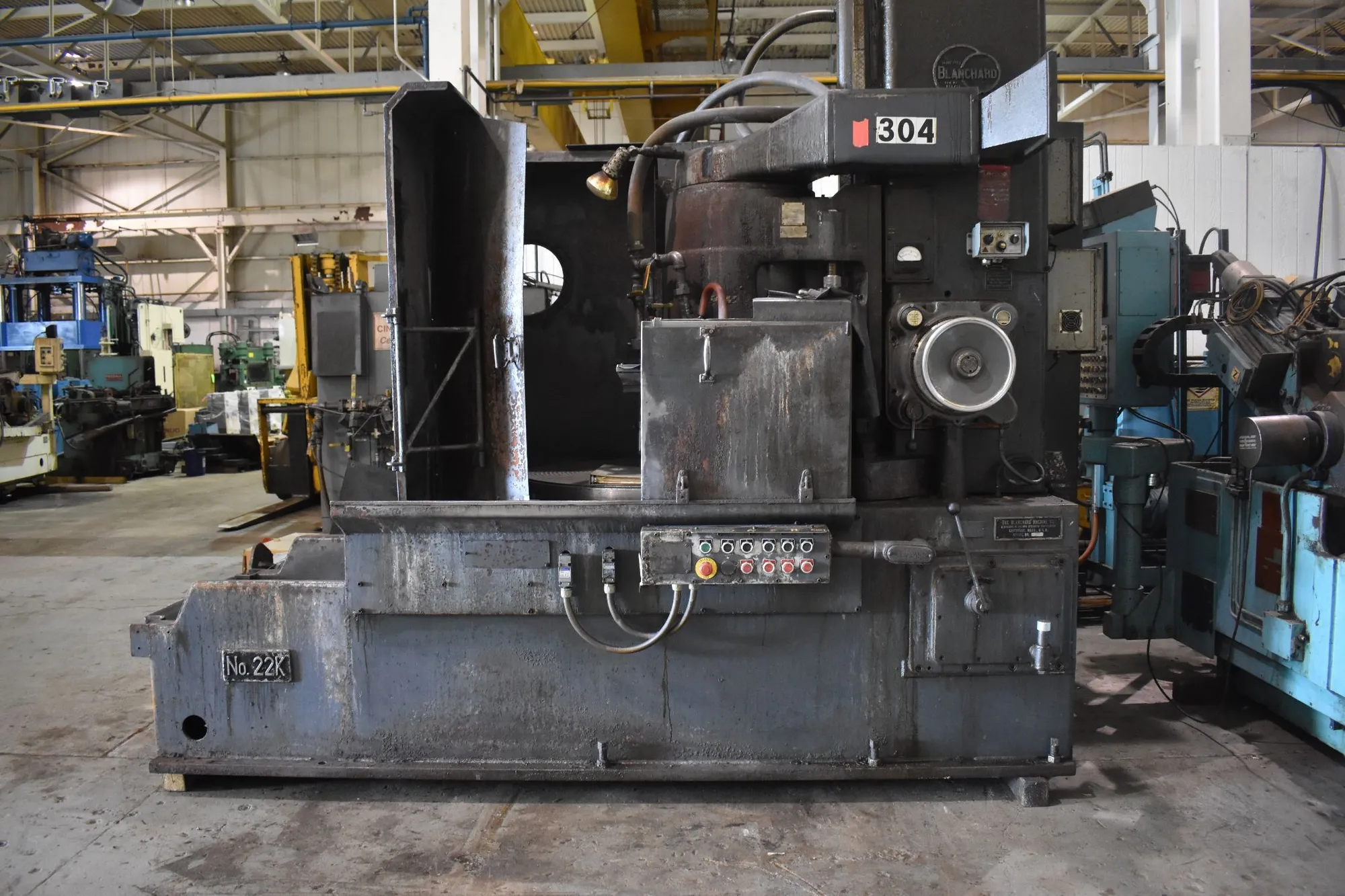

USED 1973 BLANCHARD 22K-42

BLANCHARD 22K-42 rotary surface grinder, 1973 model. Features a 42" chuck size, 22" grinding wheel diameter, and 50 power. Offers 48" swing and 36" under wheel clearance. Ideal for efficient and precise grinding operations.

#22K-42 BLANCHARD EXTENDED VERTICAL
WET BASE ROTARY SURFACE GRINDER

S/N 14030 Year: 1973

STANDARD SPECIFICATIONS

RANGE
48" Swing diameter x 35" high over 42" diameter chuck with new segments.

WORKTABLE
One piece 42" diameter magnetic chuck. 1200 watts, 230 volts (standard), 115 volts (special), D.C. 3,000 pounds maximum load.
Five CD-22L 22" Cortland chuck segments, each 11 1/4" x 2 1/4" x 6" long.

WHEEL
50 H.P. Spindle motor, 720 R.P.M. on 60 cycles, 750 R.P.M., 60 cycles 5,7, 10, 15, 20 and 27 R.P.M. on 50 cycles.

OTHER MOTORS
Chuck rotation – 1200 R.P.M. (60 cycles); table traverse and head raising – 900 R.P.M. (60 cycles).
Wet – 125 gallon tank in base.

FLOOR SPACE AND HEIGHT
11’ 11" X 8’ 4"
Maximum height…………………………………………… 9’ 1"
Minimum height……………………………………………. 8’ 7"

WEIGHT
Domestic shipping weight………………………………….. 19,000 pounds

EQUIPMENT AND FEATURES
42" One piece magnetic chuck 5/8” top plate.
50 H.P. 220/440 volt.
Height wheel to chuck…………………………………….... 36"
Wheel dresser.
Load meter.
Guards.
Wet base.
36” Vertical.
22” Segmented chuck with 5-piece segments.
Wet base W/ pump.

Specifications are deemed accurate, however, subject to verification or prior sale.
