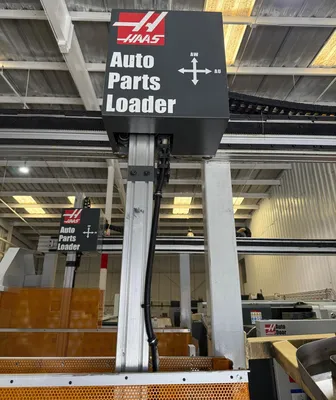

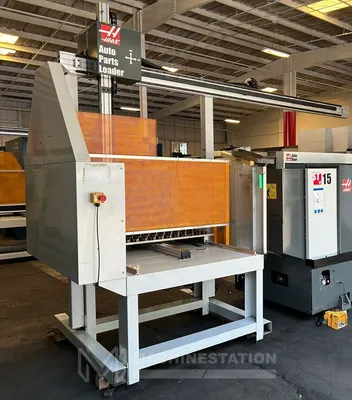

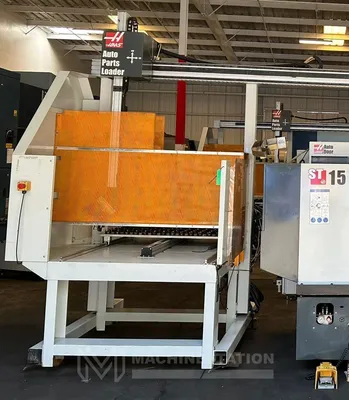

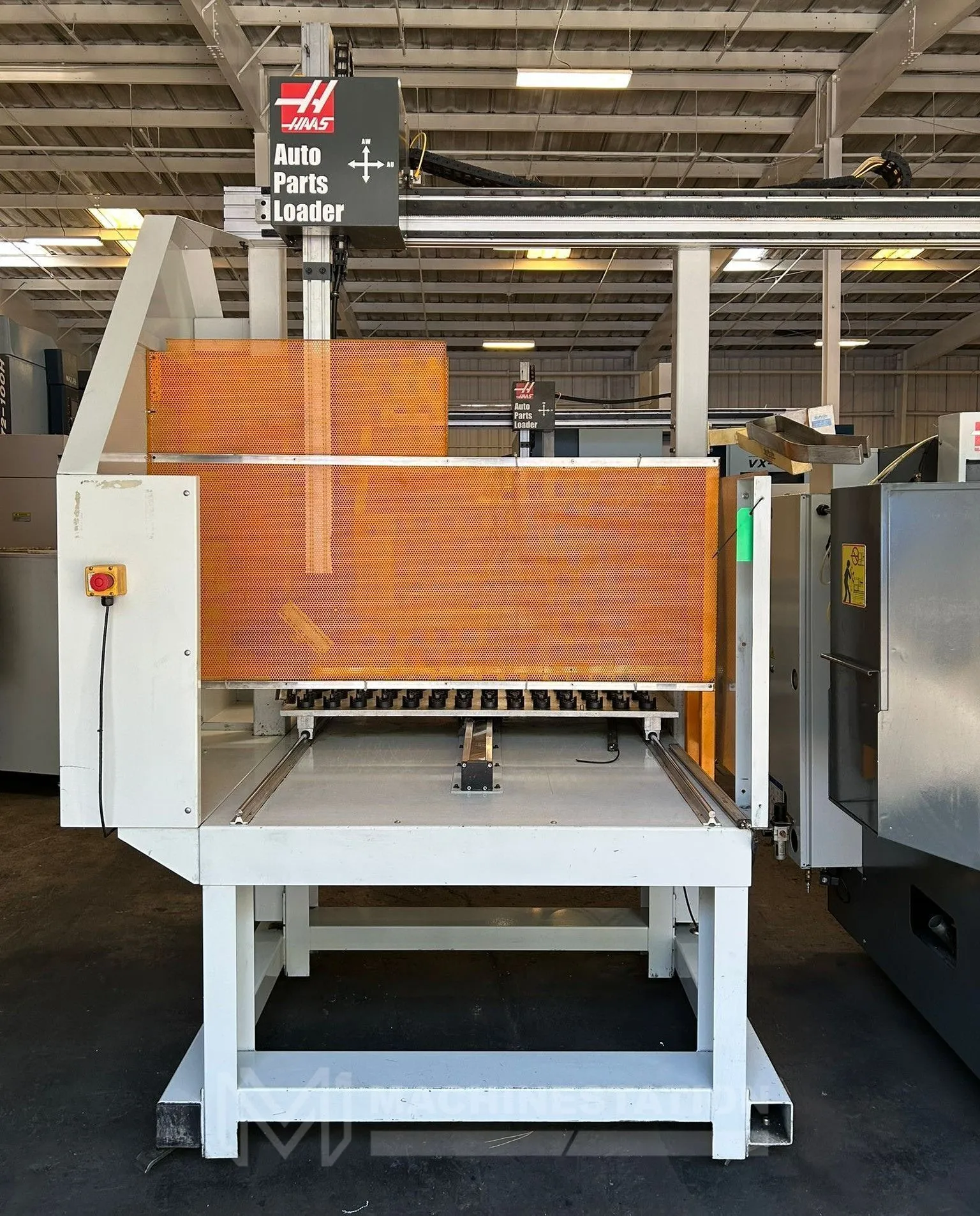

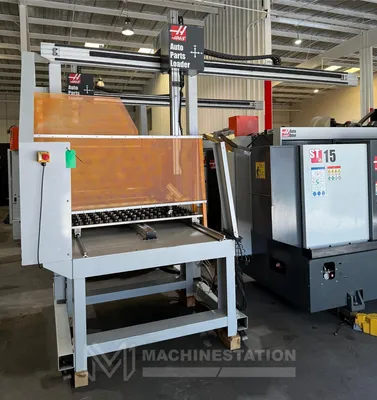

USED 2020 HAAS LATHE AUTOMATIC PARTS LOADER

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Features:
Interfaces Directly with the Haas control
Easy-to-use interface in the Haas control
Accommodates parts up to 5.8″ diameter x 5″ length x 10 lb
Compatible with with Haas ST-10Y, ST-15, ST-15Y, ST-20, ST-20Y, ST-25, ST-25Y, ST-28, and ST-28Y CNC Lathes

Travels:
AU Axis Travel : 111″
AV Axis Travel : 28″
AW Axis Travel : 46″

Feedrates:
Rapid Traverse AU Axis: 1417 IPM
Rapid Traverse AV Axis: 318 IPM
Rapid Traverse AW Axis: 1417 IPM

Part Size:
Max Part Diameter: 5.8″
Max Part Length: 5.0″
Max Part Weight (per gripper): 10 lbs
Gripper Rotation: 90 °

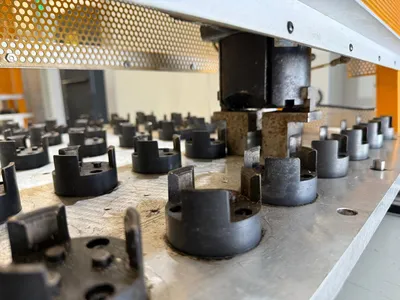

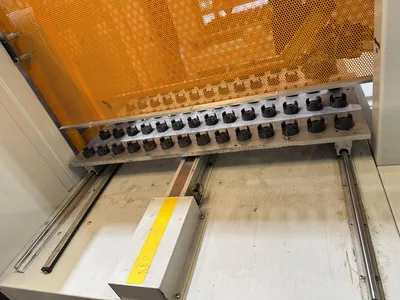

Table:
Table Length: 48″
Table Width: 28″
Table Load Capacity: 1000 lbs

General:
Dimensions: 158″ x 72.” x 124″ High
Machine Weight: 2300 lbs Approx.
