Fully enclosed, stand alone, automated MIG welding cell with fume extraction.
The 7-Axis Blaze Welding cobot features an unlimited library of welding recipes, Zero Programming, drag and drop tablet controller, and complete control and customization of welding parameters, weld recipes, weld types and automation of Miller weld presets.
No programming required!
| # Axis | 7 | 7 |
| Payload | 4 kg | 8.8 lb |
| Horizontal Reach | 61" | 1,549.4 mm |
| Reach | 61" | 61" |
| Repeatability | +/- 0.1mm ~ .004" | +/- 0.1mm ~ .004" |
| Speed | 0-2+ m/s | 0-2+ m/s |
| IP Class | 61 | 61 |
| Joint Ranges | +/- 360 Degrees (all) | +/- 360 Degrees (all) |
| Programming | No Programming Learns by Demonstration | No Programming Learns by Demonstration |
| Safety | ISO 10218-1 Compliant ; Power and force limited | ISO 10218-1 Compliant ; Power and force limited |
| Robot Mounting Flange Diameter | 220 mm: OB7 | 220 mm: OB7 |
| Gripper Mounting Flange: | ISO 9409-1-50-4-M6 | ISO 9409-1-50-4-M6 |
| Working Temperature: | 0-37 Celsius 32-100 Fahrenheit | 0-37 Celsius 32-100 Fahrenheit |
| Power Source | 100 - 240 VAC 50-60hz | 100 - 240 VAC 50-60hz |
| Uninterruptible Power: | 10 minutes (robot stopped) for moving robot to new location | 10 minutes (robot stopped) for moving robot to new location |
| Power Consumption: | OB7: 90-650 W OB7-Max: 90-1000W dependent on speed and payload | OB7: 90-650 W OB7-Max: 90-1000W dependent on speed and payload |
| Linear Speed: | 2m/s max (Dependent on position) | 2m/s max (Dependent on position) |
| Table Height | 36 | 36 |
| Work Surface | 41.75"x 48" | 41.75"x 48" |
| Welder | Miller Auto Deltaweld 350 | Miller Auto Deltaweld 350 |
| Dimensions | 97" x 75" x 86" | 97" x 75" x 86" |

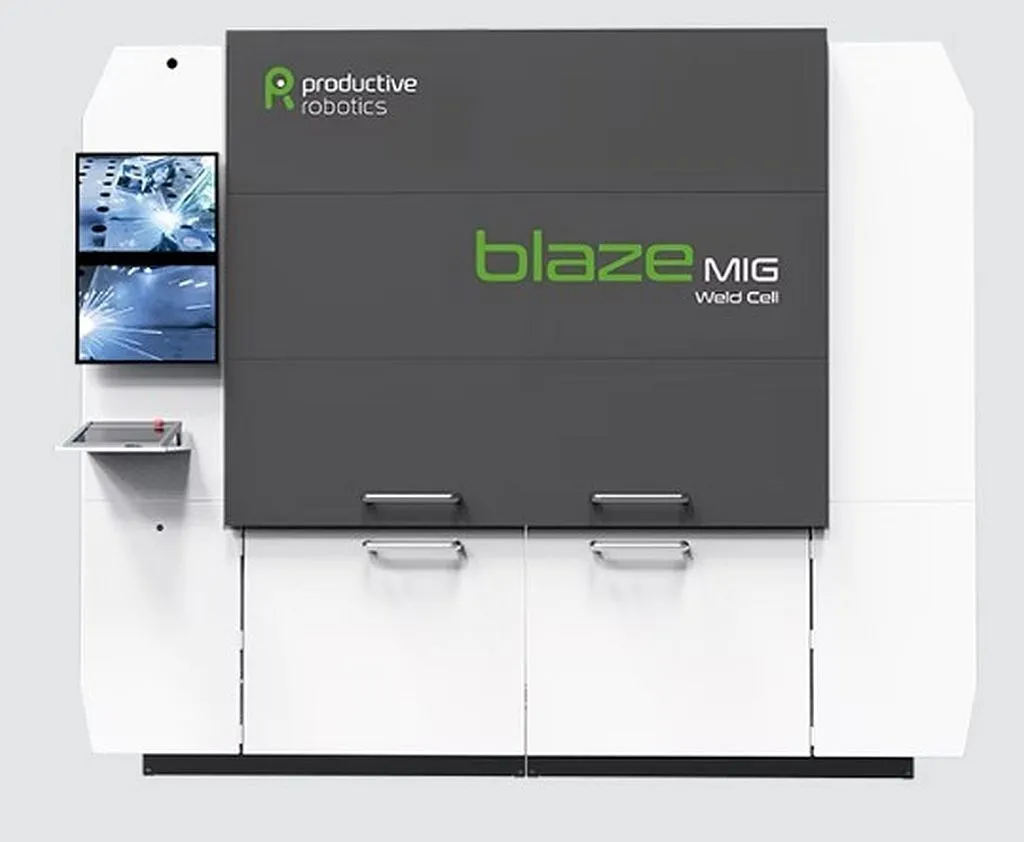

Blaze MIG Welding Cell w/ Miller Auto Deltaweld 350
Includes:
• Blaze Robot
• Miller Auto Deltaweld 350 / 500
• Miller Cobot Kit
• Miller Wire Feeder
• Miller Startup Kit
• Enclosed Welding Cell
• Blaze Welding Software
• 4' x 8' Siegmund Table with High Intensity LED Lighting
• Fume Extraction
• Sealed control computer
• Live Video Monitoring
• No Programming Teach Tablet
Dimensions
Overall:
• 2464 mm x 1905 mm x 2185 mm
• (97”w x 75”d x 86”h)
• Table Height: 914 mm (36”)
• Work Surface: 1060 mm x 1,244 mm (41.75” x 48”)
Wire Drive
• Wire Feed Delivery Length: 10 ft. (3 m) Optional: 15 ft. (5 m)
• LightWELD Interface: Low Voltage enable signal cable
• Wire Feed Speed Range: 0.5 - 230 ipm (1 - 600 cm/min)
• Compatible Wire Diameters: 0.030” – 0.063” (0.8 mm - 1.6 mm)
• Wire Reel Capacity: Up to 30 lbs. (12” diameter)
• Compatible Wire Materials:
• Steel, Stainless Steel, Aluminum, Copper, Nickel
• Power Requirements: 115 - 230V 50/60 Hz
Auto-DeltaWeld™ 350 and 500
Advanced MIG processes:
• Accu-Pulse® pulsed MIG (GMAW-P)
• Versa-Pulse™
• RMD®
• MIG (GMAW)
• High-deposition MIG (GMAW)
• Flux-cored (FCAW)
• Metal-Cored (GMAW-C)
General
Warranty: 3 years on Blaze Laser Cell, Blaze Cobot and Miller® Welders
