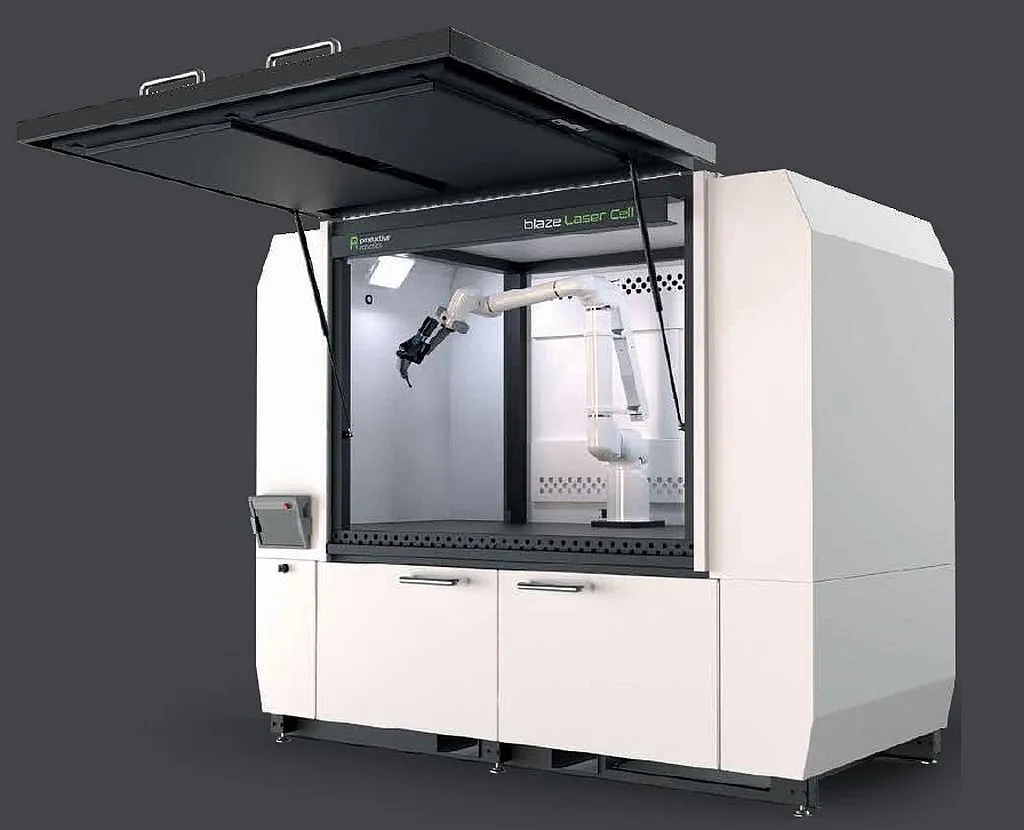

Introducing the New 2025 Blaze Laser Cell OPTX 1K from PRODUCTIVE ROBOTICS! Featuring a 7-axis collaborative Blaze Laser robot, it offers a 61" reach, and no programming requirement. Complete welding cell with advanced safety and monitoring features.
| # Axis | 7 | 7 |
| Horizontal Reach | 61" | 1,549.4 mm |
| Reach | 61" | 61" |
| Repeatability | +/- 0.1mm ~ .004" | +/- 0.1mm ~ .004" |
| Speed | 0-2+ m/s | 0-2+ m/s |
| IP Class | 61 | 61 |
| Joint Ranges | +/- 360 Degrees (all) | +/- 360 Degrees (all) |
| Programming | No Programming Learns by Demonstration | No Programming Learns by Demonstration |
| Safety | ISO 10218-1 Compliant ; Power and force limited | ISO 10218-1 Compliant ; Power and force limited |
| Robot Mounting Flange Diameter | 220 mm: OB7 | 220 mm: OB7 |
| Gripper Mounting Flange: | ISO 9409-1-50-4-M6 | ISO 9409-1-50-4-M6 |
| Working Temperature: | 0-37 Celsius 32-100 Fahrenheit | 0-37 Celsius 32-100 Fahrenheit |
| Power Source | 100 - 240 VAC 50-60hz | 100 - 240 VAC 50-60hz |
| Uninterruptible Power: | 10 minutes (robot stopped) for moving robot to new location | 10 minutes (robot stopped) for moving robot to new location |
| Power Consumption: | OB7: 90-650 W OB7-Max: 90-1000W dependent on speed and payload | OB7: 90-650 W OB7-Max: 90-1000W dependent on speed and payload |
| Linear Speed: | 2m/s max (Dependent on position) | 2m/s max (Dependent on position) |
| Table Height | 36 | 36 |
| Dimensions | 97" x 75" x 86" | 97" x 75" x 86" |
Blaze Laser Welding Cell OPTX 1K
Includes:
• Blaze Robot
• Miller OptX 1k Laser
• Miller Cobot Kit
• Miller Wire Feeder
• Miller Startup Kit
• Enclosed Welding Cell
• Blaze Welding Software
• 4' x 8' Siegmund Table with High Intensity LED Lighting
• Fume Extraction
• Live Video Monitoring
• No Programming Teach Tablet
Dimensions Overall:
• 2464 mm x 1905 mm x 2185 mm
• (97”w x 75”d x 86”h)
• Table Height: 914 mm (36”)
• Work Surface: 1060 mm x 1,244 mm (41.75” x 48”)
Wire Drive
• Wire Feed Delivery Length: 10 ft. (3 m) Optional: 15 ft. (5 m)
• LightWELD Interface: Low Voltage enable signal cable
• Wire Feed Speed Range: 0.5 - 230 ipm (1 - 600 cm/min)
• Compatible Wire Diameters: 0.030” – 0.063” (0.8 mm - 1.6 mm)
• Wire Reel Capacity: Up to 30 lbs. (12” diameter)
• Compatible Wire Materials:
• Steel, Stainless Steel, Aluminum, Copper, Nickel
• Power Requirements: 115 - 230V 50/60 Hz
LightWeld® Welder
• Welding Only: LightWELD 1500
• Welding & Cleaning: LightWELD 1500 XC
• Laser Power Output: Up to 2 kW
• Input Power: 200-240VAC, 3PH, 50/60 Hz, 24 Amps
• Presets: Up to 100
• Process Gas: Argon/Nitrogen
• Working Pressure: 15-30 psi (1-2 Bar)
• Cooling: Air-Cooled (No External Chiller Required
General
Warranty: 3 years on Blaze Laser Cell, Blaze Cobot and Miller® Welders
Lighting: High intensity LED
Fume Extraction
Single-Side, Single Pass Material Weld Capability:
Stainless Steel, mild steel, galvanized steel,
aluminum up to 4 mm
