Introducing the 2025 Productive Robotics Blaze MIG Mobile Package Cobot, a new 7-axis collaborative robot. With zero programming needed, it uses intuitive demonstration learning, making it easy to integrate into your welding setup. Made in the USA.
This Robot can be easily moved between workstations and includes Blaze robot, sealed electronics, rolling stand, No programming teach tablet and can include Miller 350 welder upon request.
| # Axis | 7 | 7 |
| Horizontal Reach | 61" | 1,549.4 mm |
| Reach | 61" | 61" |
| Repeatability | +/- 0.1mm ~ .004" | +/- 0.1mm ~ .004" |
| Speed | 0-2+ m/s | 0-2+ m/s |
| IP Class | 61 | 61 |
| Joint Ranges | +/- 360 Degrees (all) | +/- 360 Degrees (all) |
| Programming | No Programming Learns by Demonstration | No Programming Learns by Demonstration |
| Safety | ISO 10218-1 Compliant ; Power and force limited | ISO 10218-1 Compliant ; Power and force limited |
| Robot Mounting Flange Diameter | 220 mm: OB7 | 220 mm: OB7 |
| Gripper Mounting Flange: | ISO 9409-1-50-4-M6 | ISO 9409-1-50-4-M6 |
| Working Temperature: | 0-37 Celsius 32-100 Fahrenheit | 0-37 Celsius 32-100 Fahrenheit |
| Power Source | 100 - 240 VAC 50-60hz | 100 - 240 VAC 50-60hz |
| Uninterruptible Power: | 10 minutes (robot stopped) for moving robot to new location | 10 minutes (robot stopped) for moving robot to new location |
| Power Consumption: | OB7: 90-650 W OB7-Max: 90-1000W dependent on speed and payload | OB7: 90-650 W OB7-Max: 90-1000W dependent on speed and payload |
| Linear Speed: | 2m/s max (Dependent on position) | 2m/s max (Dependent on position) |

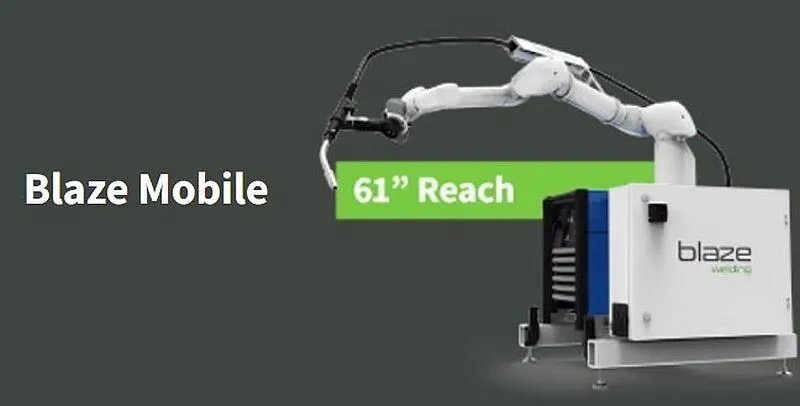

Blaze MIG Mobile Package
Zero programming welding cobot. Works with your current welder and table.
Designed and built in the USA with direct factory support
7-axis positioning allows more welds without refixturing
• Teach a job faster than welding once by hand
• Software: Drag and drop, unlimited weld capability
• Reach: 61" or 85" including torch
• Compatible with Miller, Lincoln, and most others.
Includes:
• 1 Blaze Robot
• 1 Rolling Stand
• 1 Sealed Electronics
• 1 Miller 350 Welder (Upon request)
