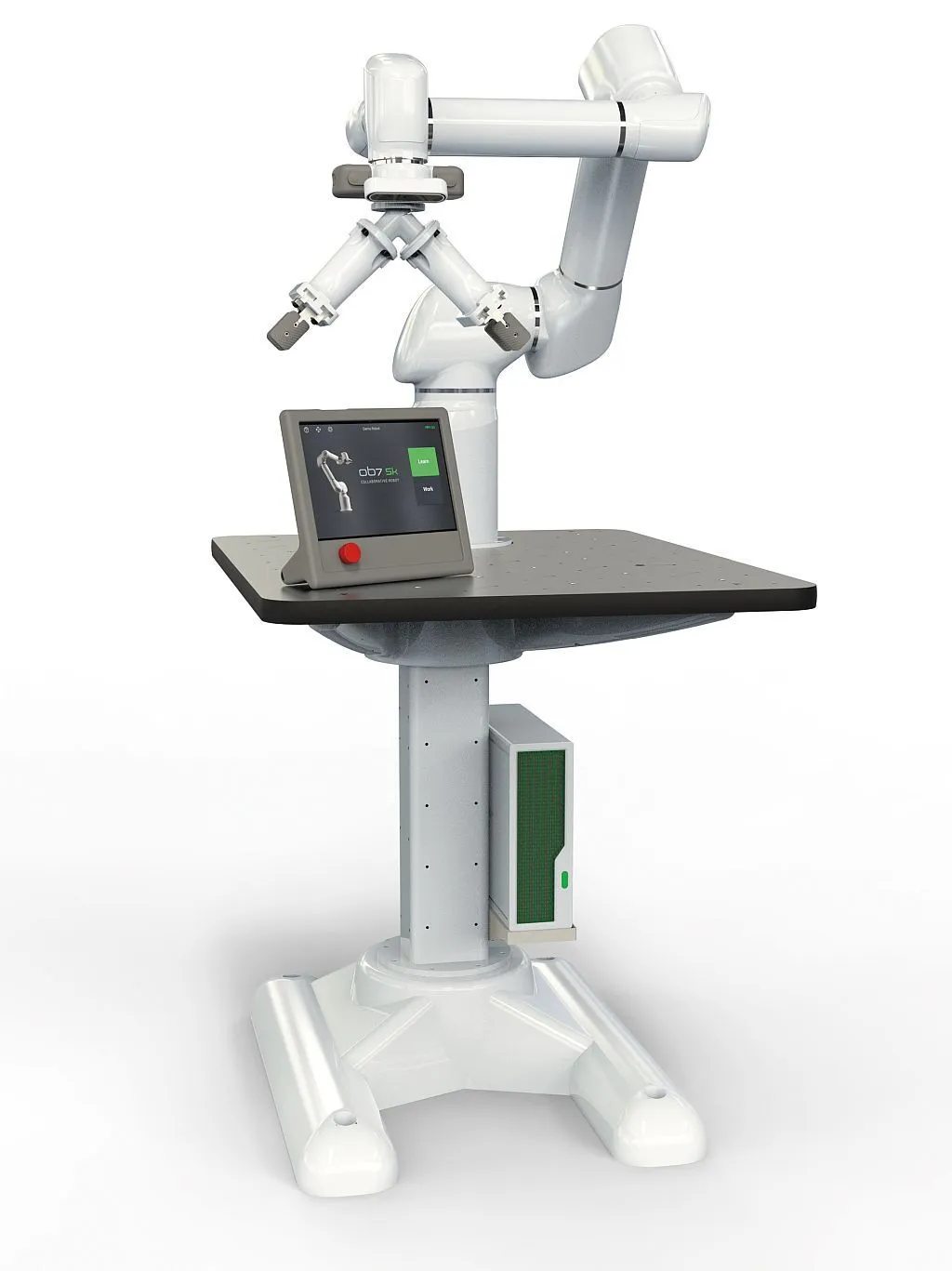

Discover the future of automation with the all-new 2025 OB7 Collaborative Robot CNC Lathe Tending Package by PRODUCTIVE ROBOTICS. Ideal for enhancing productivity, this state-of-the-art robot is ready to transform your workspace. Secure the latest model today.
| # Axis | 7 | 7 |
| Payload | 5 kg | 11 lb |
| Horizontal Reach | 1 m | 39.37" |
| Reach | 1m | 1m |
| Repeatability | +/- 0.1mm ~ .004" | +/- 0.1mm ~ .004" |
| Speed | 0-2+ m/s | 0-2+ m/s |
| IP Class | 61 | 61 |
| Joint Ranges | +/- 360 Degrees (all) | +/- 360 Degrees (all) |
| Programming | No Programming Learns by Demonstration | No Programming Learns by Demonstration |
| Safety | ISO 10218-1 Compliant ; Power and force limited | ISO 10218-1 Compliant ; Power and force limited |
| Robot Mounting Flange Diameter | 220 mm: OB7 | 220 mm: OB7 |
| Gripper Mounting Flange: | ISO 9409-1-50-4-M6 | ISO 9409-1-50-4-M6 |
| Working Temperature: | 0-37 Celsius 32-100 Fahrenheit | 0-37 Celsius 32-100 Fahrenheit |
| Power Source | 100 - 240 VAC 50-60hz | 100 - 240 VAC 50-60hz |
| Uninterruptible Power: | 10 minutes (robot stopped) for moving robot to new location | 10 minutes (robot stopped) for moving robot to new location |
| Power Consumption: | OB7: 90-650 W OB7-Max: 90-1000W dependent on speed and payload | OB7: 90-650 W OB7-Max: 90-1000W dependent on speed and payload |
| Linear Speed: | 2m/s max (Dependent on position) | 2m/s max (Dependent on position) |
| Mount | Yes | Yes |
Lathe package includes:
CNC PACKAGES........................... FULL LATHE PACKAGE
Robot.................................. OB7, Stretch, Max 8, or Max 12
ACC:RS-1............................... Stand
ACC:AT1................................ Table
ACC:PG2................................ Gripper (x2)
ACC:DUAL GRIPPER ADAPTER............... OB7 Dual Gripper adapter
ACC:I/O2............................... I/O version 2
SPR:CBL-504............................ M12 5Pin A-Code male cable 5 Meter
SPR:CBL-507............................ M12 5pin A-Code male Y-Splitter (x2)
ACC:AIR BLOW-OFF KIT................... Air Blow-Off Kit
ACC:REMOTE RELAY SINGLE................ Remote interface relay (x3)
ACC:PNEU-1............................. Pneumatic controller (x2)
ACC:AIR HOSE........................... 1/4” air hose / 25 ft
TOTAL.................................. OB7, Stretch Package: $39,900
TOTAL.................................. MAX Robot Package: $49,900
COMMON LATHE PACKAGE OPTIONS AND ACCESSORIES
ACC:AIR BLOW-OFF KIT Air Blow-Off Kit
SPR:CBL-503............................ M12 5Pin A-Code male cable 3 Meter
SPR:CBL-504............................ M12 5Pin A-Code male cable 5 Meter
SPR:CBL-505............................ M12 5Pin A-Code Extension cable 5 Meter
SPR:CBL-506............................ M12 5Pin A-Code Female with pigtails - 1 meter
SPR:CBL-507............................ M12 5pin A-Code male Y-Splitter
SPR:CBL-801............................ Handle I/O Accessory Cable
Control Computer:
Specifications
IP Rating: IP30
Communications Hardware: Ethernet 100MB
Protocols: Ethernet IP, TCP/IP, Modbus
Power: 100-240 VAC 50-60 HZ
Zero programming tablet:
Using visual ‘tiles’ and a drag & drop interface, control tablet is incredibly intuitive to use.
Specifications
IP Rating: IP41
Connection: USB
Dimensions: 10” x 5” x 1.5”
Cable: 5 meters (16 ft)
USA direct factory support
Fast online support by our welding and robotics experts at our US factory.
