Discover the future of automation with the all-new 2025 OB7 Collaborative Robot CNC Tending Package by PRODUCTIVE ROBOTICS. Ideal for enhancing productivity, this state-of-the-art robot is ready to transform your workspace. Secure the latest model today.
| # Axis | 7 | 7 |
| Payload | 4 kg | 8.8 lb |
| Horizontal Reach | 1.2 m | 49.213" |
| Reach | 1.25m | 1.25m |
| Repeatability | +/- 0.1mm ~ .004" | +/- 0.1mm ~ .004" |
| Speed | 0-2+ m/s | 0-2+ m/s |
| IP Class | 61 | 61 |
| Joint Ranges | +/- 360 Degrees (all) | +/- 360 Degrees (all) |
| Programming | No Programming Learns by Demonstration | No Programming Learns by Demonstration |
| Safety | ISO 10218-1 Compliant ; Power and force limited | ISO 10218-1 Compliant ; Power and force limited |
| Robot Mounting Flange Diameter | 220 mm: OB7 | 220 mm: OB7 |
| Gripper Mounting Flange: | ISO 9409-1-50-4-M6 | ISO 9409-1-50-4-M6 |
| Working Temperature: | 0-37 Celsius 32-100 Fahrenheit | 0-37 Celsius 32-100 Fahrenheit |
| Power Source | 100 - 240 VAC 50-60hz | 100 - 240 VAC 50-60hz |
| Uninterruptible Power: | 10 minutes (robot stopped) for moving robot to new location | 10 minutes (robot stopped) for moving robot to new location |
| Power Consumption: | OB7: 90-650 W OB7-Max: 90-1000W dependent on speed and payload | OB7: 90-650 W OB7-Max: 90-1000W dependent on speed and payload |
| Linear Speed: | 2m/s max (Dependent on position) | 2m/s max (Dependent on position) |
| Weight | 58 lbs. | 58 lbs. |

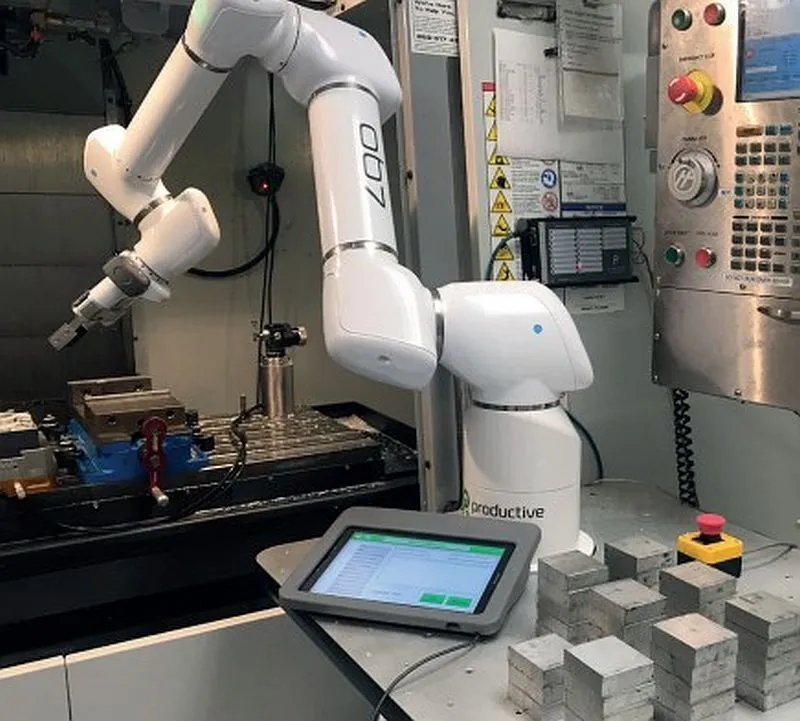

OB7 Collaborative Robot - CNC Tending Package
The original zero programming, teach-by-touch collaborative robot and the simplest to use—by far.
Designed and built in the USA with direct factory support
• # of Axis:.................... 7
• Payload:..................... 8.8 lb
• Horizontal Reach:...... 1.25m
• Reach:........................ 1.25m
• Repeatability:.............. +/- 0.1mm ~ .004"
• Speed:......................... 0-2+ m/s
• IP Class 61
• Joint Ranges:............. +/- 360 Degrees (all)
• Programming:............ No Programming Learns by Demonstration
• Safety:........................ ISO 10218-1 Compliant
• Robot Mounting Flange Diameter: 220 mm: OB7
Zero programming tablet:
• Using visual ‘tiles’ and a drag & drop interface, control tablet is incredibly intuitive to use.
• Specifications
• IP Rating: IP41
• Connection: USB
• Dimensions: 253 mm x 125 mm x 37 mm (10” x 5” x 1.5”)
• Cable: 5 meters (16 ft)
USA direct factory support
Fast online support by our welding and robotics experts at our US factory. We speak your language.
