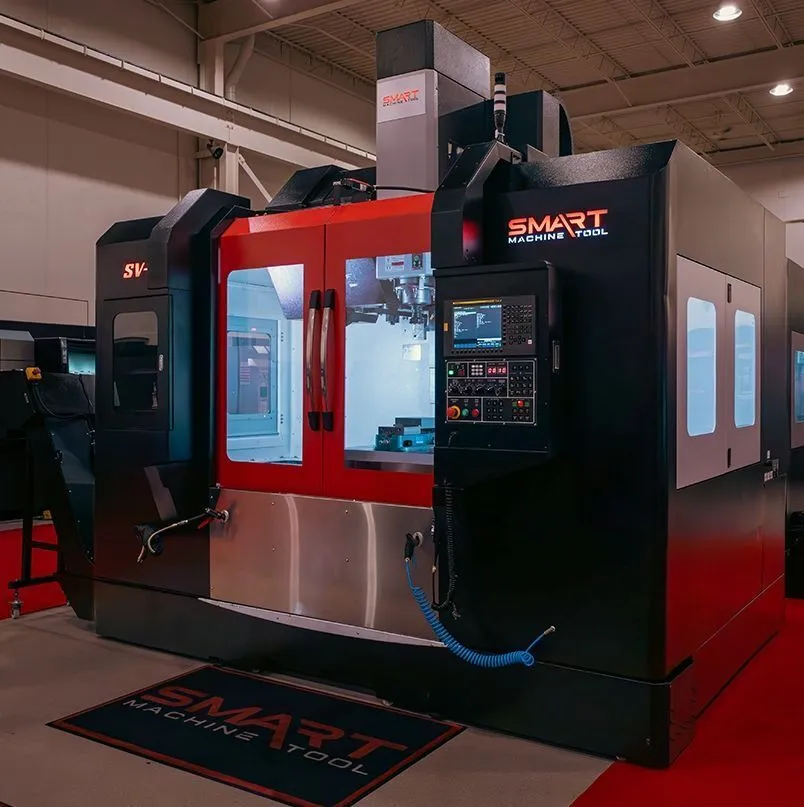

NEW SMART MACHINE TOOL SV 4
Overview
Cat 40 Big Plus Spindle
51"x25" Travels
30 Position Automatic Tool Changer
1181 ipm Rapid Traverse Rate
Specs
SV 4
CAPACITY
X axis travel 51.18”
Y axis travel 25.59”
Z axis travel 23.62”
Table size 57.09” x 23.62”
Table loading capacity 2,205 lbs.
SPINDLE
Distance from table top to spindle nose 5.51” – 29.13”
Distance from Z axis telescopic cover to spindle center 25.67”
Spindle taper CAT40 (BIG PLUS)
Spindle speed 12,000 rpm
AC Spindle motor 20/25 hp
Spindle Torque (30 min) 89 ft.-lbs.
AUTO TOOL CHANGER
Magazine capacity 30
Tool shank CAT40 (BIG PLUS)
FEED RATE
Rapid traverse (X / Y / Z) 1,181 ipm
Cutting feedrate ipm 394 ipm
Slide Ways Linear Way
COOLANT TANKS
Front Tank Capacity 44.91 gallons
Side Tank Capacity 68.68 gallons
GENERAL
Floor space (L x W) (including conveyor) 169.09” x 93.6692.52”
CNC Model Fanuc 0i-MF Plus (15” screen)
Equipped With
30 Tools Double Arm ATC
Full Enclosed Splash Guard
Coolant Bed Flush
Rigid Tapping
Big Plus Spindle
Manual Guide i
Lift Up Conveyor
Add $5000 for the Smart Value Package as Follows:
Renishaw Receiver and GUI software
280 PSI CTS
Air Thru Spindle
4 Axis Preparation
Coolant/Air Gun
Spindle Oil Cooler
High Speed Machining, 200 Look Ahead
