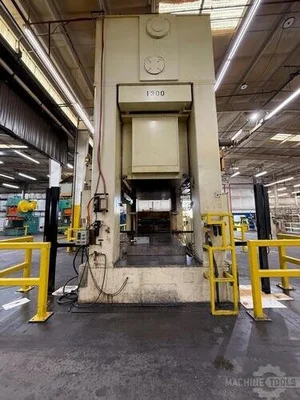

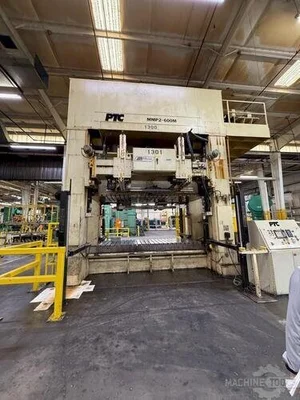

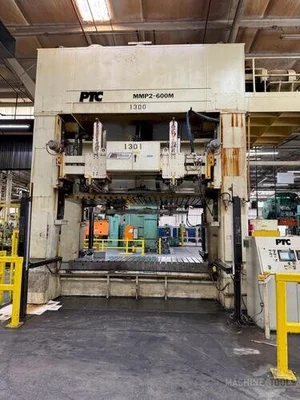

USED 2003 PTC PRESS MMP2-600M

600 ton PTC Transfer / Progressive Die Press Model MMP2-600M Straight Side Mechanical Press For Sale, Year 2003

Tonnage: 600
Stroke: 22 inches
Shut Height: 54 inches
Adjustment: 12 inches
Bed Size: 144" LR x 60" FB
Ram Area: 144" LR x 60 FB
SPM: 15-35

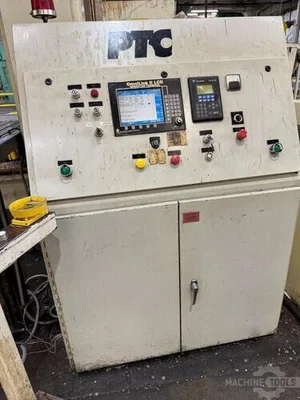

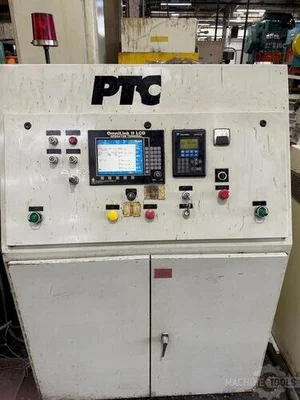

Preliminary Specifications600 - Metric Ton Metal Stamping Press660 - US Ton CapacityPTC Press Model MMP2-600MTransfer Press and Progressive Stamping Press22" Stroke54" Shut Height45" Shut Height over Bolster12" Motorized Adjustment144" LR x 60" FB Bed Area144" LR x 60" FB Slide Area15-35 VSPMEquipment and FeaturesAir Clutch and BrakeAir CounterbalancesRecirculating Lube SystemT-Slotted Ram and BolsterAllen Bradley Variable Speed Drive70" Wide WindowsHeavy Duty Construction9" Thick Bolster PlateOmni Link II LCD Press ControlsAtlas Technologies Servo Transfer - With Allen Bradley ControlsOverall Height 21' 3" Floor to Top of MotorCan be seen under power upon request in the plant! A PTC 660-ton mechanical transfer press, such as the Model MMP2-600M, is an industrial machine used for high-volume metal stamping and forming. These presses are known for their speed and precision, using a series of dies to perform multiple operations on a single part in one continuous cycle. With a 660-ton capacity, they are capable of handling heavy-duty applications. The "transfer" feature automates the movement of the workpiece between stations, increasing efficiency and reducing labor costs.  In addition to being efficient, the transfer feature ensures part consistency by minimizing manual handling and potential errors. This type of press is commonly used in the automotive and appliance industries to produce complex parts like vehicle body panels or washing machine tubs. The advanced control systems on modern presses allow for precise management of speed, force, and timing.
