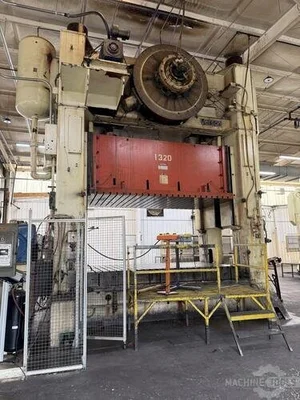

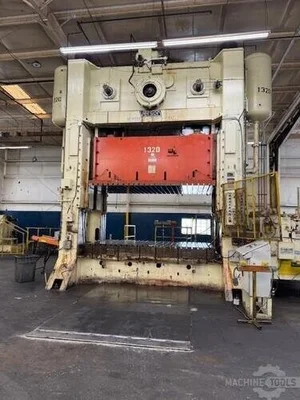

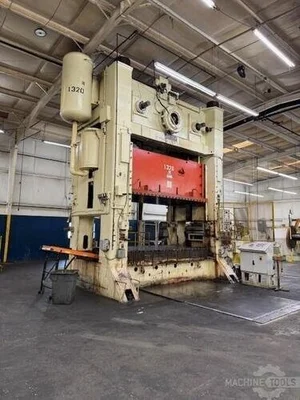

USED 1978 VERSON PRESS S4-1000-144-84T

1000 ton Verson S4-1000-144-84T Straight Side Mechanical Stamping Press For Sale

Tonnage: 1000
Stroke: 20 inches
Shut Height: 60 inches
Adjustment: 14 inches
Bed Size: 144" x 84" FB
Ram Area: 144" LR x 84" FB
SPM: 13-26 VSPM

Preliminary Specifications1000 ton Verson Metal Stamping PressStraight Side Double Crank Mechanical Press Model S4-1000-144-84T1000 - ton Capacity 20" Stroke60" Shut Height14" Motorized Adjustment144" LR x 84" FB Bed Area144" LR x 84" FB Slide Area13-26 VSPMEquipment and FeaturesAir Clutch and Brake Air CounterbalancesRecirculating Lube SystemT-Slotted Ram and Bolster Wintriss Die ProtectionWintriss Tonnage MonitorWintriss Programmable Out PutsKnockouts in Ram60" Wide Windows 12" Thick Bolster PlateMotor and ControlsOverall Height Above the Floor 21' 3" tallCan be seen under power in a plant!  Click the link below for a video of the press running.1000 ton Verson Press S4-1000-144-84t VideoThe Verson S4-1000-144-84T is a powerful 1000-ton mechanical metal stamping press. As a straight-side, four-point press, it is designed for precision and stability during heavy-duty operations. The "S4" in its model name signifies it has four-point suspension, which distributes the force evenly across the large bed area of 144 by 84 inches. With a stroke of 20 inches, it is capable of handling deep draw stamping applications. It operates at a variable speed, making it adaptable to different production needs. Maximize production with the robust 1000 Ton Verson S4-1000 straight side mechanical press. Engineered for the most demanding heavy-duty stamping and metalforming operations, the Verson S4-1000 series is the benchmark for large-scale production reliability. This powerful four-point press boasts massive capacity, delivering an uncompromising 1000 tons of force essential for working with thick gauge or high-strength steel.
The expansive 144-inch by 84-inch area provides the necessary tooling space for complex progressive die stamping and large deep draw applications, making it an ideal choice for the automotive stamping industry and major appliance manufacturers. As a highly sought-after piece of industrial metalforming equipment, the Verson S4-1000 is known for its rigid construction, which ensures superior slide parallelism and minimal deflection, protecting your valuable tooling and guaranteeing high-precision part output.
Whether you require a dedicated production line workhorse or a high-capacity machine for contract metal stamping, investing in this class of high-tonnage mechanical press secures your long-term manufacturing capabilities. Inquire about available used Verson press models today to boost your operational capacity.
